TB6512AFG データシート

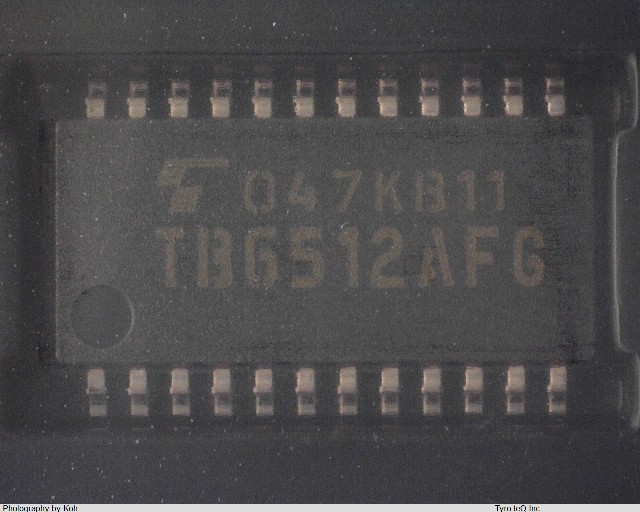

Name: TB6512AFG
Brand: TOSHIBA
SKU: 300283415-0000-0000-0000

TB6512AFG - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | モータドライバIC

TB6512AFG の詳細情報

型番	TB6512AFG
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Analog IC - Other Type	STEPPER MOTOR CONTROLLER
JESD-30 Code	R-PDSO-G24
Length	13 mm
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	115 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	0.12 A
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SOP24,.3,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3,5 V
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Motion Control Electronics
Supply Current-Max (Isup)	9 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6 mm
