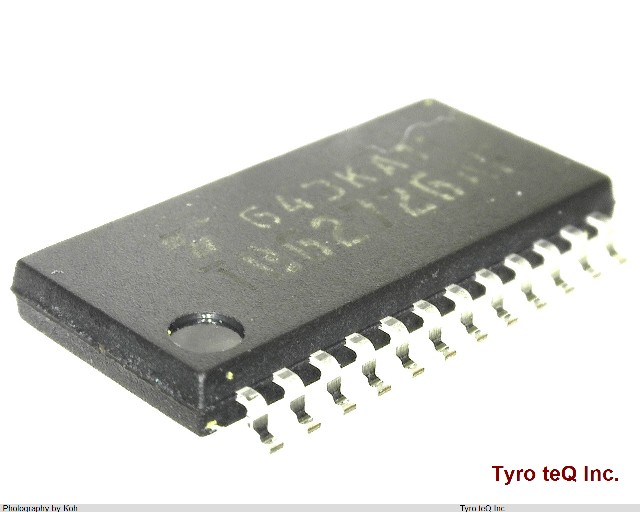

TB62726AF データシート

Name: TB62726AF
Brand: TOSHIBA
SKU: 300016338-0000-0000-0000

TB62726AF - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

汎用リニアIC | LEDディスプレイ用/アミューズメント用/ LCDバックライト用

TB62726AF の詳細情報

型番	TB62726AF
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	SERIAL
Display Mode	SEGMENT
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e4
Length	13 mm
Multiplexed Display Capability	NO
Number of Functions	1
Number of Segments	16
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SOP24,.3,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Display Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6 mm
fmax-Min	20 MHz
