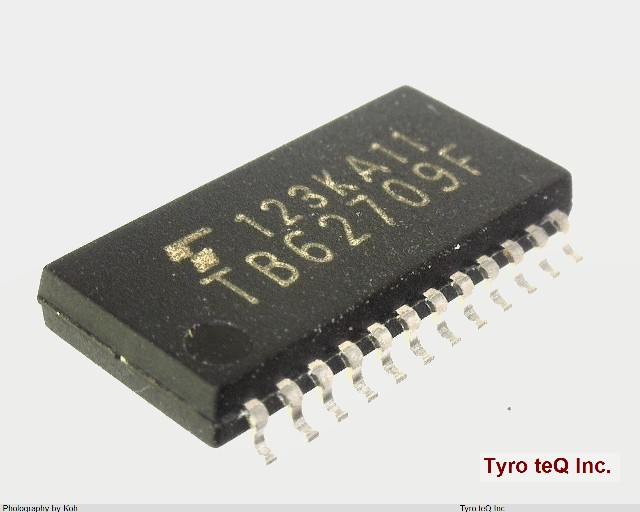

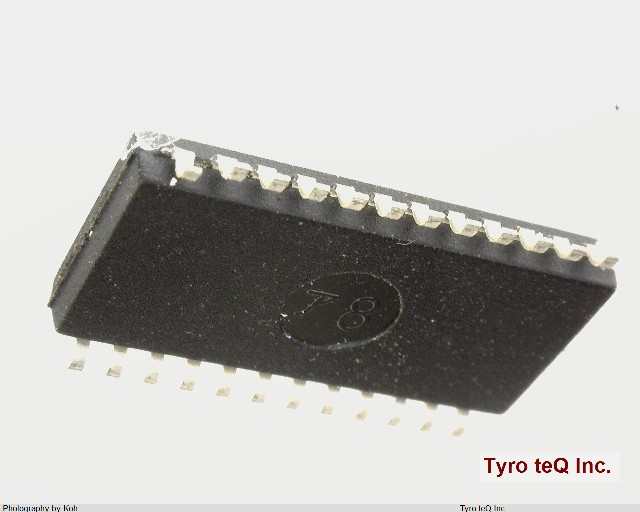

TB62709F データシート

Name: TB62709F
Brand: TOSHIBA
SKU: 300222085-0000-0000-0000

TB62709F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | LEDディスプレイ用/アミューズメント用/ LCDバックライト用

TB62709F の詳細情報

型番	TB62709F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	SERIAL
Display Mode	DIGIT
Input Characteristics	STANDARD
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	13 mm
Multiplexed Display Capability	YES
Number of Digits/Characters	4-DIGIT
Number of Functions	1
Number of Segments	8
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SOP24,.3,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	Display Drivers
Supply Current-Max	20.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	6 V
Supply Voltage1-Min	4 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Width	6 mm
fmax-Min	10 MHz
