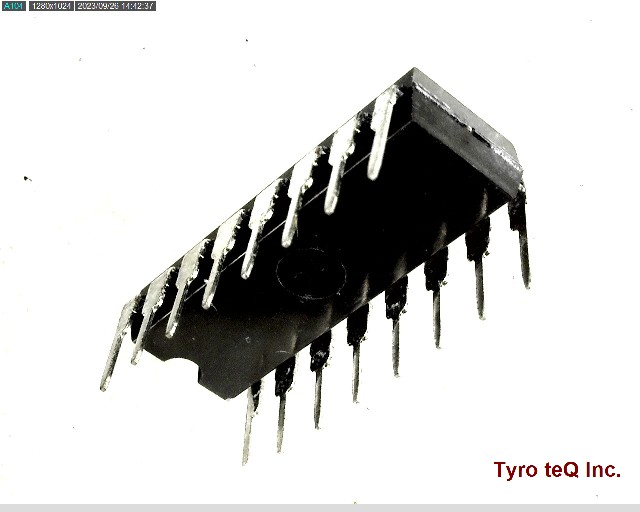

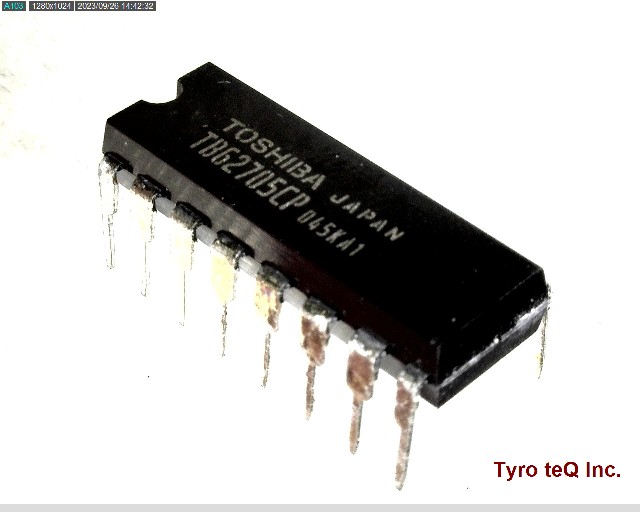

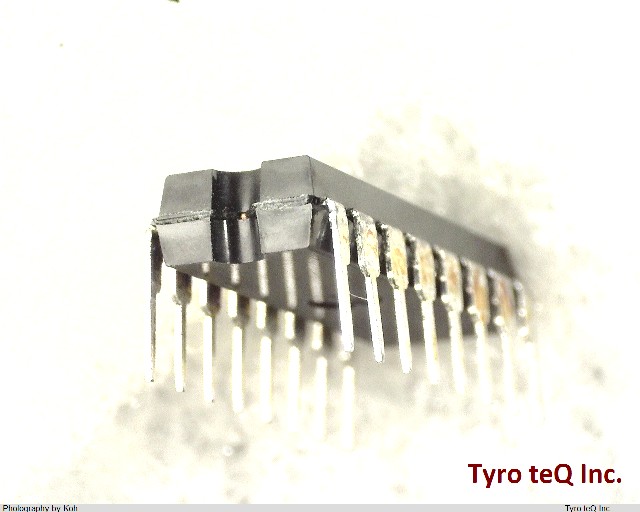

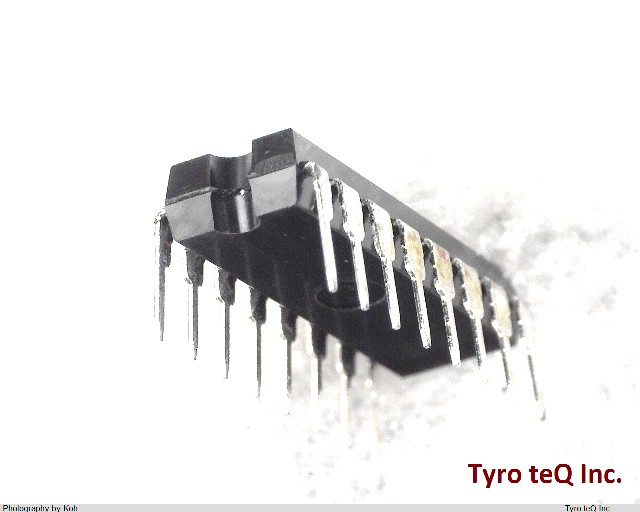

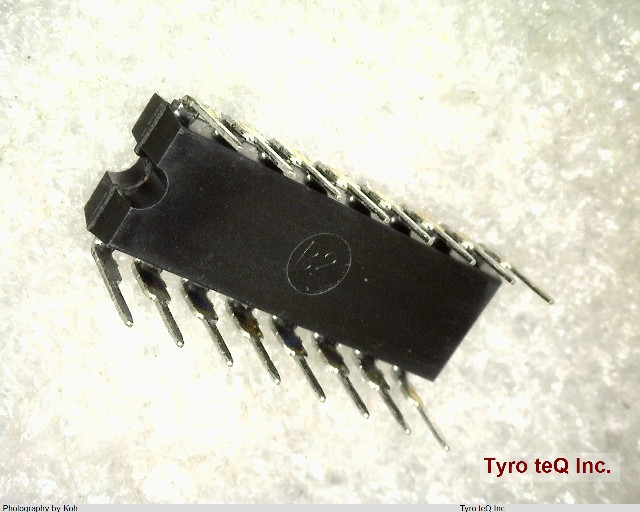

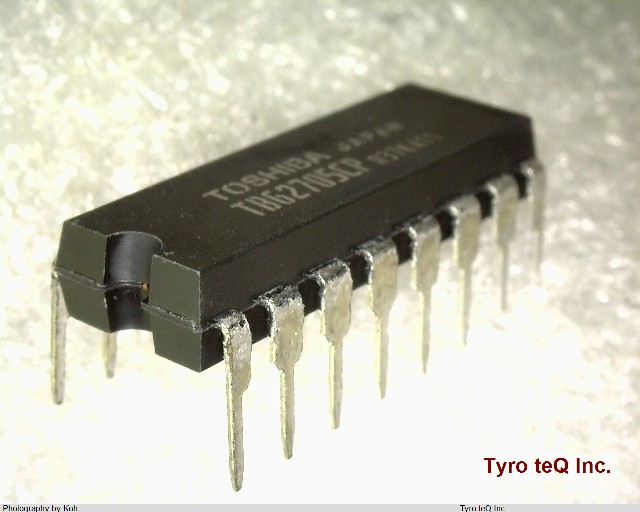

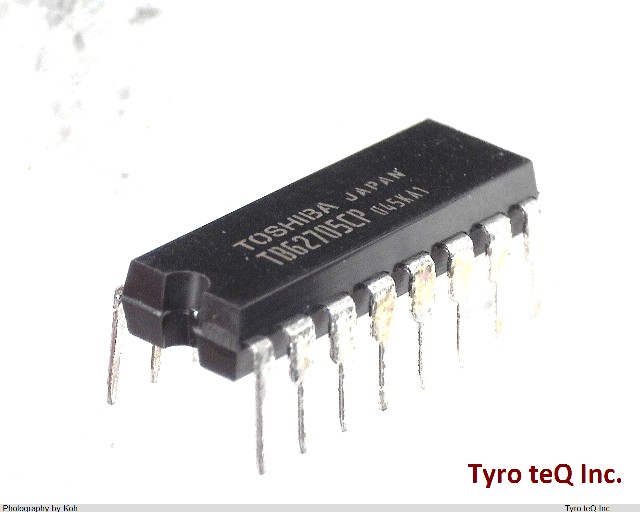

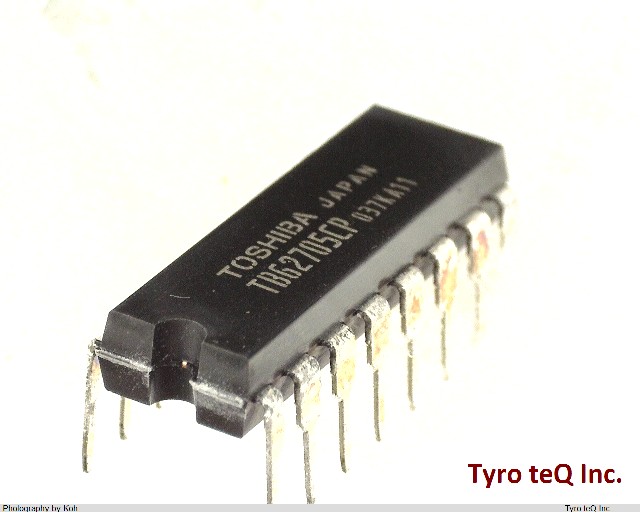

TB62705CP データシート

Name: TB62705CP
Brand: TOSHIBA
SKU: 300241168-0000-0000-0000

TB62705CP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | LEDディスプレイ用/アミューズメント用/ LCDバックライト用

TB62705CP の詳細情報

型番	TB62705CP
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	SERIAL
Display Mode	SEGMENT
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Multiplexed Display Capability	NO
Number of Functions	1
Number of Segments	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Display Drivers
Supply Current-Max	32 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
fmax-Min	15 MHz
