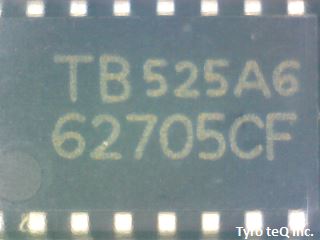

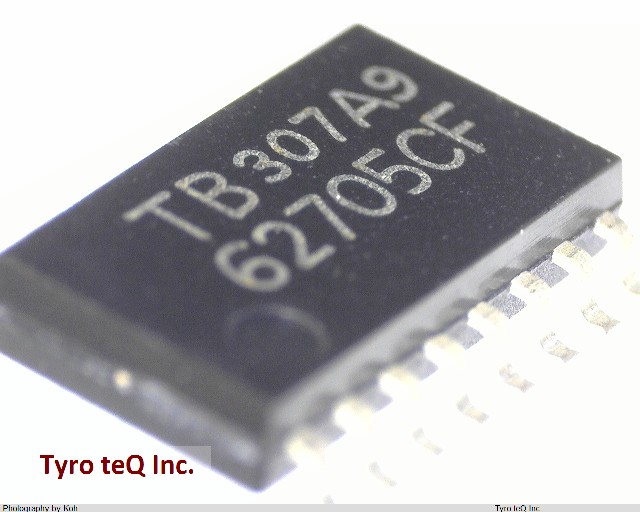

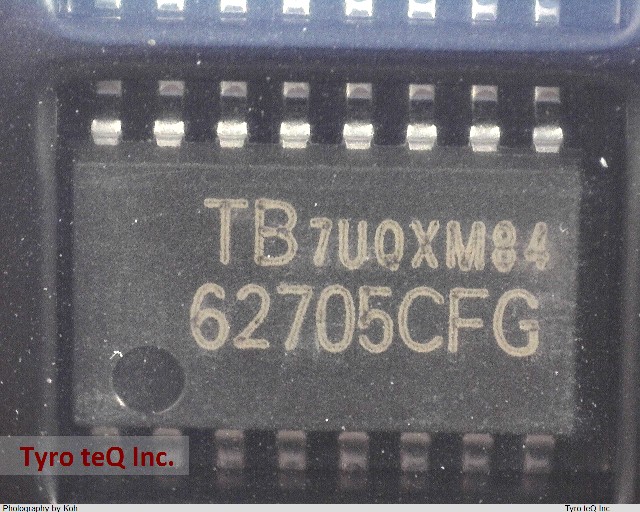

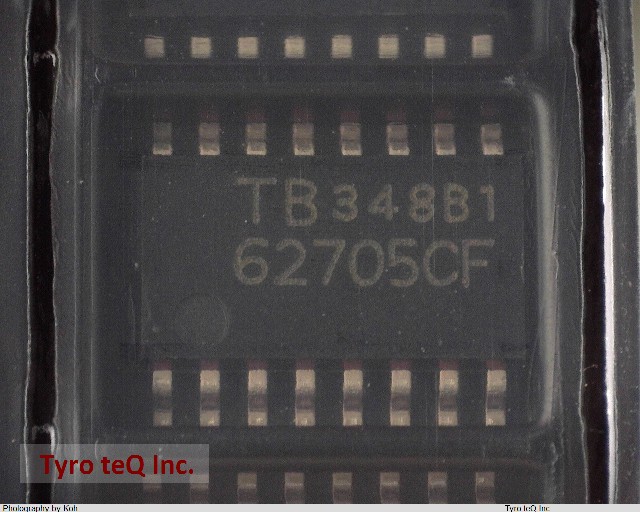

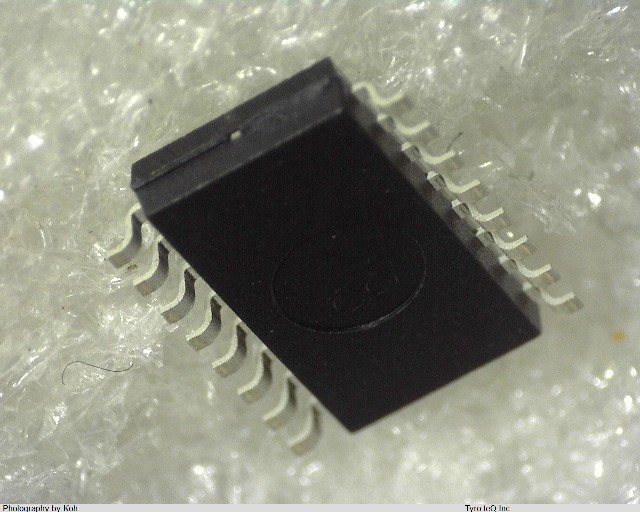

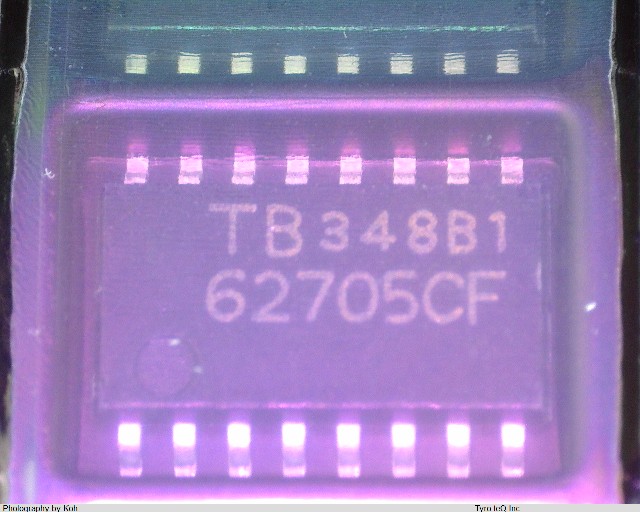

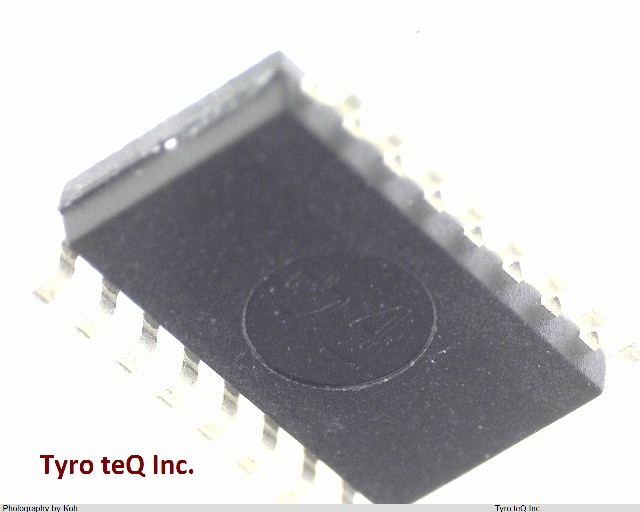

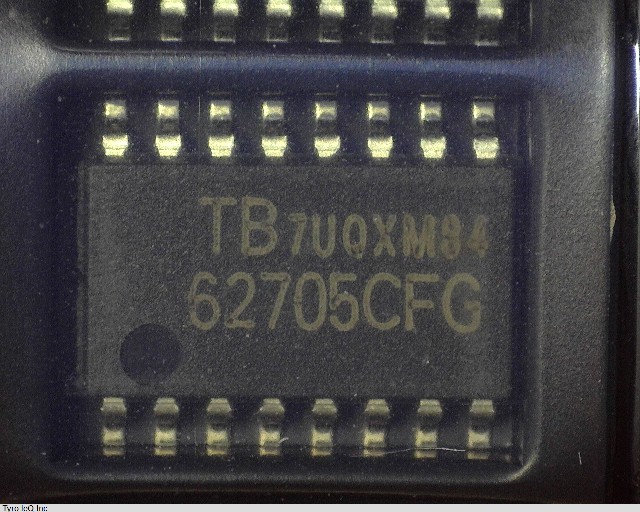

TB62705CF データシート

Name: TB62705CF
Brand: TOSHIBA
SKU: 300016327-0000-0000-0000

TB62705CF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | LEDディスプレイ用/アミューズメント用/ LCDバックライト用

TB62705CF の詳細情報

型番	TB62705CF
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	SERIAL
Display Mode	SEGMENT
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Multiplexed Display Capability	NO
Number of Functions	1
Number of Segments	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP16,.25,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Display Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Width	4.4 mm
fmax-Min	15 MHz
