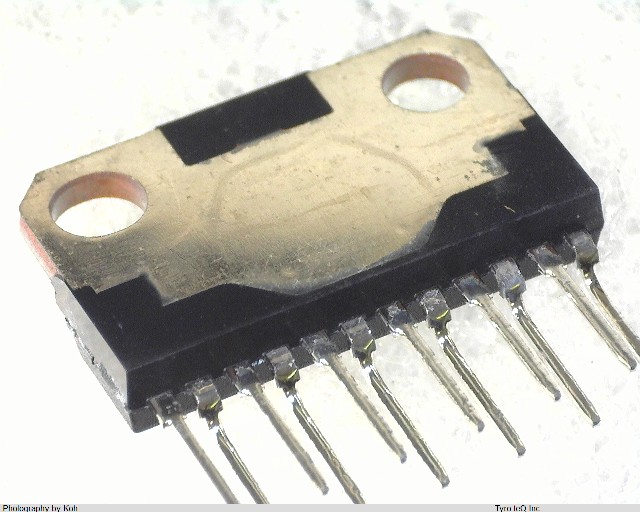

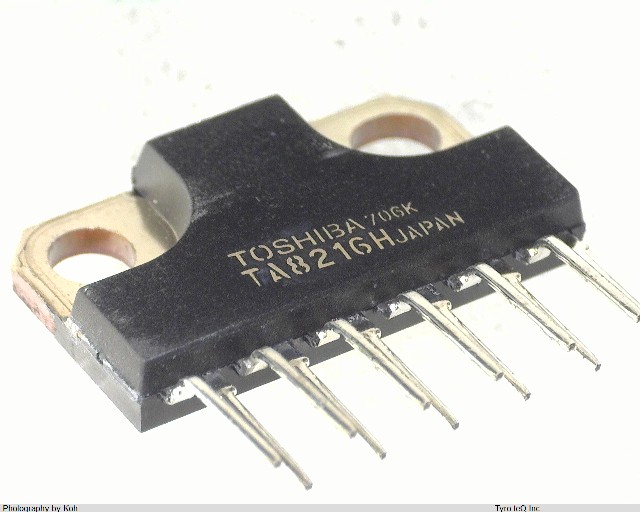

TA8216H データシート

Name: TA8216H
Brand: TOSHIBA
SKU: 300015616-0000-0000-0000

TA8216H - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA8216H の詳細情報

型番	TA8216H
メーカー	TOSHIBA
データシート
Bandwidth-Nom	20 kHz
Consumer IC Type	AUDIO AMPLIFIER
Gain	34 dB
Harmonic Distortion	10 %
JESD-30 Code	R-PZFM-T12
JESD-609 Code	e0
Number of Channels	2
Number of Functions	1
Number of Terminals	12
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Power-Nom	13 W
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP12,.08,.1,70TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	28 V
Qualification Status	Not Qualified
Sub Category	Audio/Video Amplifiers
Supply Current-Max	105 mA
Supply Voltage-Max (Vsup)	37 V
Supply Voltage-Min (Vsup)	10 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.78 mm
Terminal Position	ZIG-ZAG
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
