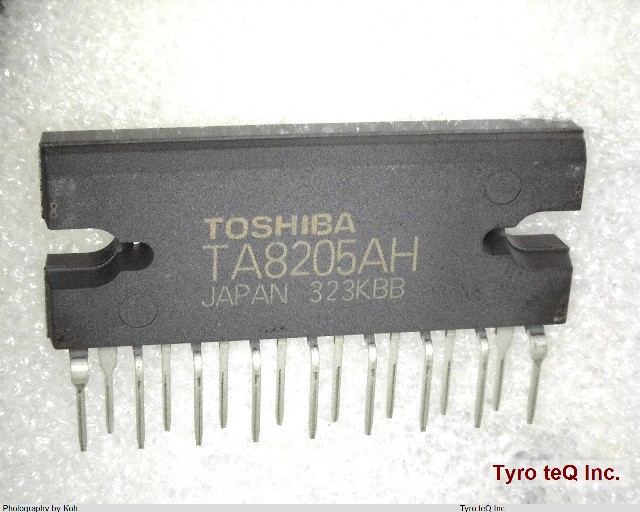

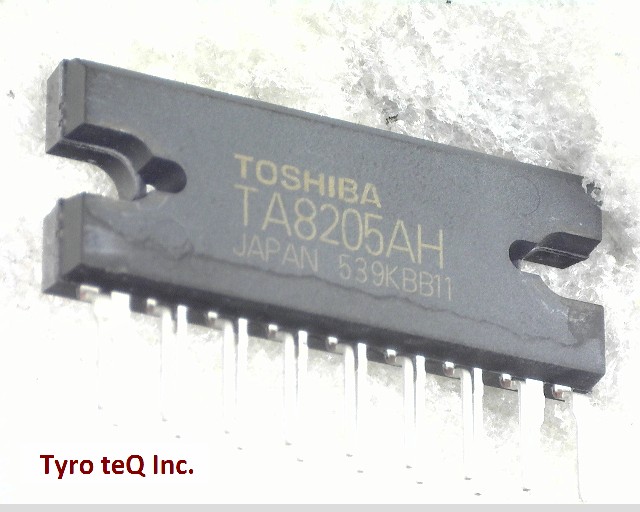

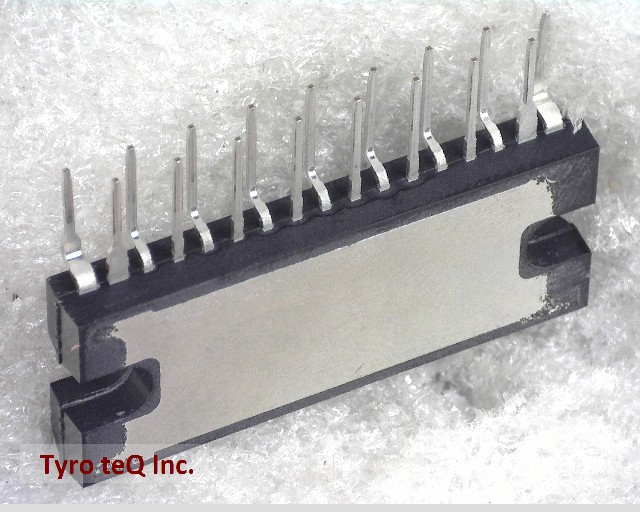

TA8205AH データシート

Name: TA8205AH
Brand: TOSHIBA
SKU: 300003549-0000-0000-0000

TA8205AH - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA8205AH の詳細情報

型番	TA8205AH
メーカー	TOSHIBA
データシート
Bandwidth-Nom	20 kHz
Consumer IC Type	AUDIO AMPLIFIER
Gain	50 dB
Harmonic Distortion	10 %
JESD-30 Code	R-PZFM-T17
JESD-609 Code	e0
Number of Channels	2
Number of Functions	1
Number of Terminals	17
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Power-Nom	18 W
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP17,.08,.1,80
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	13.2 V
Qualification Status	Not Qualified
Sub Category	Audio/Video Amplifiers
Supply Current-Max	250 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	9 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2 mm
Terminal Position	ZIG-ZAG
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
