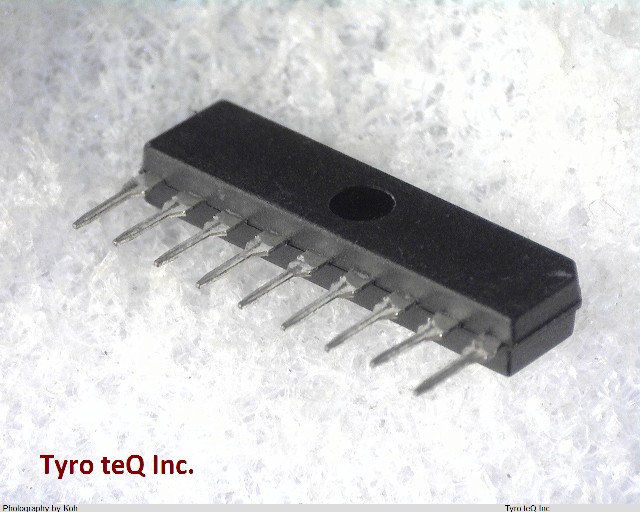

TA8029S データシート

Name: TA8029S
Brand: TOSHIBA
SKU: 300015512-0000-0000-0000

TA8029S - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

車載用デバイス | 車載用Hブリッジドライバ

TA8029S の詳細情報

型番	TA8029S
メーカー	TOSHIBA
種別	車載用デバイス
データシート
Converter Type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 Code	R-PSIP-T9
JESD-609 Code	e0
Length	22.28 mm
Number of Functions	1
Number of Terminals	9
Operating Frequency-Max	0.005 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP9,.1
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Positive Input Voltage-Max	4.5 V
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	7.9 mm
Sub Category	Analog Special Function Converters
Supply Current-Max	5 mA
Supply Voltage-Max	6.5 V
Supply Voltage-Min	5.5 V
Supply Voltage-Nom	6 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Width	3.2 mm
