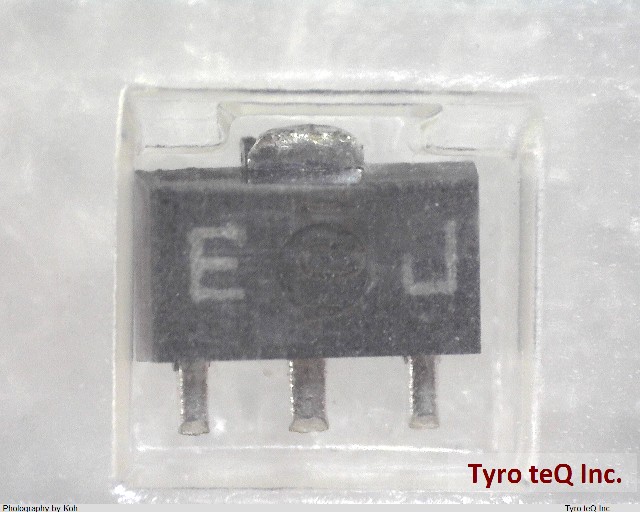

TA79L10F(TE12L) データシート

Name: TA79L10F(TE12L)
Brand: TOSHIBA
SKU: 300368497-0000-0000-0000

TA79L10F(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

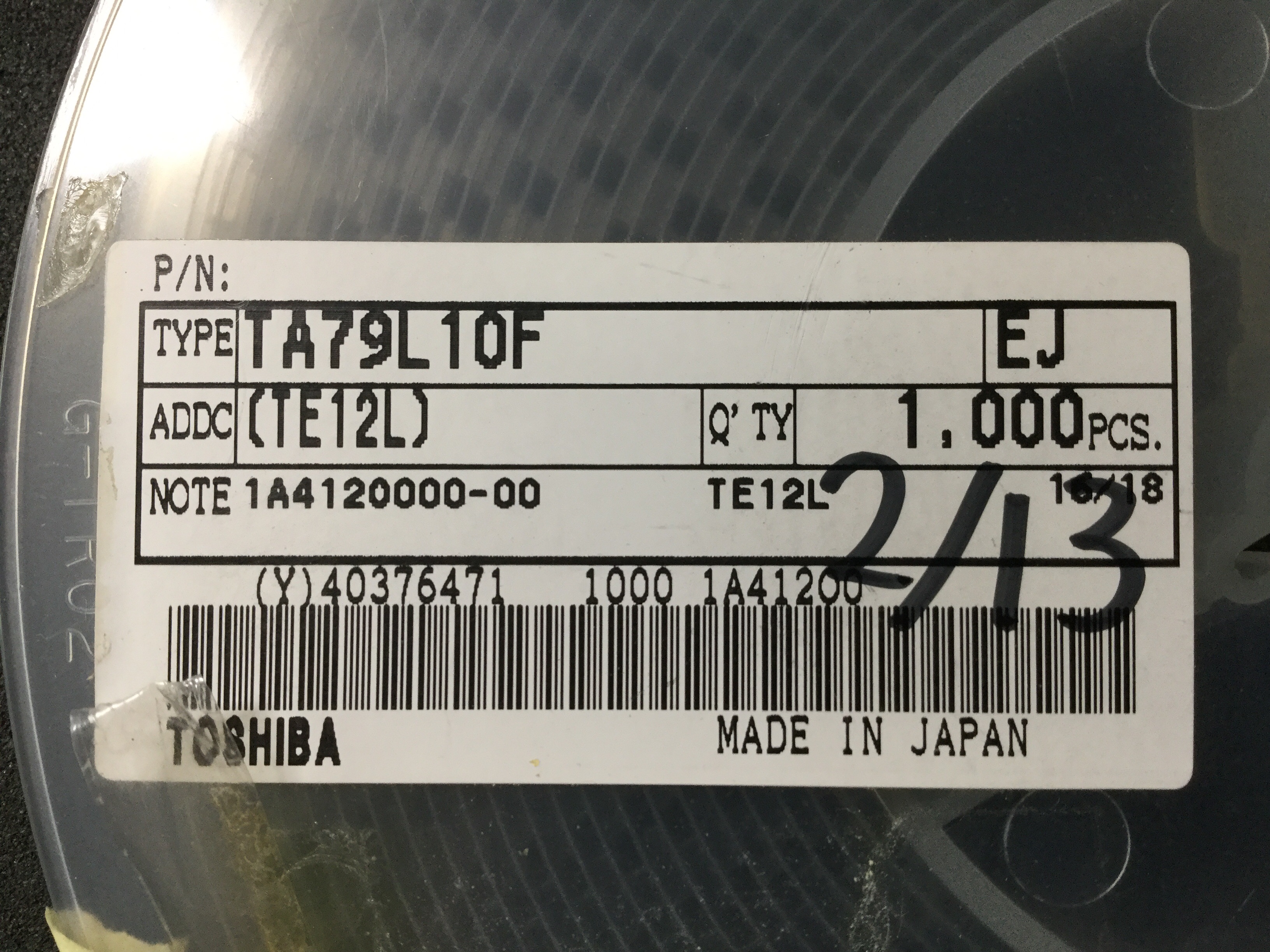

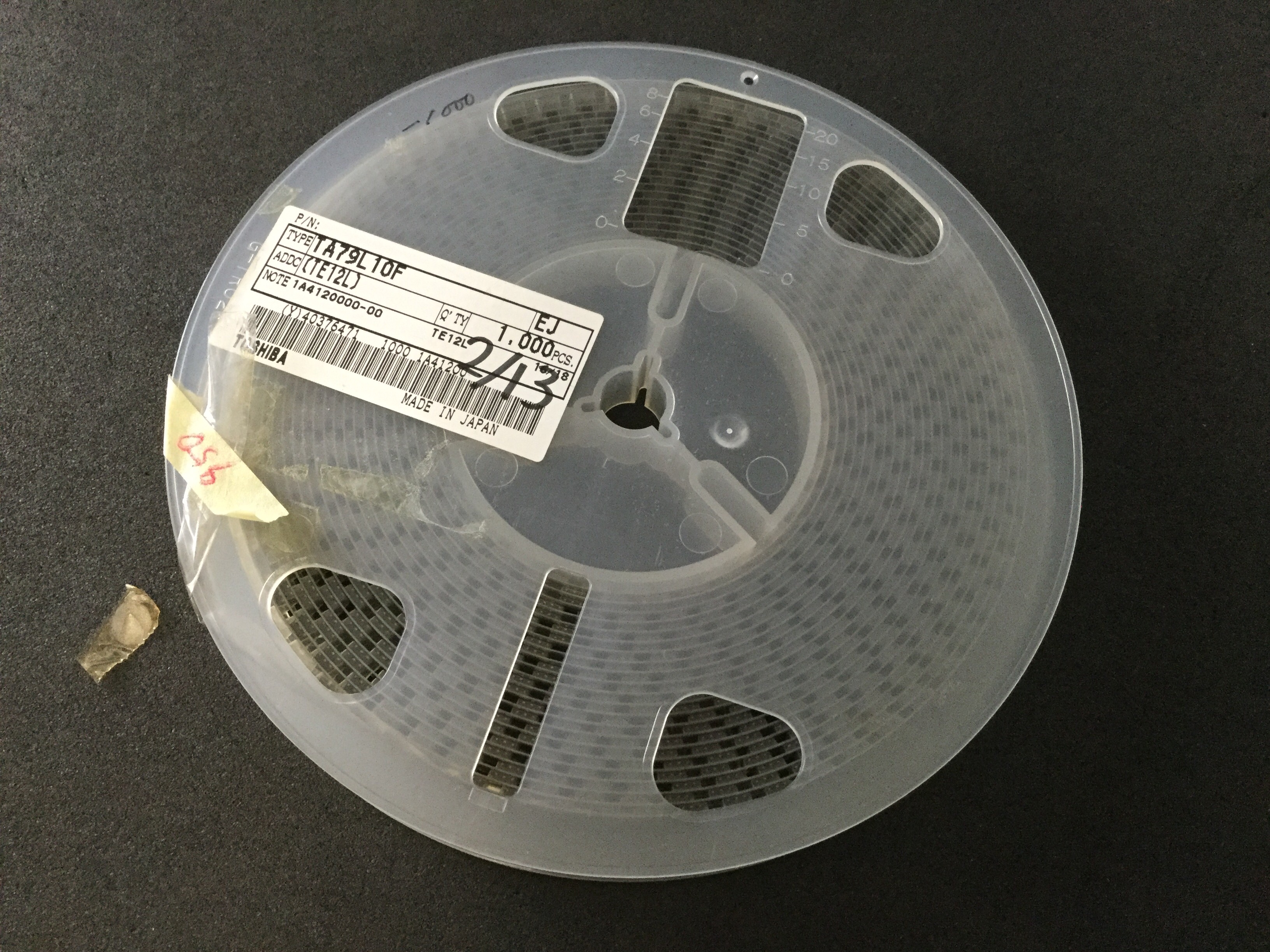

TE12L:12mm幅テーピング

TA79L10F(TE12L) の詳細情報

型番	TA79L10F(TE12L)
メーカー	TOSHIBA
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.7 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	25 V
Input Voltage-Min	12.5 V
JESD-30 Code	R-PSSO-F3
JESD-609 Code	e2
Length	4.5 mm
Line Regulation-Max	0.23 %
Load Regulation-Max	0.19 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.07 A
Output Voltage1-Max	10.5 V
Output Voltage1-Min	9.5 V
Output Voltage1-Nom	-10 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	TO-243
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.6 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Tin/Silver (Sn/Ag)
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	5 %
Width	2.5 mm
