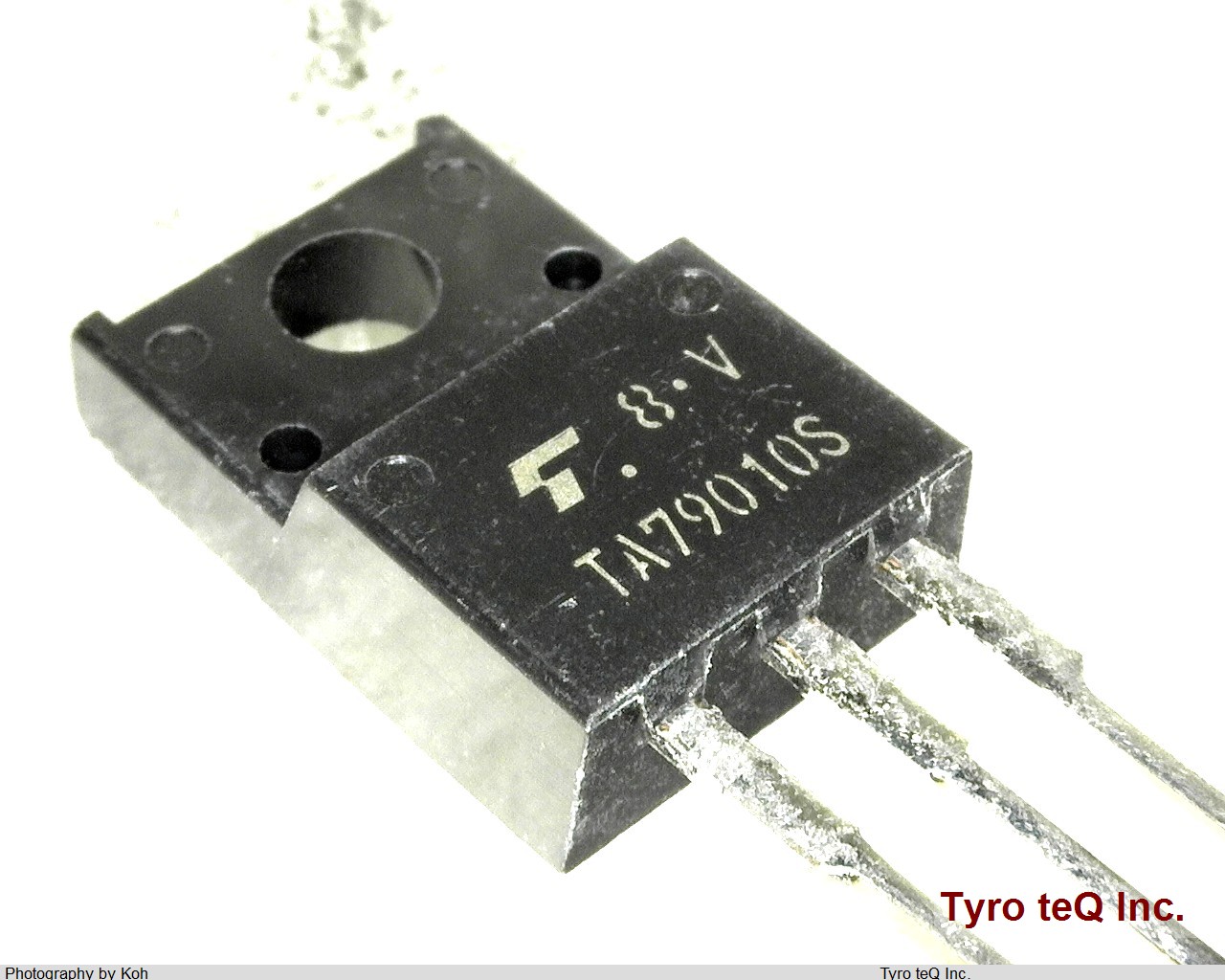

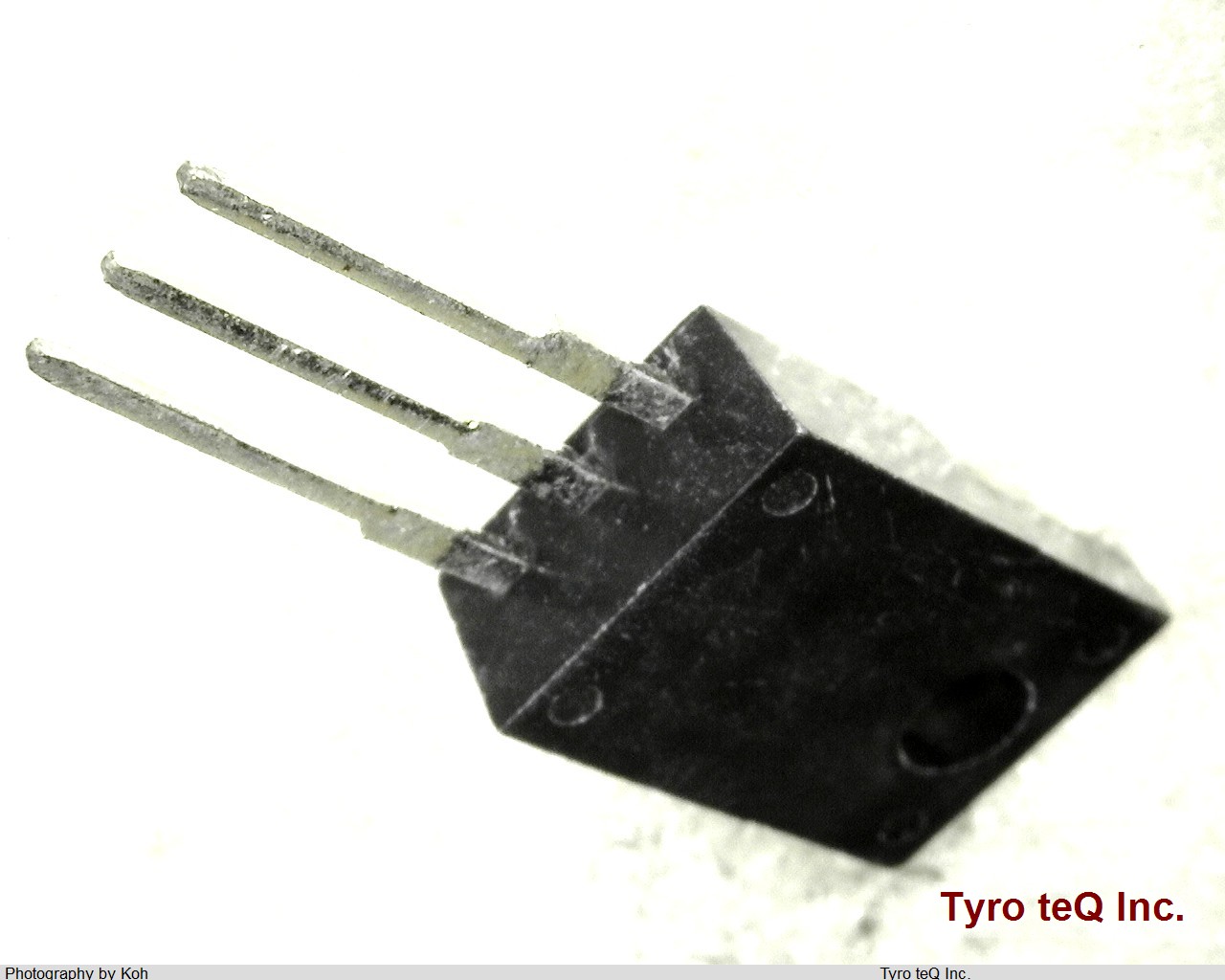

TA79010S データシート

Name: TA79010S
Brand: TOSHIBA
SKU: 300241130-0000-0000-0000

TA79010S - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

TA79010S の詳細情報

型番	TA79010S
メーカー	TOSHIBA
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	2 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	27 V
Input Voltage-Min	12.5 V
JESD-30 Code	R-PSFM-T3
Length	10 mm
Line Regulation-Max	0.18 %
Load Regulation-Max	0.18 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	10.5 V
Output Voltage1-Min	9.5 V
Output Voltage1-Nom	10 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	15.1 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.5 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	4 %
Width	4.5 mm
