TA78M12F(TE16L) データシート

Name: TA78M12F(TE16L)
Brand: TOSHIBA
SKU: 300000782-0000-0000-0000

TA78M12F(TE16L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

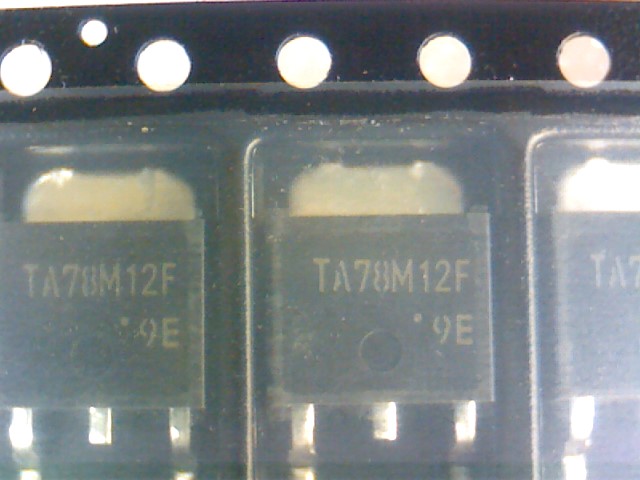

TE16L:16mm幅テーピング

TA78M12F(TE16L) の詳細情報

型番	TA78M12F(TE16L)
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Input Voltage-Max	30 V
Input Voltage-Min	14.5 V
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e0
Length	6.5 mm
Number of Functions	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	12.5 V
Output Voltage1-Min	11.4 V
Output Voltage1-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	2.7 mm
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.5 mm
