TA78M05F(Q) データシート

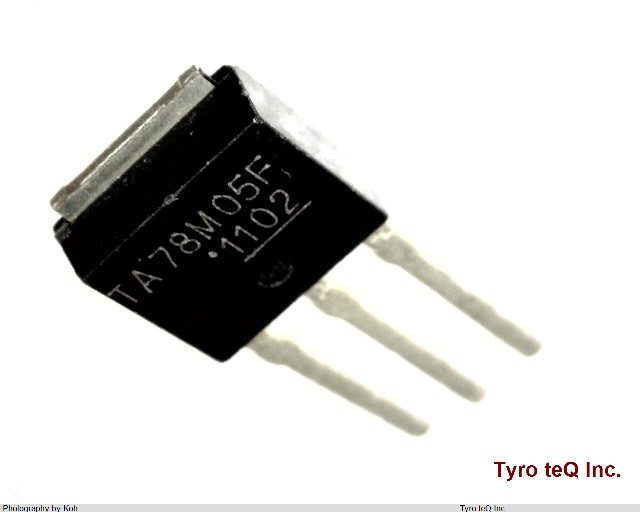

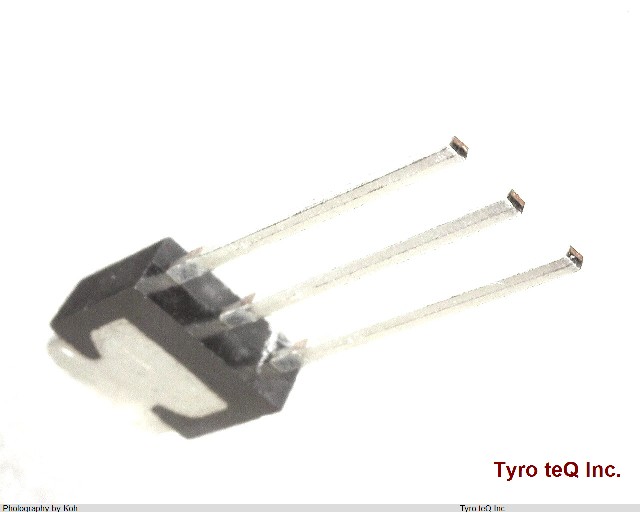

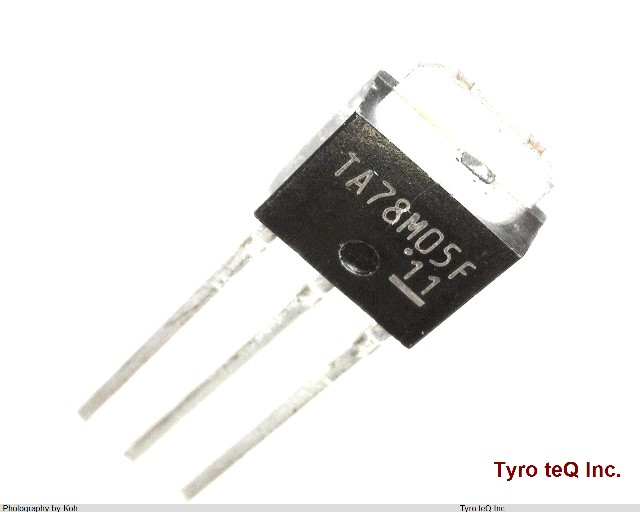

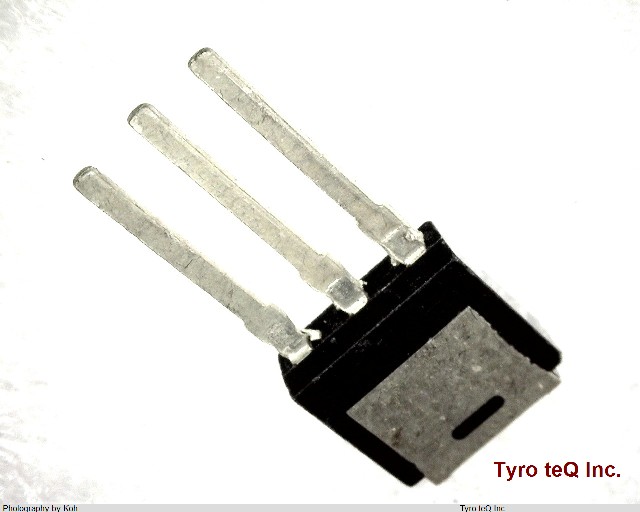

Name: TA78M05F(Q)
Brand: TOSHIBA
SKU: 300221608-0000-0000-0000

TA78M05F(Q) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

Q:端子のみ鉛,ハロゲンフリー品

TA78M05F(Q) の詳細情報

型番	TA78M05F(Q)
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.7 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	25 V
Input Voltage-Min	7 V
JESD-30 Code	R-PSIP-T3
Length	6.8 mm
Line Regulation-Max	0.1 %
Load Regulation-Max	0.1 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	5.25 V
Output Voltage1-Min	4.75 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP3,.04,90TB
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	5 %
