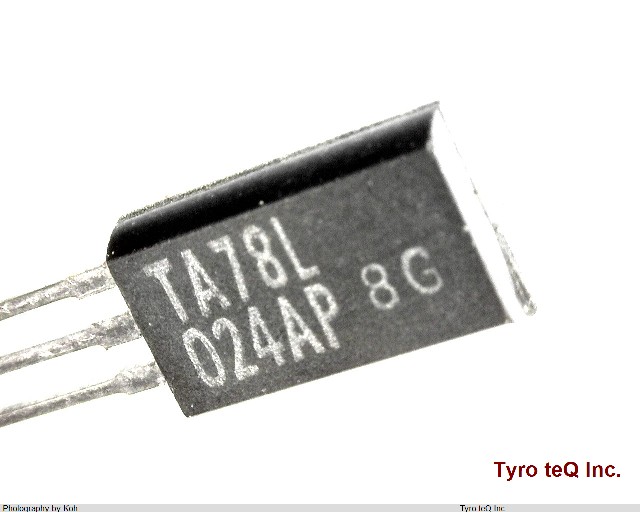

TA78L024AP データシート

Name: TA78L024AP
Brand: TOSHIBA
SKU: 300007206-0000-0000-0000

TA78L024AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA78L024AP の詳細情報

型番	TA78L024AP
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.7 V
Input Voltage Absolute-Max	40 V
Input Voltage-Max	38 V
Input Voltage-Min	27.5 V
JESD-30 Code	O-PBCY-T3
Line Regulation-Max	0.35 %
Load Regulation-Max	0.2 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.07 A
Output Voltage1-Max	25.2 V
Output Voltage1-Min	22.8 V
Output Voltage1-Nom	24 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-92
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Packing Method	AMMO PACK
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	5 %
