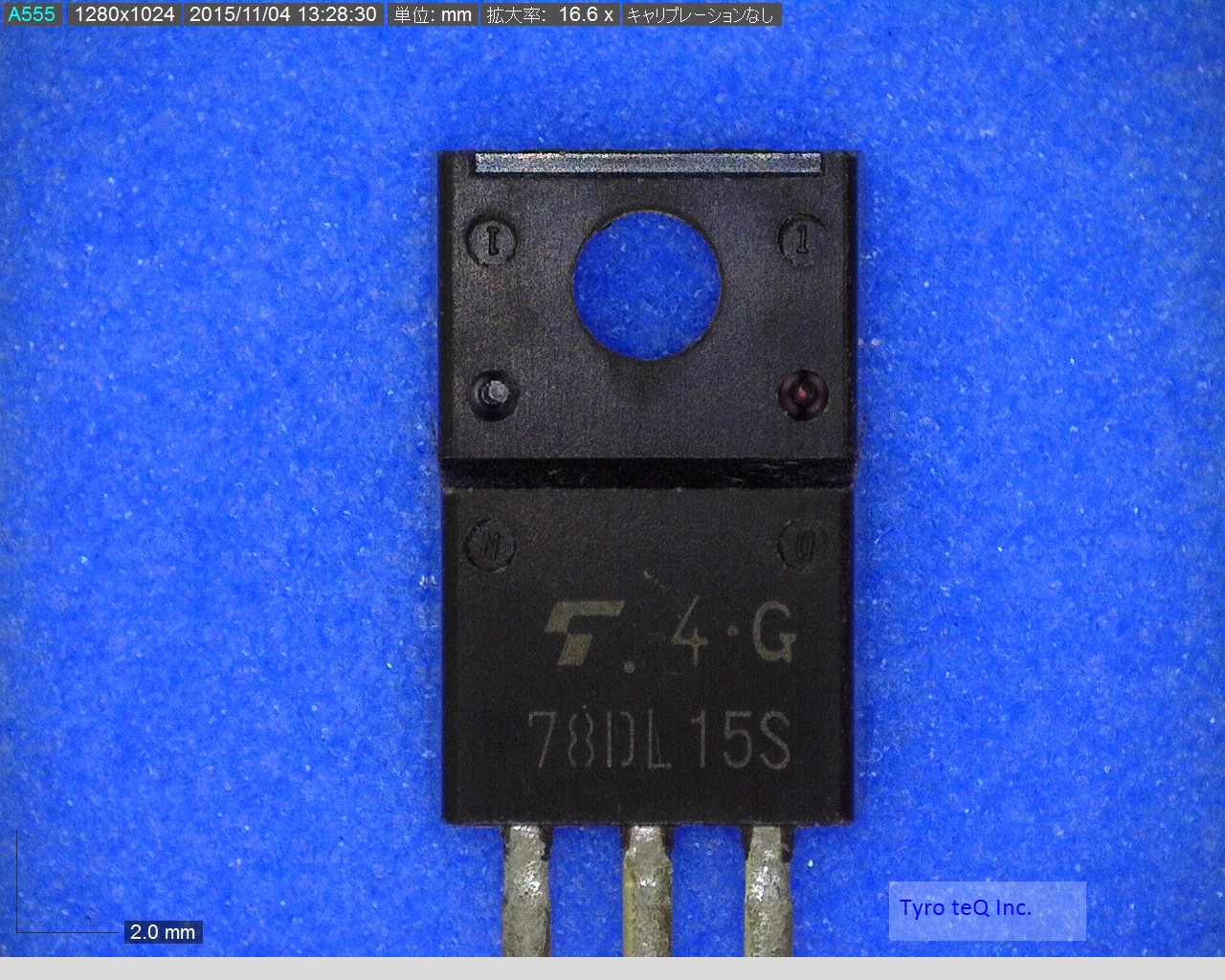

TA78DL15S データシート

Name: TA78DL15S
Brand: TOSHIBA
SKU: 300015452-0000-0000-0000

TA78DL15S - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA78DL15S の詳細情報

型番	TA78DL15S
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.6 V
Dropout Voltage1-Nom	0.4 V
Input Voltage Absolute-Max	29 V
Input Voltage-Max	26 V
Input Voltage-Min	16 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Line Regulation-Max	0.08 %
Load Regulation-Max	0.15 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.25 A
Output Voltage1-Max	16.5 V
Output Voltage1-Min	13.5 V
Output Voltage1-Nom	15 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	10 %
