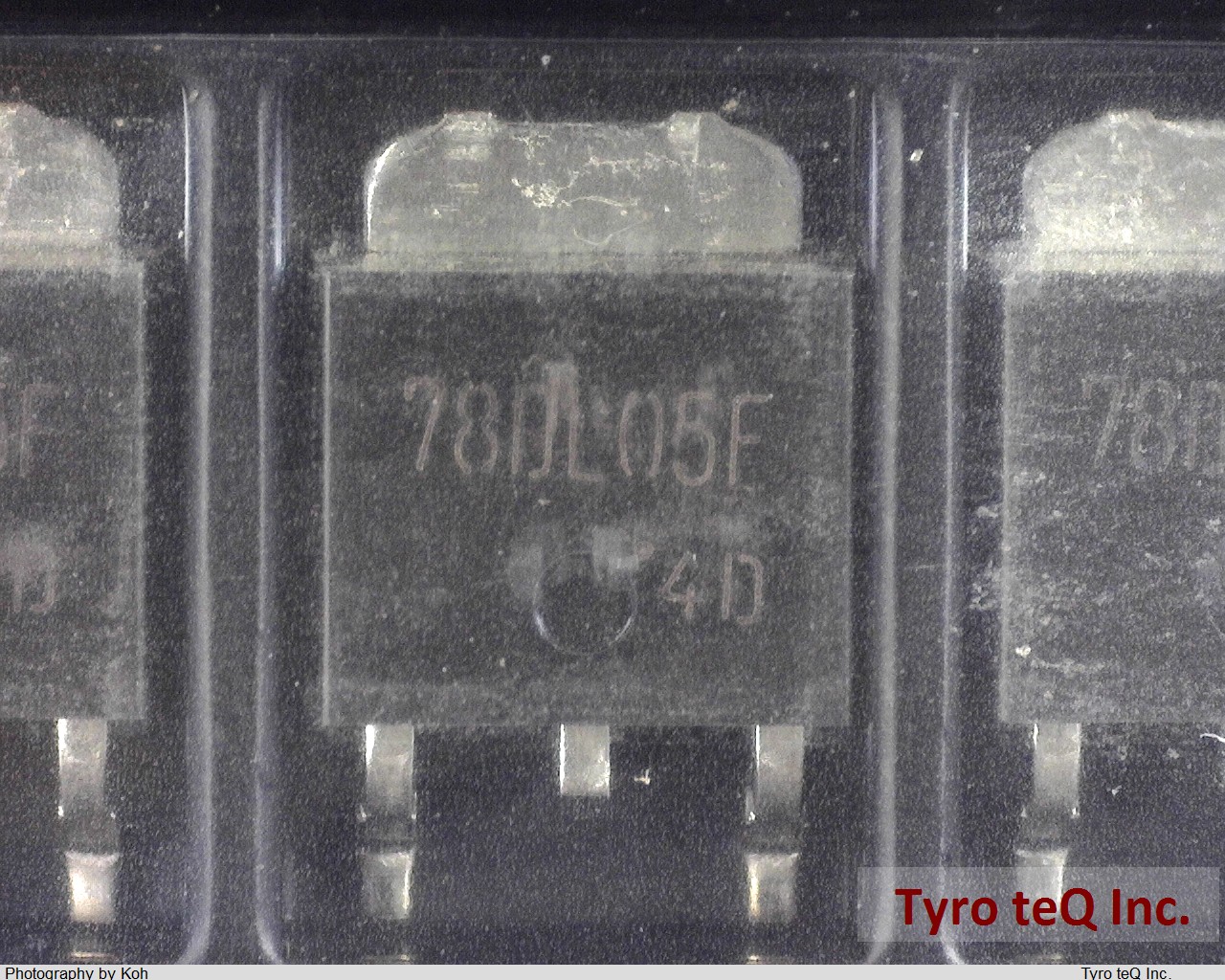

TA78DL05F データシート

Name: TA78DL05F
Brand: TOSHIBA
SKU: 300000582-0000-0000-0000

TA78DL05F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA78DL05F の詳細情報

型番	TA78DL05F
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.6 V
Dropout Voltage1-Nom	0.4 V
Input Voltage Absolute-Max	60 V
Input Voltage-Max	26 V
Input Voltage-Min	6 V
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e0
Line Regulation-Max	0.03 %
Load Regulation-Max	0.05 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	150 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.25 A
Output Voltage1-Max	5.5 V
Output Voltage1-Min	4.5 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP3,.04,90TB
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.7 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	10 %
Width	5.5 mm
