TA7824S データシート

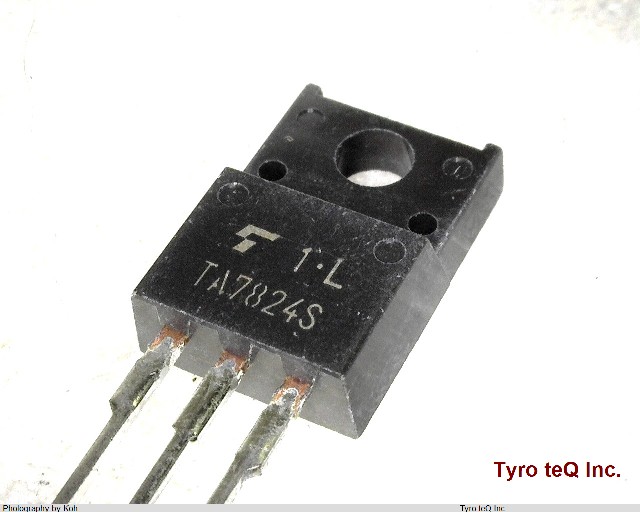

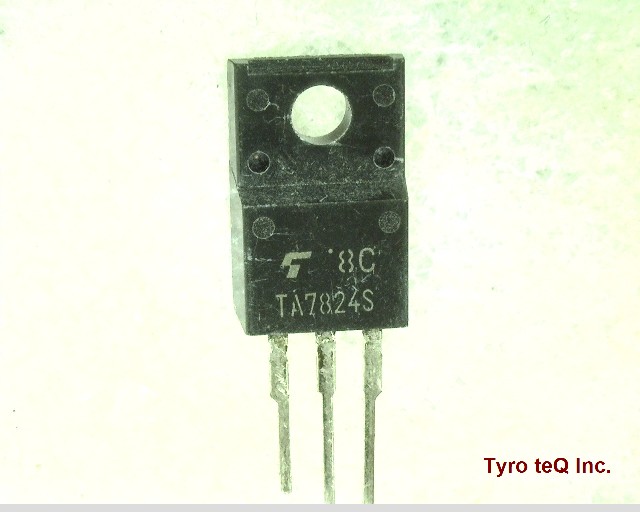

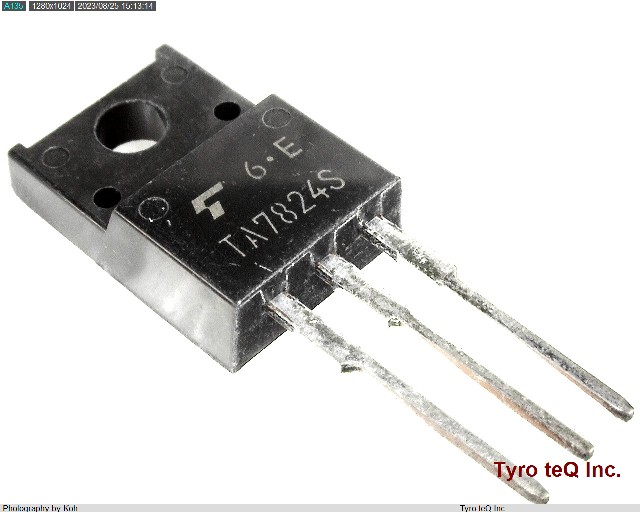

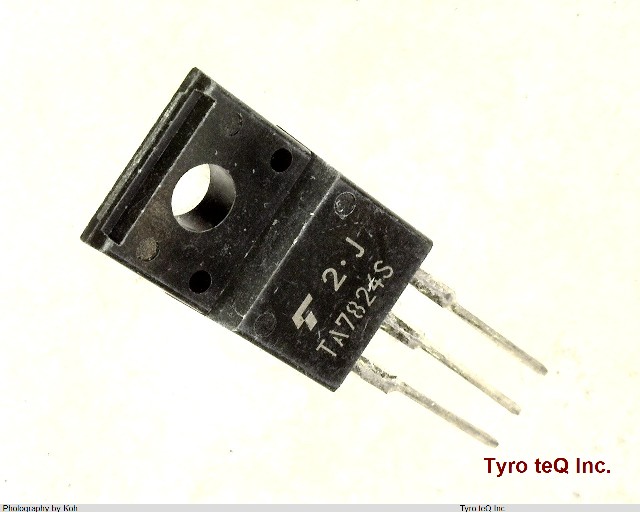

Name: TA7824S
Brand: TOSHIBA
SKU: 300001985-0000-0000-0000

TA7824S - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA7824S の詳細情報

型番	TA7824S
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	2 V
Input Voltage Absolute-Max	40 V
Input Voltage-Max	38 V
Input Voltage-Min	27 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Length	10 mm
Line Regulation-Max	0.48 %
Load Regulation-Max	0.48 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	25.2 V
Output Voltage1-Min	22.8 V
Output Voltage1-Nom	24 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP3,.08
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	15.1 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.5 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	4.5 mm
