TA7806F(TE16L) データシート

Name: TA7806F(TE16L)
Brand: TOSHIBA
SKU: 300280749-0000-0000-0000

TA7806F(TE16L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

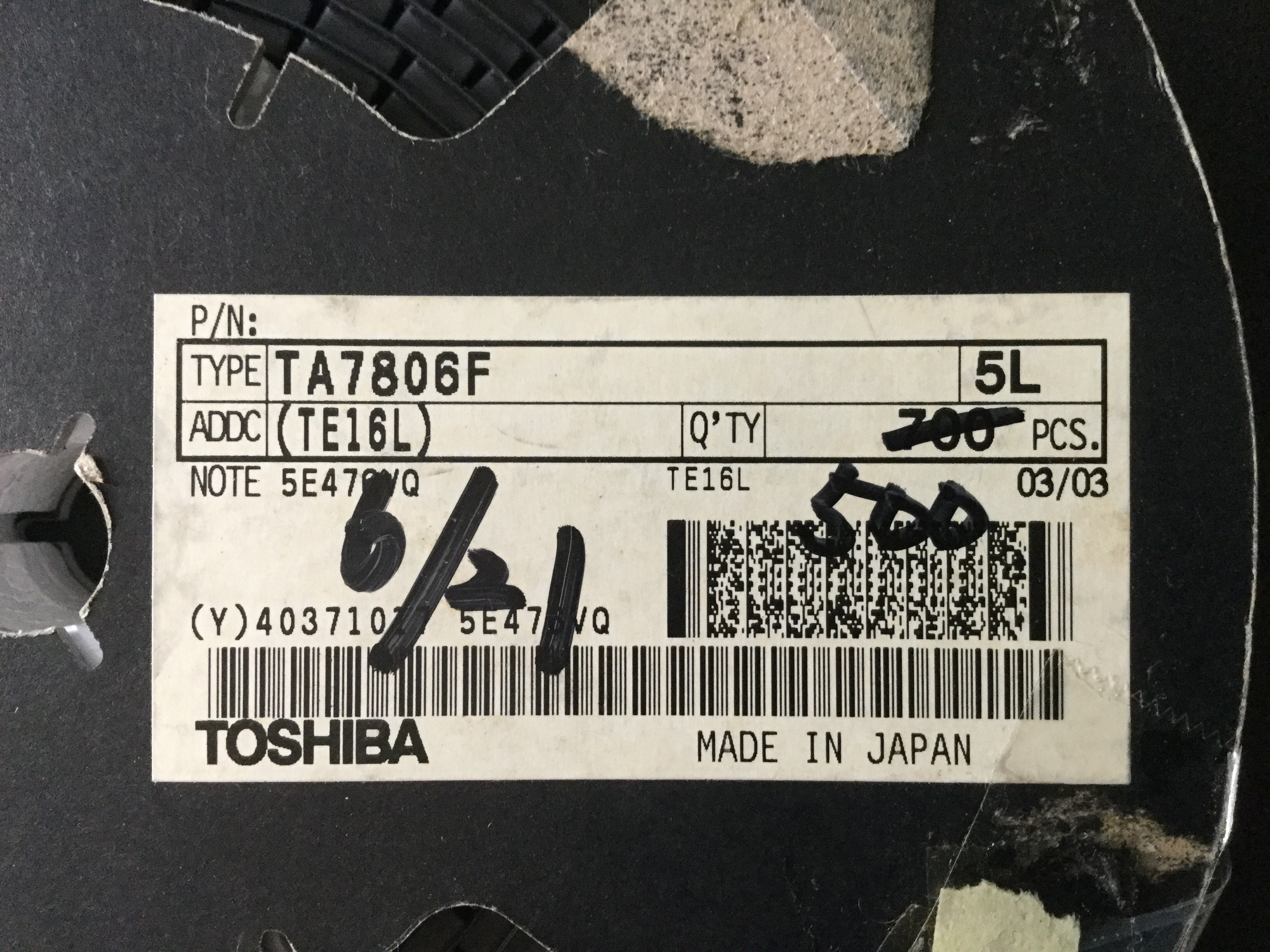

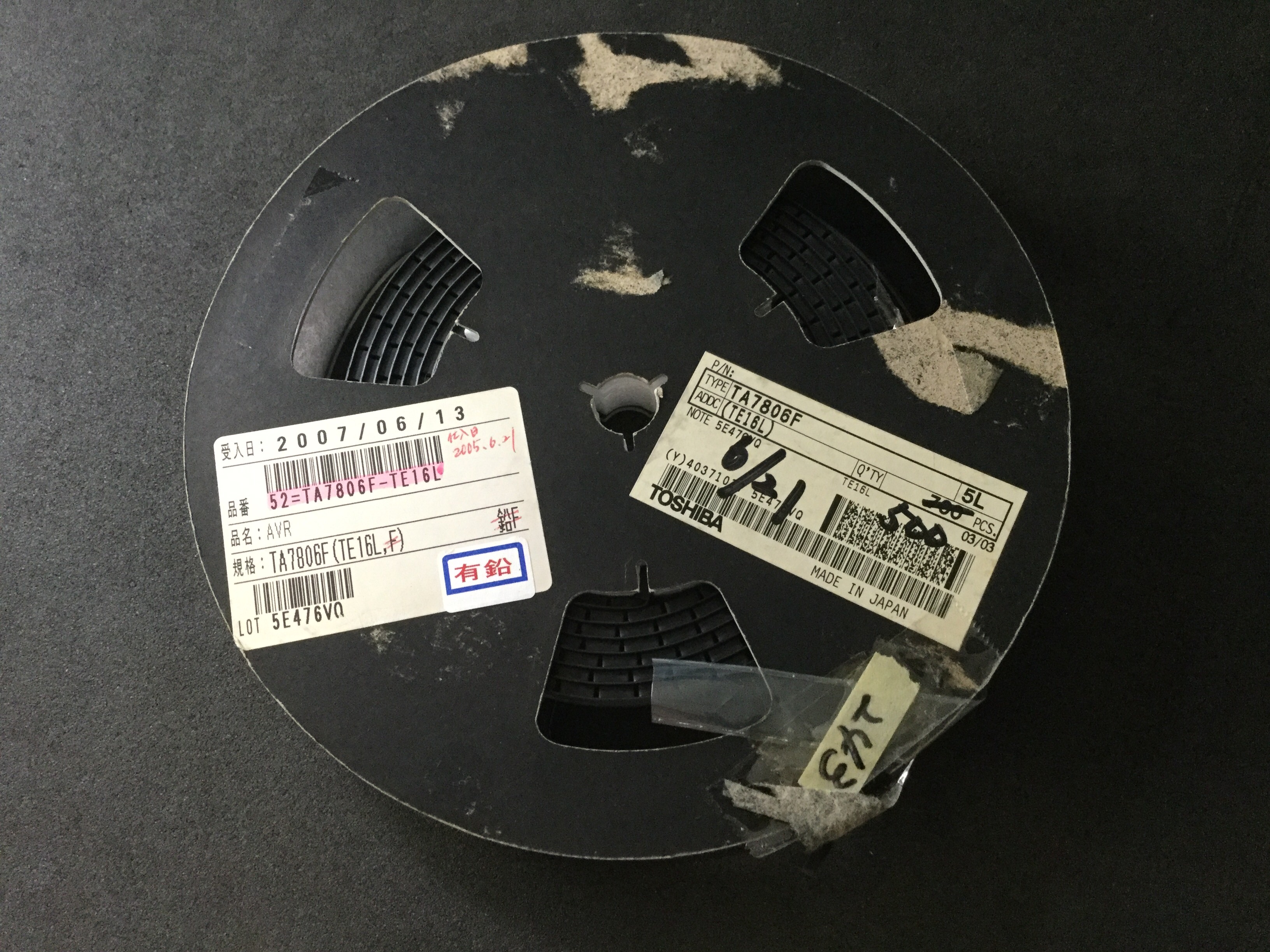

TE16L:16mm幅テーピング

TA7806F(TE16L) の詳細情報

型番	TA7806F(TE16L)
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	2 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	25 V
Input Voltage-Min	7 V
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e0
Length	6.5 mm
Line Regulation-Max	0.12 %
Load Regulation-Max	0.12 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	6.3 V
Output Voltage1-Min	5.7 V
Output Voltage1-Nom	6 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SMSIP3H,.38,90TB
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	2.7 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	2.5 mm
