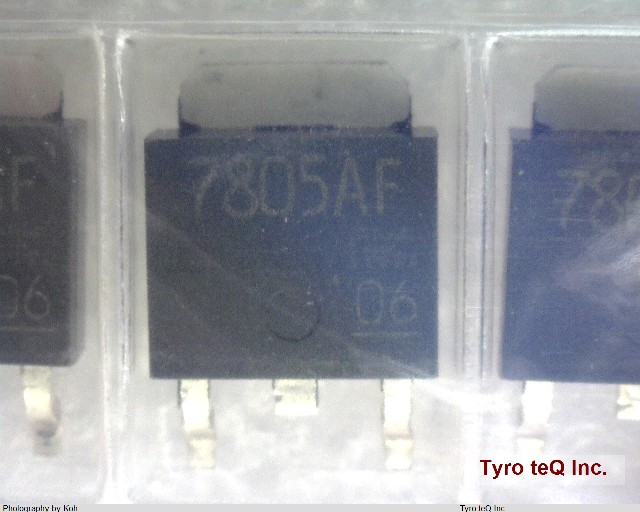

TA7805AF(TE16L1,NQ) データシート

Name: TA7805AF(TE16L1,NQ)
Brand: TOSHIBA
SKU: 300295987-0000-0000-0000

TA7805AF(TE16L1,NQ) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA7805AF(TE16L1,NQ) の詳細情報

型番	TA7805AF(TE16L1,NQ)
メーカー	TOSHIBA
種別	3端子レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	2 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	15 V
Input Voltage-Min	7.5 V
JESD-30 Code	R-PSSO-G2
Length	6.5 mm
Line Regulation-Max	0.05 %
Load Regulation-Max	0.05 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	5.25 V
Output Voltage1-Min	4.75 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SMSIP3H,.38,90TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG Meter
Packing Method	TR
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	2.7 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	5.5 mm
