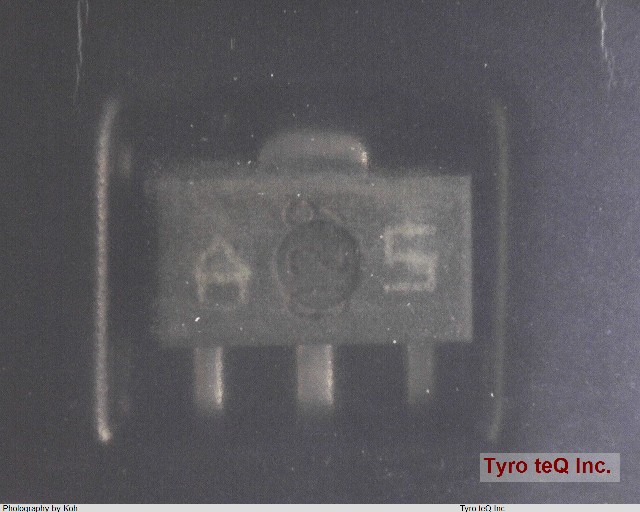

TA76431F データシート

Name: TA76431F
Brand: TOSHIBA
SKU: 300001713-0000-0000-0000

TA76431F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA76431F の詳細情報

型番	TA76431F
メーカー	TOSHIBA
データシート
Additional Feature	LG-MAX
Analog IC - Other Type	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-PSSO-F3
Length	4.5 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.1 A
Output Voltage-Max	2.55 V
Output Voltage-Min	2.44 V
Output Voltage-Nom	2.495 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	TO-243
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Voltage References
Surface Mount	YES
Technology	BIPOLAR
Temp Coef of Voltage-Max	888 ppm/Cel
Temperature Grade	INDUSTRIAL
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trim/Adjustable Output	YES V
Width	2.5 mm
