TA75W01FU(TE12L) データシート

Name: TA75W01FU(TE12L)
Brand: TOSHIBA
SKU: 300003534-0000-0000-0000

TA75W01FU(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

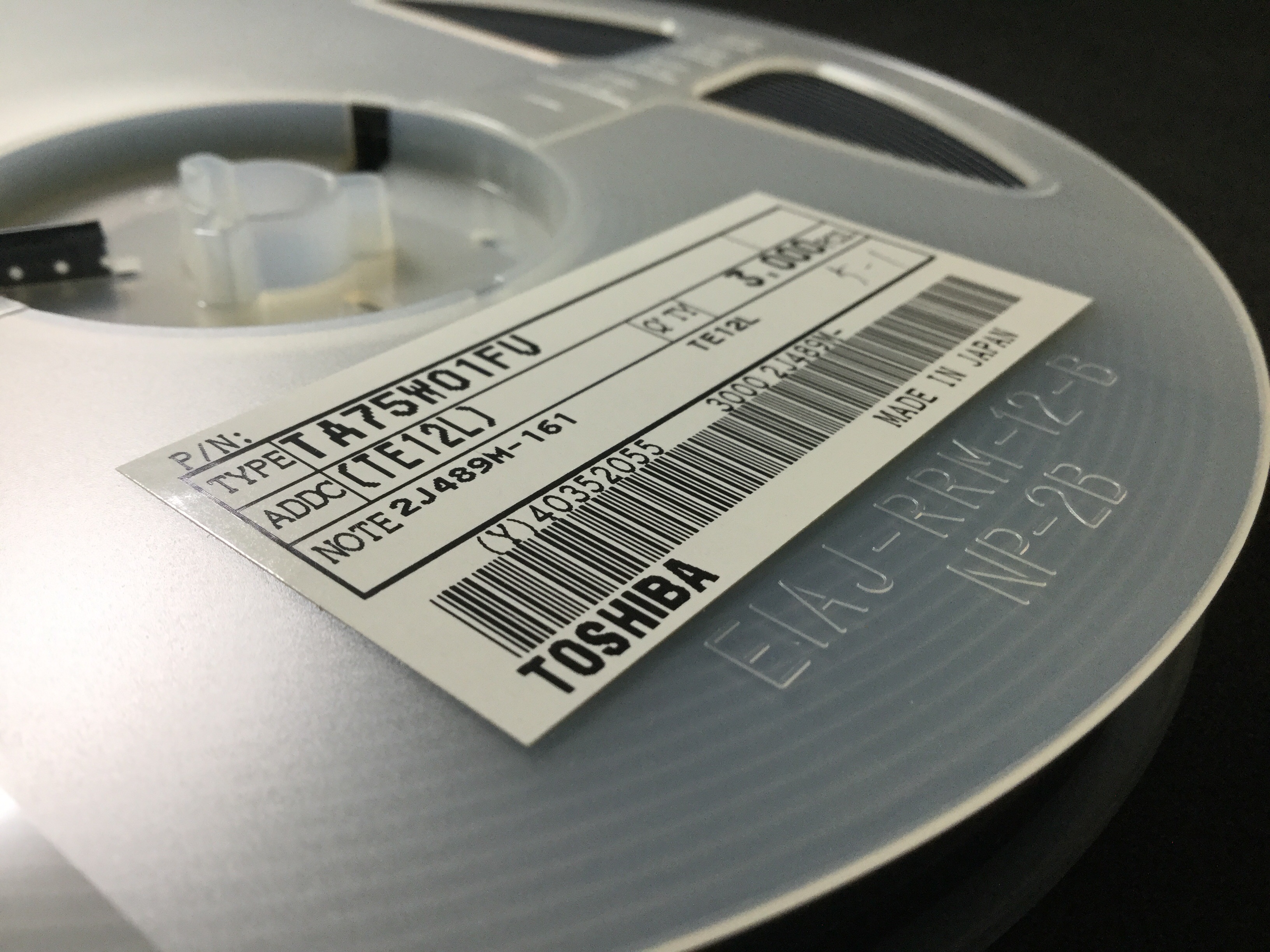

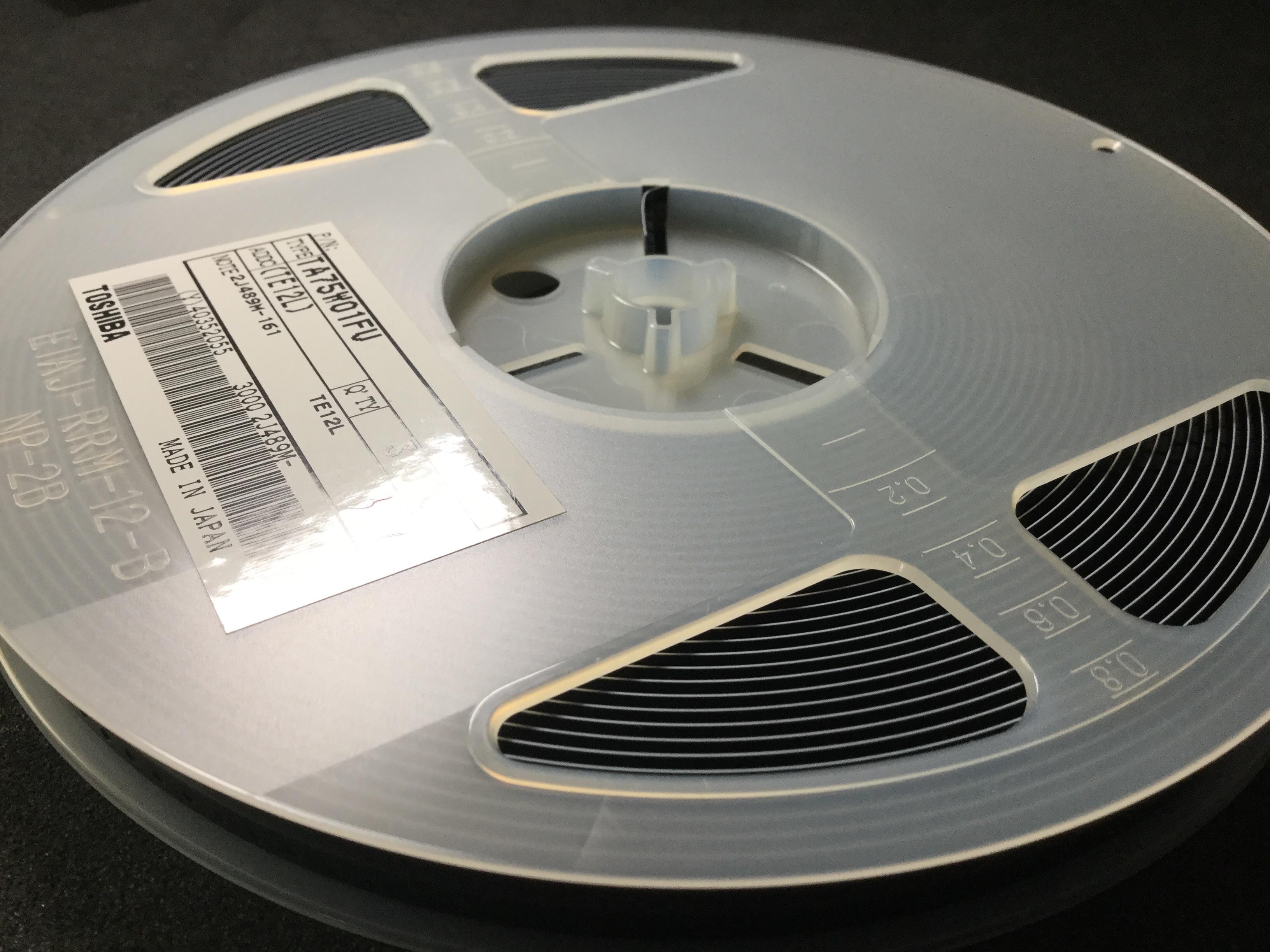

TE12L:12mm幅テーピング

TA75W01FU(TE12L) の詳細情報

型番	TA75W01FU(TE12L)
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Bias Current-Max (IIB) @25C	0.25 uA
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G8
Length	2.9 mm
Low-Offset	NO
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-1.5/+-6/3/12 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	12 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Gain-Min	43000
Width	2.8 mm
