TA75458S データシート Toshiba

TA75458S - TOSHIBA の商品詳細ページです。

1

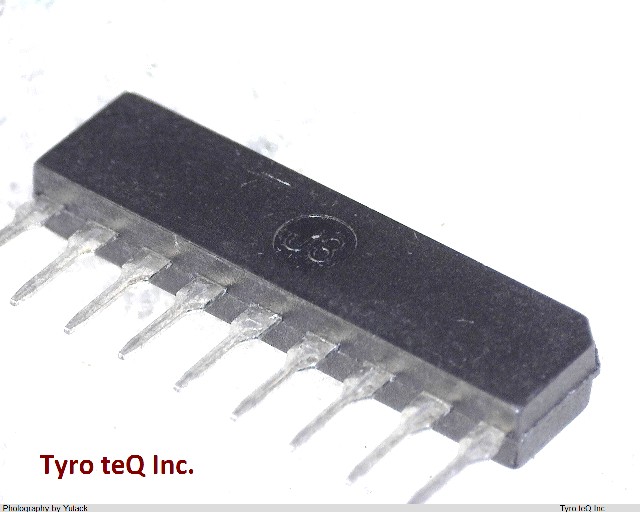

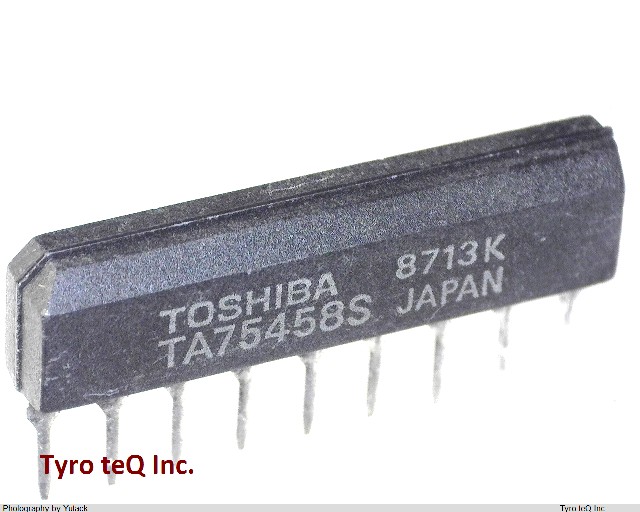

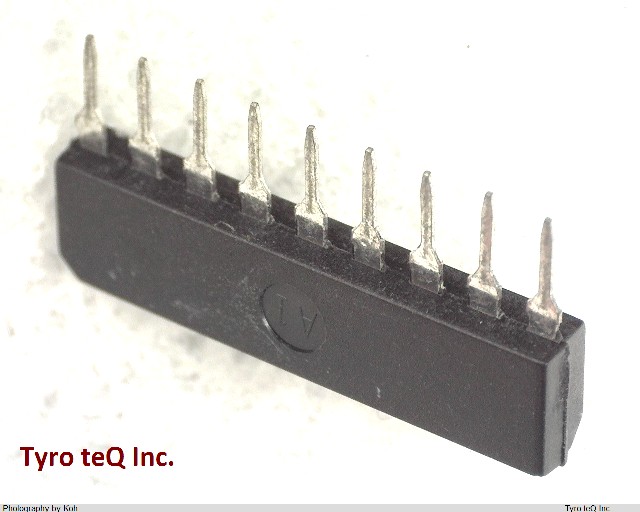

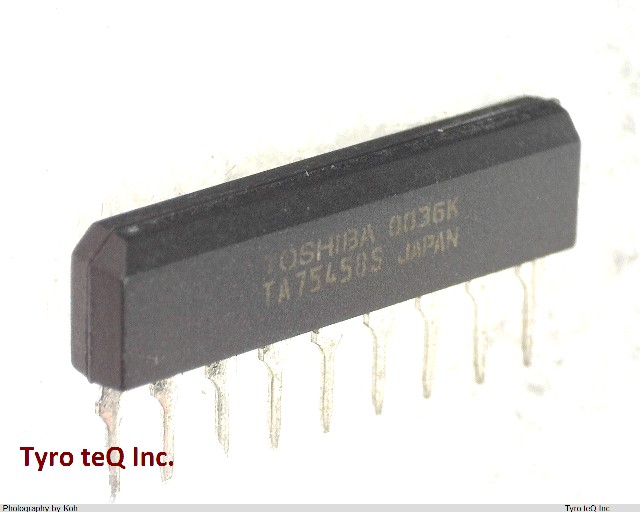

TA75458S
  • TA75458S
  • TA75458S
  • TA75458S
  • TA75458S
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TA75458S の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TA75458S
メーカーTOSHIBA
種別汎用リニアIC
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.5 uA
Bias Current-Max (IIB) @25C 0.5 uA
Common-mode Reject Ratio-Nom 90 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000 uV
JESD-30 Code R-PSIP-T9
JESD-609 Code e0
Length 22.28 mm
Low-Offset NO
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 9
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code SIP
Package Equivalence Code SIP9,.05
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 7.9 mm
Slew Rate-Nom 0.8 V/us
Sub Category Operational Amplifier
Supply Current-Max 5.6 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Unity Gain BW-Nom 1100 kHz
Voltage Gain-Min 20000
Width 3.2 mm
