TA75358F データシート Toshiba

TA75358F - TOSHIBA の商品詳細ページです。

1

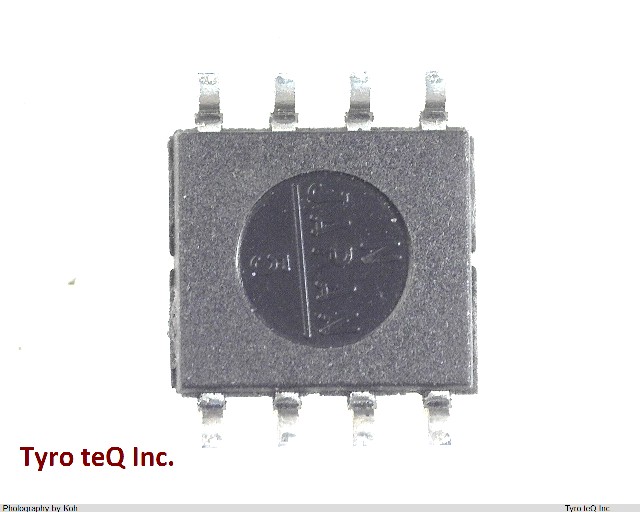

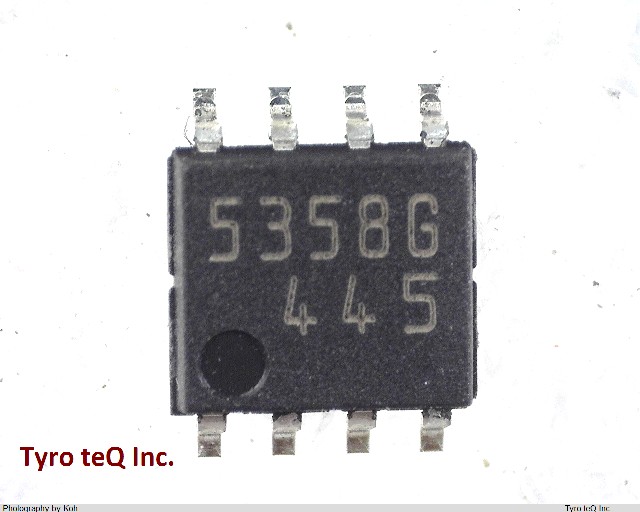

TA75358F
  • TA75358F
  • TA75358F
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TA75358F の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TA75358F
メーカーTOSHIBA
種別汎用リニアIC
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.25 uA
Bias Current-Max (IIB) @25C 0.25 uA
Common-mode Reject Ratio-Nom 85 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000 uV
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 5 mm
Low-Offset NO
Neg Supply Voltage Limit-Max 0 V
Neg Supply Voltage-Nom (Vsup) 0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Power Supplies +-1.5/+-15/3/30 V
Qualification Status Not Qualified
Seated Height-Max 1.85 mm
Slew Rate-Nom 0.8 V/us
Sub Category Operational Amplifier
Supply Current-Max 1.2 mA
Supply Voltage Limit-Max 36 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Unity Gain BW-Nom 1500 kHz
Voltage Gain-Min 20000
Width 4.4 mm
