TA75358CP データシート Toshiba

TA75358CP - TOSHIBA の商品詳細ページです。

1

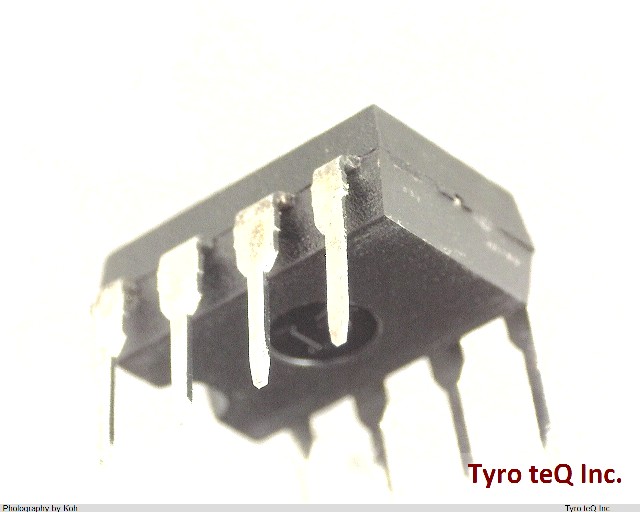

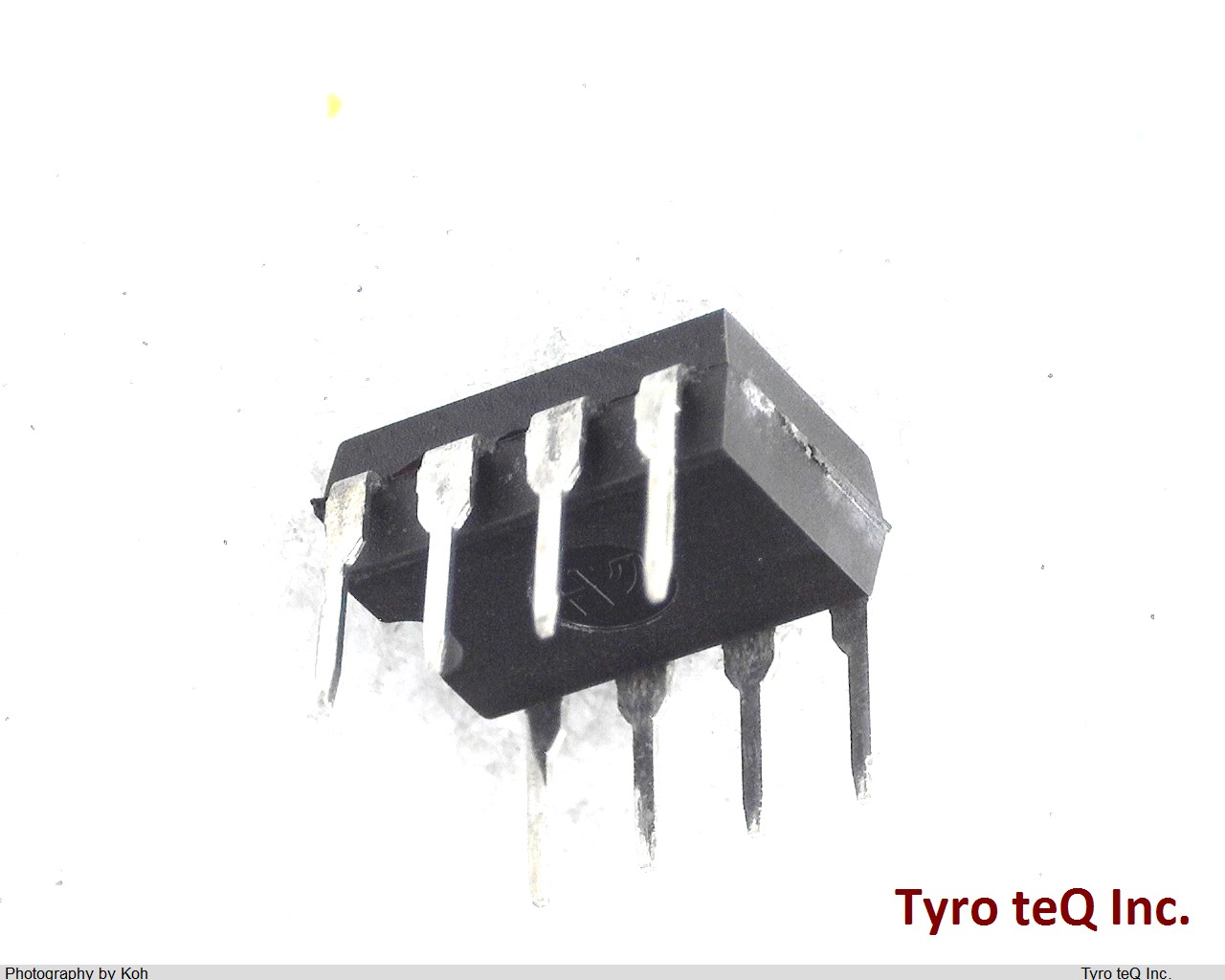

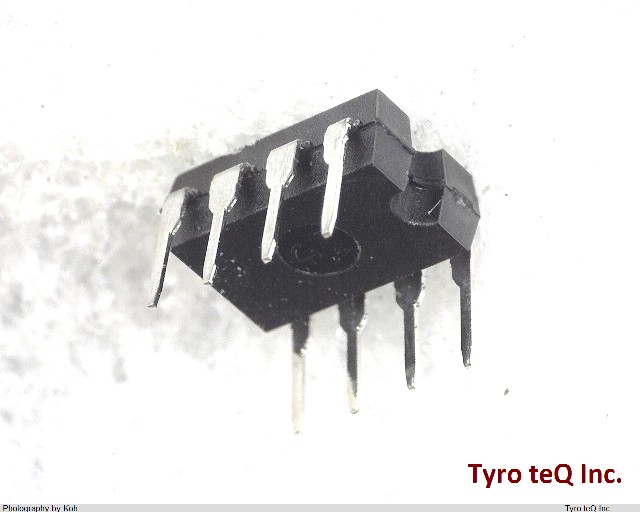

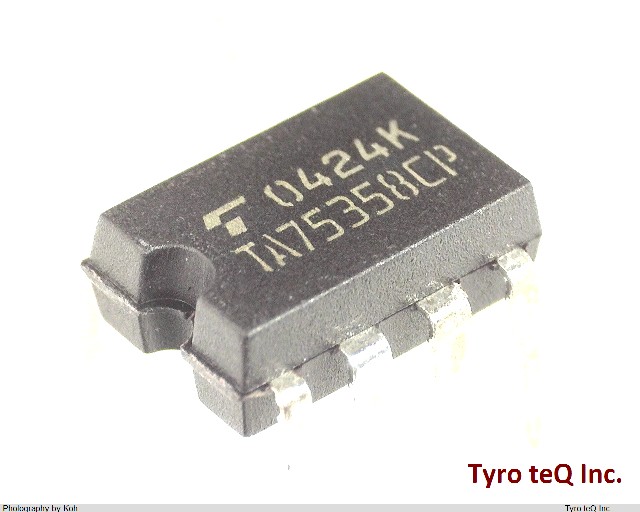

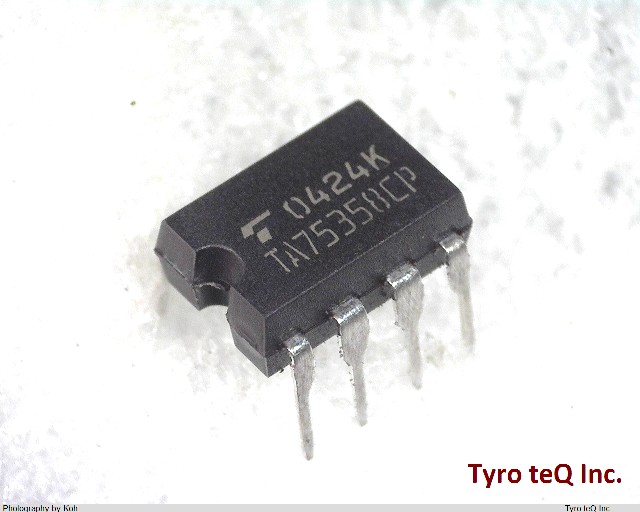

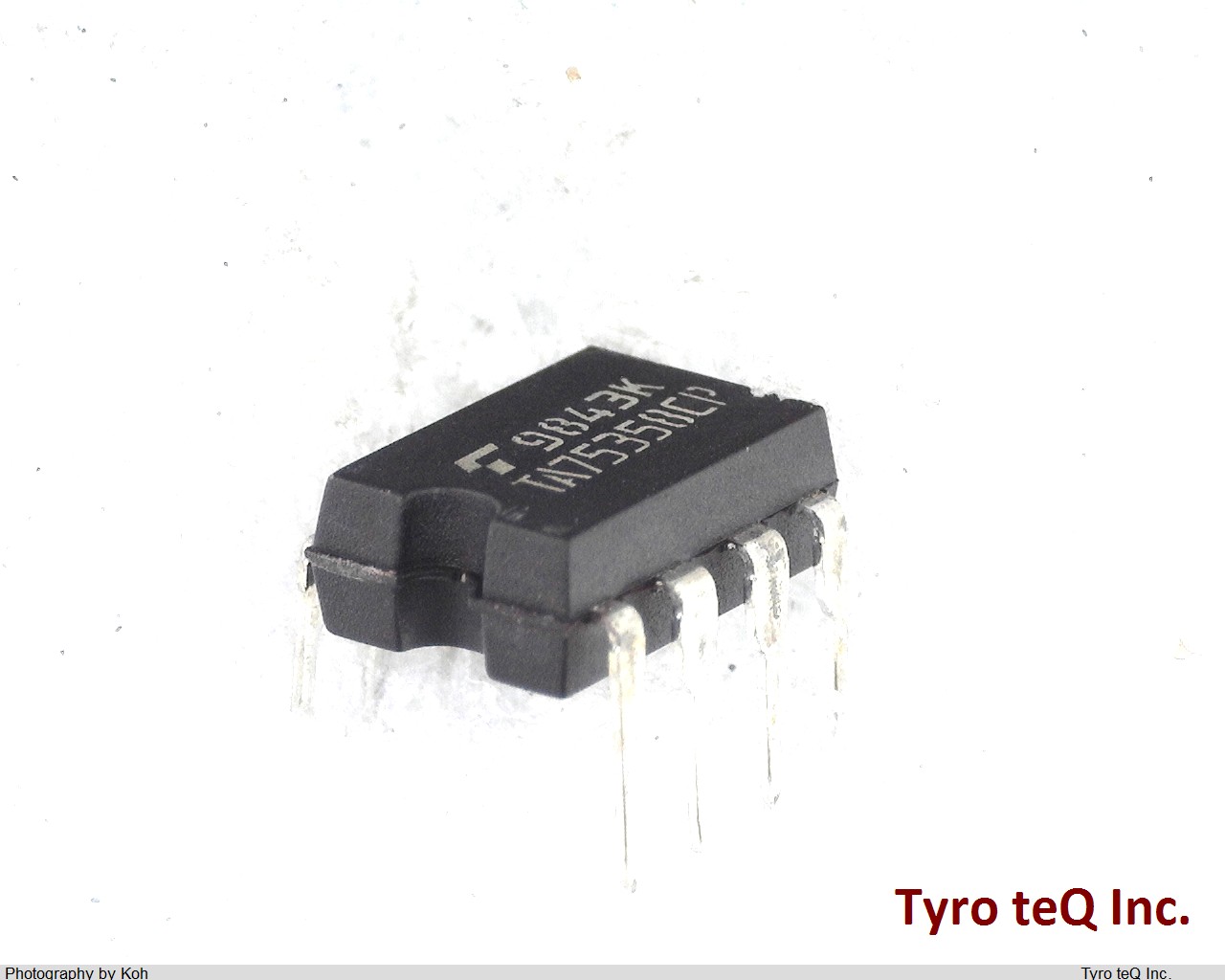

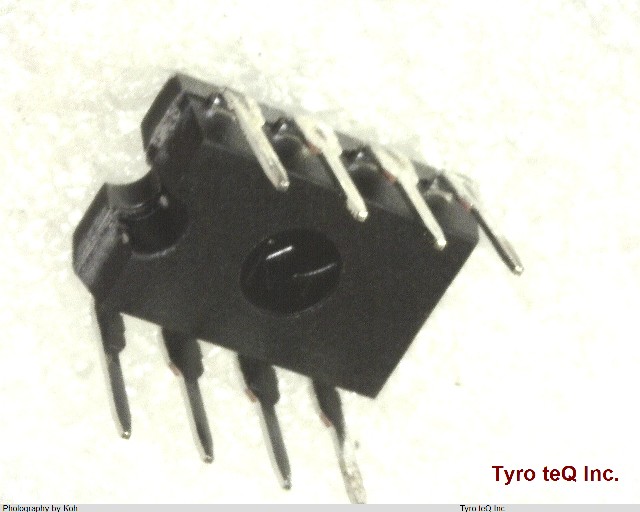

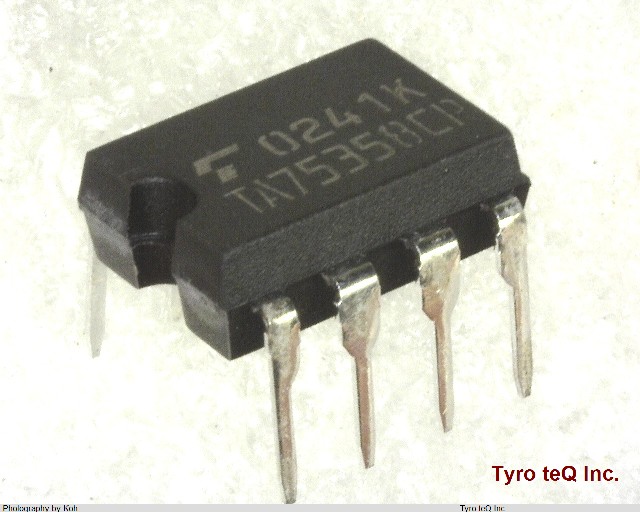

TA75358CP
  • TA75358CP
  • TA75358CP
  • TA75358CP
  • TA75358CP
  • TA75358CP
  • TA75358CP
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TA75358CP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TA75358CP
メーカーTOSHIBA
種別汎用リニアIC
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.25 uA
Bias Current-Max (IIB) @25C 0.25 uA
Common-mode Reject Ratio-Nom 85 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.6 mm
Low-Offset NO
Neg Supply Voltage Limit-Max 0 V
Neg Supply Voltage-Nom (Vsup) 0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-1.5/+-15/3/30 V
Qualification Status Not Qualified
Seated Height-Max 4.25 mm
Slew Rate-Nom 0.3 V/us
Sub Category Operational Amplifier
Supply Current-Max 1.2 mA
Supply Voltage Limit-Max 36 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 600 kHz
Voltage Gain-Min 20000
Width 7.62 mm
