TA75074P データシート Toshiba

TA75074P - TOSHIBA の商品詳細ページです。

1

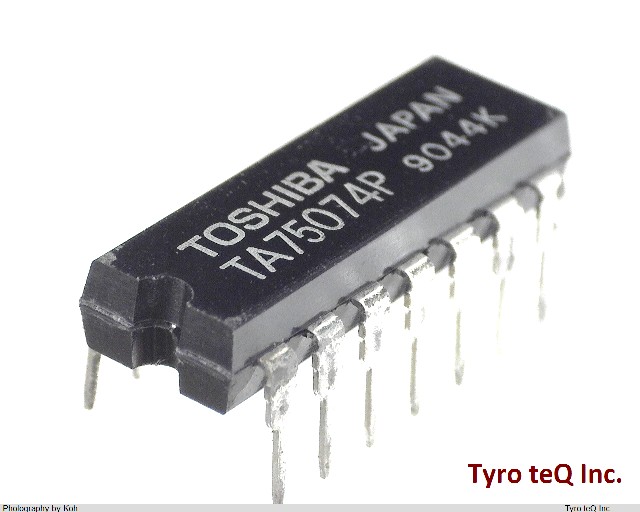

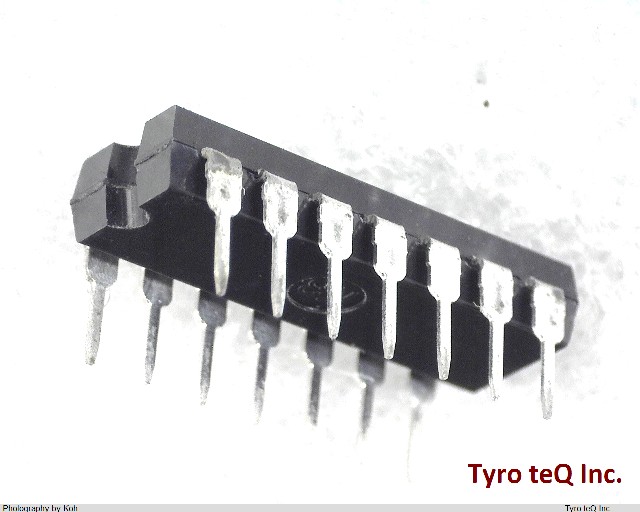

TA75074P
  • TA75074P
  • TA75074P
  • TA75074P
  • TA75074P
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TA75074P の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TA75074P
メーカーTOSHIBA
種別汎用リニアIC
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0002 uA
Bias Current-Max (IIB) @25C 0.0002 uA
Common-mode Reject Ratio-Nom 76 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 5.0E-5 uA
Input Offset Voltage-Max 10000 uV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Length 19.25 mm
Low-Bias YES
Low-Offset NO
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 4.45 mm
Slew Rate-Nom 13 V/us
Sub Category Operational Amplifier
Supply Current-Max 10 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 3000 kHz
Voltage Gain-Min 20000
Width 7.62 mm
会社名称株式会社東芝
設立1875年7月
資本金4,399億円
所在地東京都港区芝浦1-1-1
URLhttp://www.semicon.toshiba.co.jp/eng/

TA75074Pのレビュー

TA75074P のご注文について
