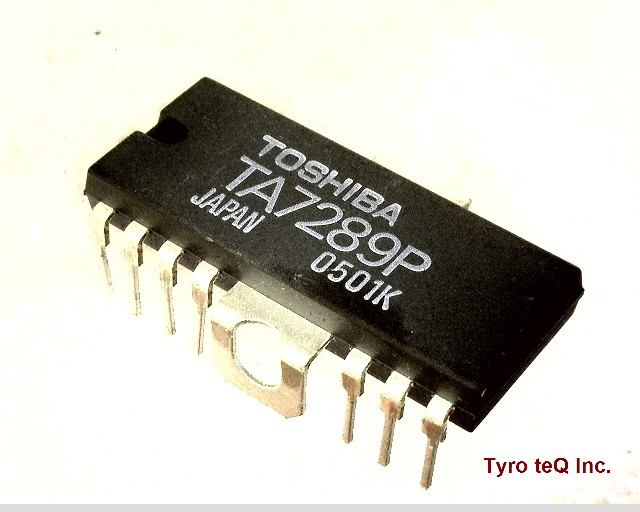

TA7289P データシート

Name: TA7289P
Brand: TOSHIBA
SKU: 300007200-0000-0000-0000

TA7289P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA7289P の詳細情報

型番	TA7289P
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Analog IC - Other Type	STEPPER MOTOR CONTROLLER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	26.5 mm
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	1.5 A
Package Body Material	PLASTIC/EPOXY
Package Code	HDIP
Package Equivalence Code	HDIP20,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	24 V
Qualification Status	Not Qualified
Seated Height-Max	4.2 mm
Sub Category	Motion Control Electronics
Supply Current-Max (Isup)	32 mA
Supply Voltage-Max (Vsup)	27 V
Supply Voltage-Min (Vsup)	6 V
Supply Voltage-Nom (Vsup)	24 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	11 mm
