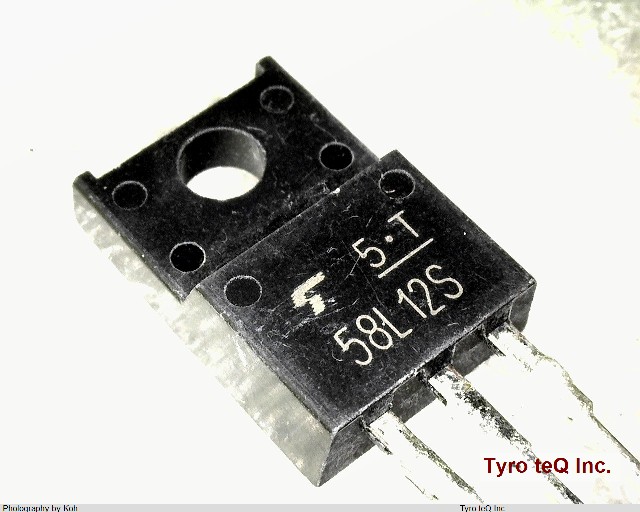

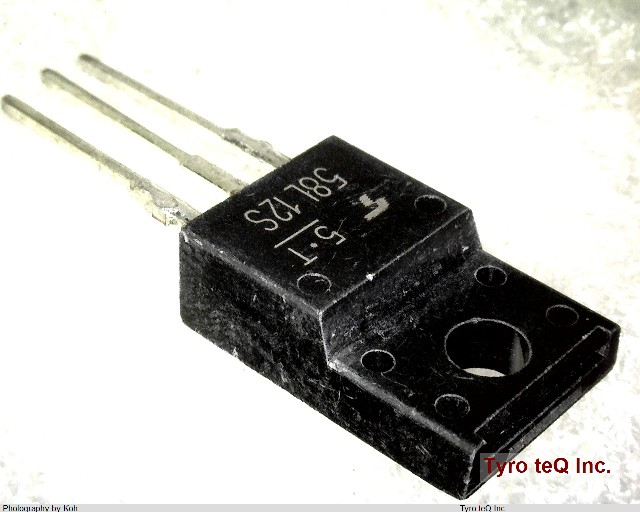

TA58L12S データシート

Name: TA58L12S
Brand: TOSHIBA
SKU: 300319191-0000-0000-0000

TA58L12S - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA58L12S の詳細情報

型番	TA58L12S
メーカー	TOSHIBA
種別	レギュレータ
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.4 V
Dropout Voltage1-Nom	0.22 V
Input Voltage Absolute-Max	29 V
Input Voltage-Max	26 V
Input Voltage-Min	5.35 V
JESD-30 Code	R-PSFM-T3
Line Regulation-Max	0.02 %
Load Regulation-Max	0.05 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.2 A
Output Voltage1-Max	12.48 V
Output Voltage1-Min	11.52 V
Output Voltage1-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	4 %
