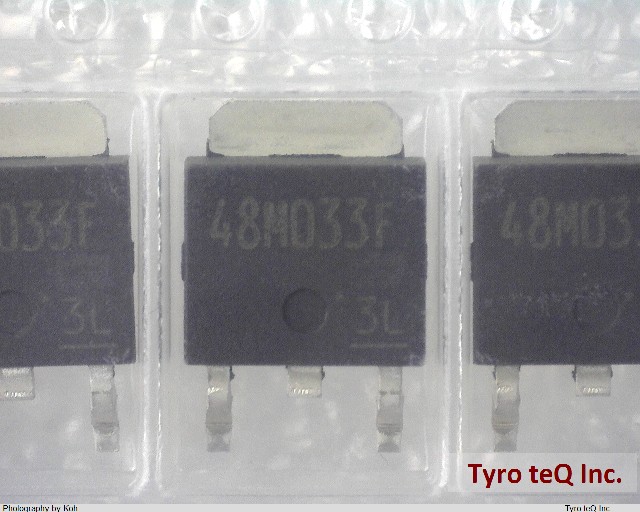

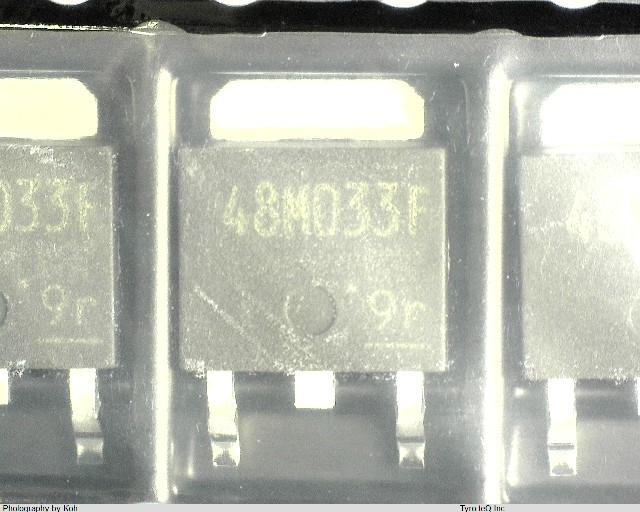

TA48M033F(T6L1,SNQ データシート

Name: TA48M033F(T6L1,SNQ
Brand: TOSHIBA
SKU: 300395576-0000-0000-0000

TA48M033F(T6L1,SNQ - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA48M033F(T6L1,SNQ の詳細情報

型番	TA48M033F(T6L1,SNQ
メーカー	TOSHIBA
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.65 V
Dropout Voltage1-Nom	0.35 V
Input Voltage Absolute-Max	29 V
Input Voltage-Max	16 V
Input Voltage-Min	4.3 V
JESD-30 Code	R-PSSO-G2
Length	6.5 mm
Line Regulation-Max	0.023 %
Load Regulation-Max	0.105 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	3.465 V
Output Voltage1-Min	3.135 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SMSIP3H,.38,90TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG Meter
Packing Method	TR
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.7 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	5.5 mm
