TA48LS025F データシート

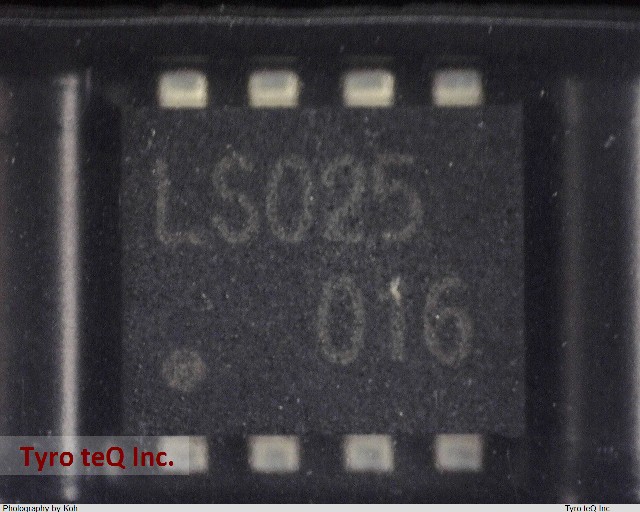

Name: TA48LS025F
Brand: TOSHIBA
SKU: 300304262-0000-0000-0000

TA48LS025F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA48LS025F の詳細情報

型番	TA48LS025F
メーカー	TOSHIBA
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.6 V
Dropout Voltage1-Nom	0.4 V
Input Voltage Absolute-Max	14 V
Input Voltage-Max	14 V
Input Voltage-Min	3.1 V
JESD-30 Code	R-PDSO-F8
Length	2.9 mm
Line Regulation-Max	0.02 %
Load Regulation-Max	0.02 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.15 A
Output Voltage1-Max	2.563 V
Output Voltage1-Min	2.437 V
Output Voltage1-Nom	2.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	VSOF
Package Equivalence Code	FL8,.1,25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE Meter
Packing Method	TR
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.85 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Form	FLAT
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Voltage Tolerance-Max	2.5 %
Width	2.4 mm
