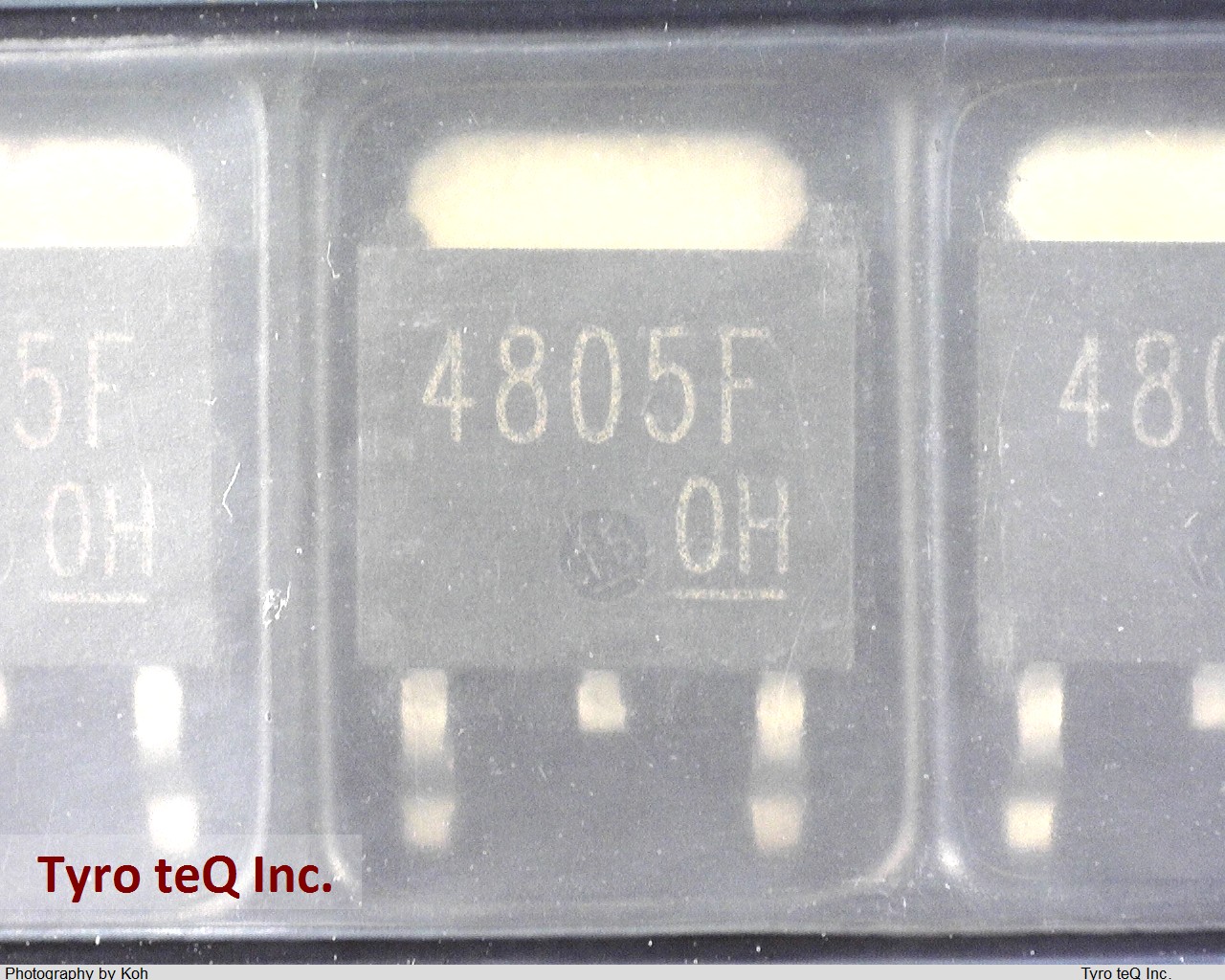

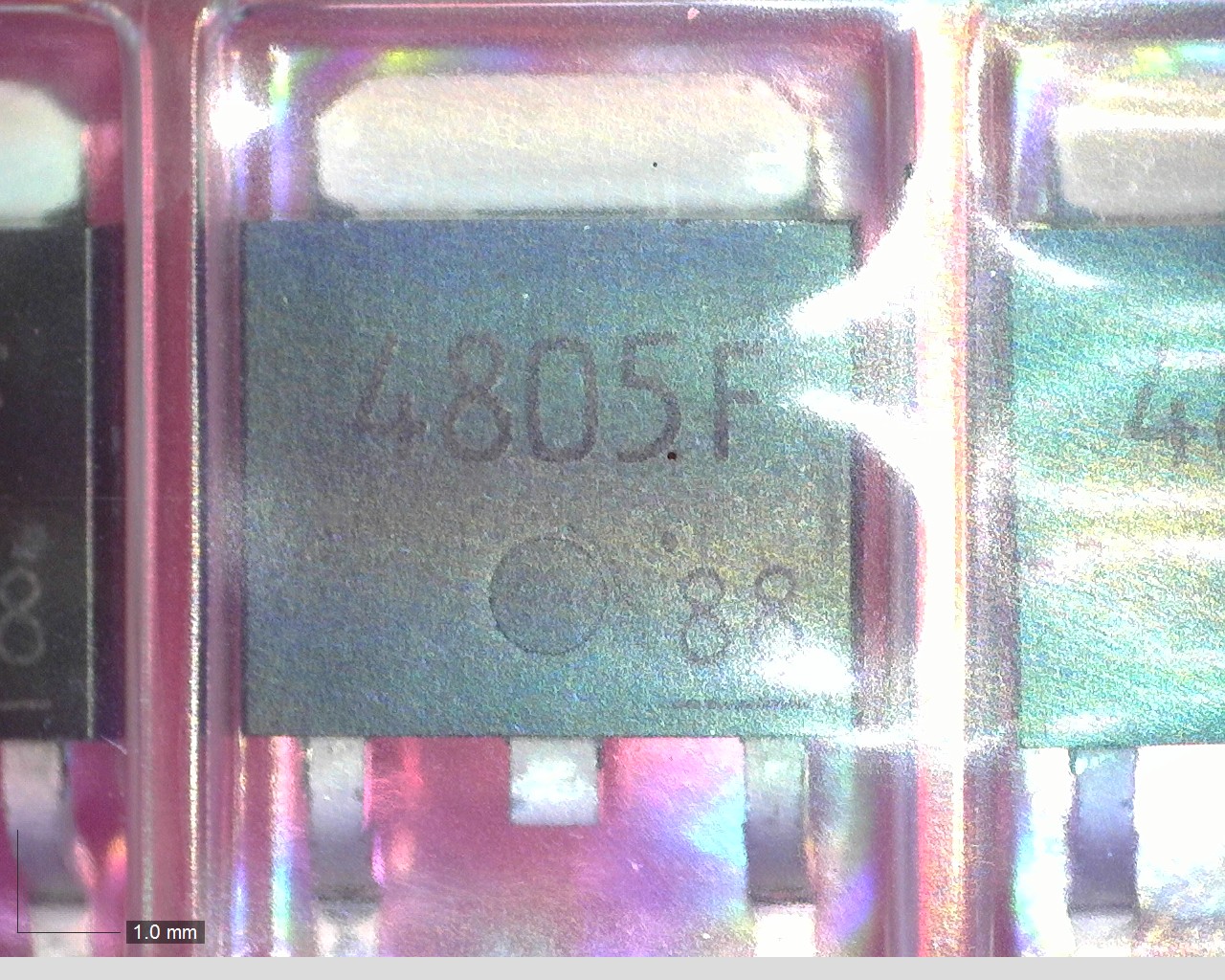

TA4805F データシート

Name: TA4805F
Brand: TOSHIBA
SKU: 300015093-0000-0000-0000

TA4805F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TA4805F の詳細情報

型番	TA4805F
メーカー	TOSHIBA
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.5 V
Dropout Voltage1-Nom	0.4 V
Input Voltage Absolute-Max	16 V
Input Voltage-Max	12 V
Input Voltage-Min	6 V
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e2
Length	6.5 mm
Line Regulation-Max	0.02 %
Load Regulation-Max	0.02 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	5.225 V
Output Voltage1-Min	4.775 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP3,.04,90TB
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.7 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4.5 %
Width	5.5 mm
