型番 | SH5J12U |
---|---|
メーカー | TOSHIBA |
Additional Feature | HIGH SPEED |
Case Connection | ANODE |
Circuit Commutated Turn-off Time-Nom | 15 us |
Configuration | SINGLE |
Critical Rate of Rise of Off-state Voltage-Min | 50 V/us |
DC Gate Trigger Current-Max | 40 mA |
DC Gate Trigger Voltage-Max | 3 V |
Holding Current-Max | 100 mA |
JESD-30 Code | O-MUPM-D2 |
Number of Elements | 1 |
Number of Terminals | 2 |
Operating Temperature-Max | 110 Cel |
Operating Temperature-Min | -40 Cel |
Package Body Material | METAL |
Package Shape | ROUND |
Package Style | POST/STUD MOUNT Meter |
Qualification Status | Not Qualified |
RMS On-state Current-Max | 8 A |
Repetitive Peak Off-state Leakage Current-Max | 500 uA |
Repetitive Peak Off-state Voltage | 600 V |
Repetitive Peak Reverse Voltage | 100 V |
Surface Mount | NO |
Terminal Form | SOLDER LUG |
Terminal Position | UPPER |
Trigger Device Type | SCR |
会社名称 | 株式会社東芝 |
---|---|
設立 | 1875年7月 |
資本金 | 4,399億円 |
所在地 | 東京都港区芝浦1-1-1 |
URL | http://www.semicon.toshiba.co.jp/eng/ |

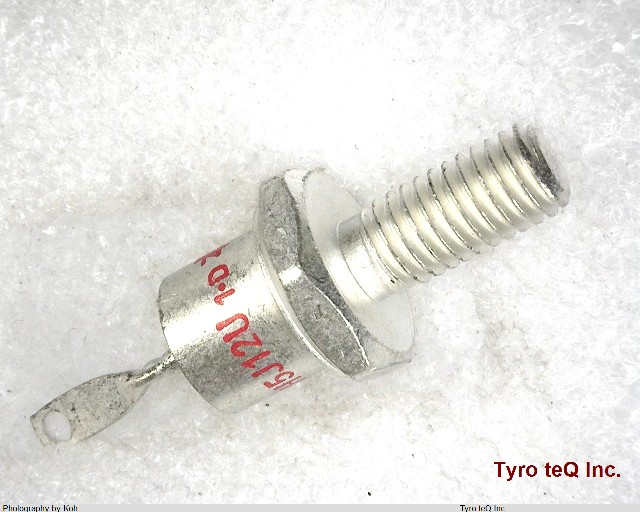

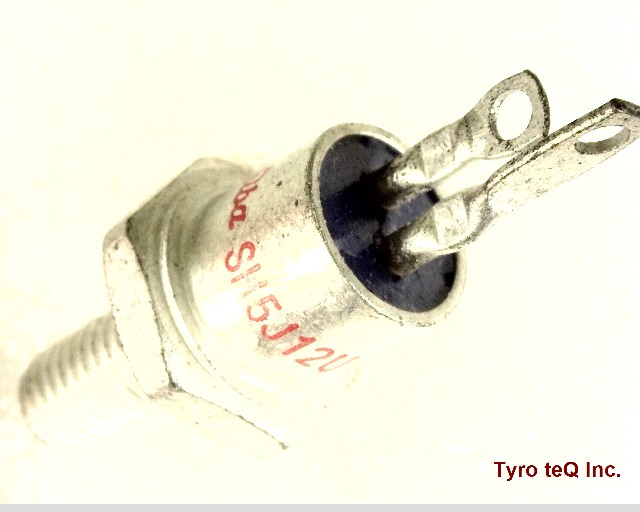

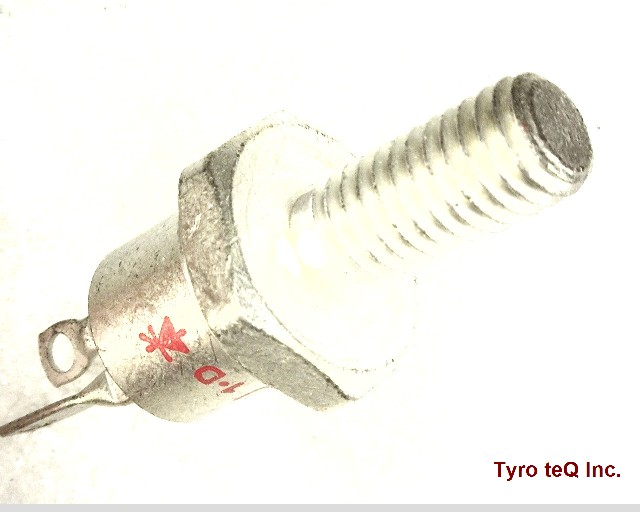

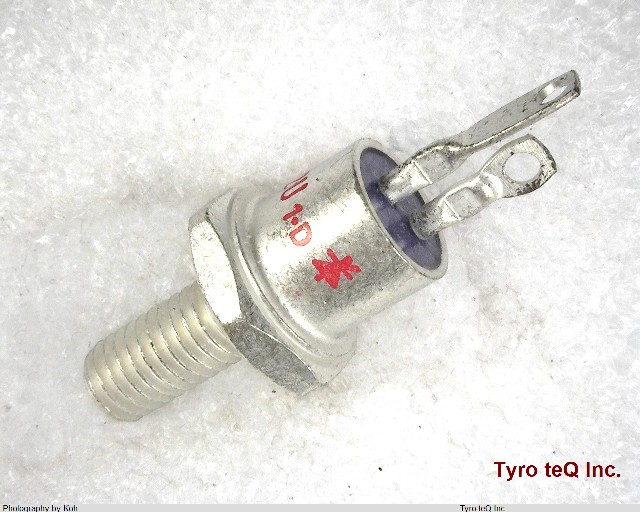

SH5J12U - TOSHIBA の商品詳細ページです。
