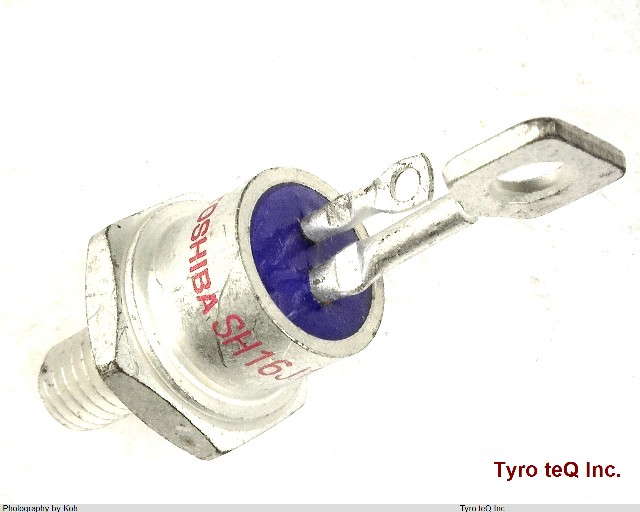

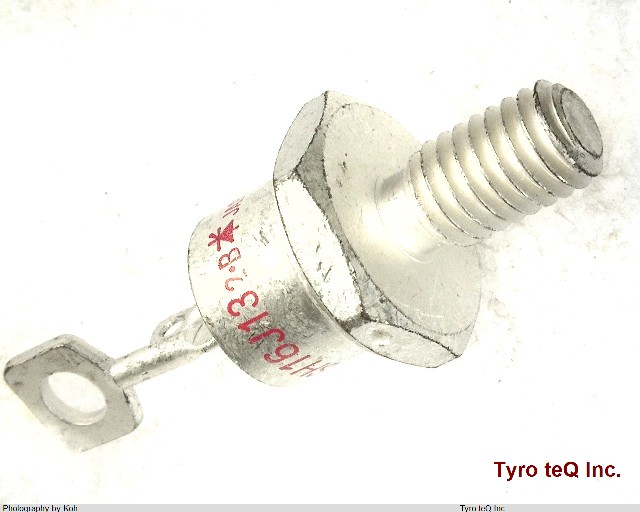

型番 | SH16J13 |
---|---|
メーカー | TOSHIBA |
Additional Feature | HIGH SPEED |
Case Connection | ANODE |
Circuit Commutated Turn-off Time-Nom | 10 us |
Configuration | SINGLE |
Critical Rate of Rise of Off-state Voltage-Min | 100 V/us |
DC Gate Trigger Current-Max | 50 mA |
DC Gate Trigger Voltage-Max | 3 V |
Holding Current-Max | 80 mA |
JESD-30 Code | O-MUPM-D2 |
Number of Elements | 1 |
Number of Terminals | 2 |
Operating Temperature-Max | 125 Cel |
Operating Temperature-Min | -40 Cel |
Package Body Material | METAL |
Package Shape | ROUND |
Package Style | POST/STUD MOUNT Meter |
Qualification Status | Not Qualified |
RMS On-state Current-Max | 25 A |
Repetitive Peak Off-state Leakage Current-Max | 6000 uA |
Repetitive Peak Off-state Voltage | 600 V |
Repetitive Peak Reverse Voltage | 600 V |
Surface Mount | NO |
Terminal Form | SOLDER LUG |
Terminal Position | UPPER |
Trigger Device Type | SCR |
