SF8G41 データシート

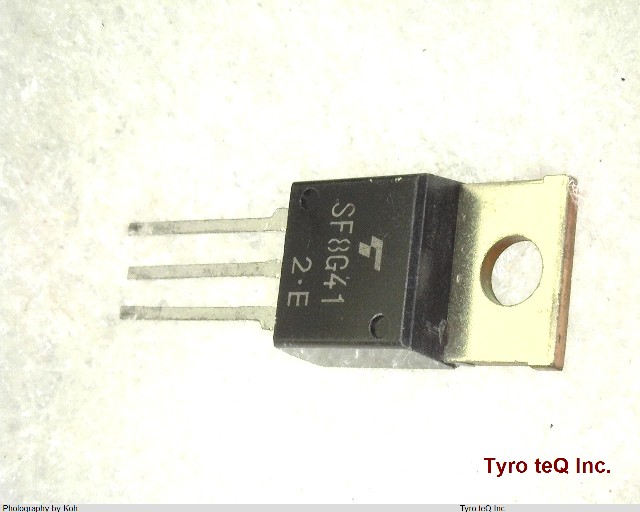

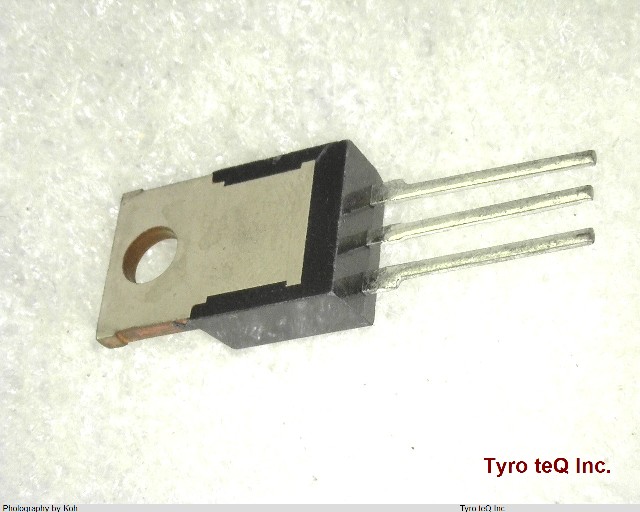

Name: SF8G41
Brand: TOSHIBA
SKU: 290212400-0000-0000-0000

SF8G41 - TOSHIBA の商品詳細ページです。

7時間29分後以内に見積もり依頼を頂ければ、
05月17日(金) 9:00 までに見積もり回答いたします。

検討リストに追加する

SF8G41 の詳細情報

型番	SF8G41
メーカー	TOSHIBA
データシート
Case Connection	ANODE
Configuration	SINGLE
Critical Rate of Rise of Off-state Voltage-Min	30 V/us
DC Gate Trigger Current-Max	15 mA
DC Gate Trigger Voltage-Max	1 V
Holding Current-Max	40 mA
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Leakage Current-Max	0.01 mA
Non-Repetitive Pk On-state Cur	120 A
Number of Elements	1
Number of Terminals	3
On-state Current-Max	8000 A
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RMS On-state Current-Max	12.6 A
Repetitive Peak Off-state Leakage Current-Max	10 uA
Repetitive Peak Off-state Voltage	400 V
Repetitive Peak Reverse Voltage	400 V
Sub Category	Silicon Controlled Rectifiers
Surface Mount	NO
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Device Type	SCR
