MP4703 データシート

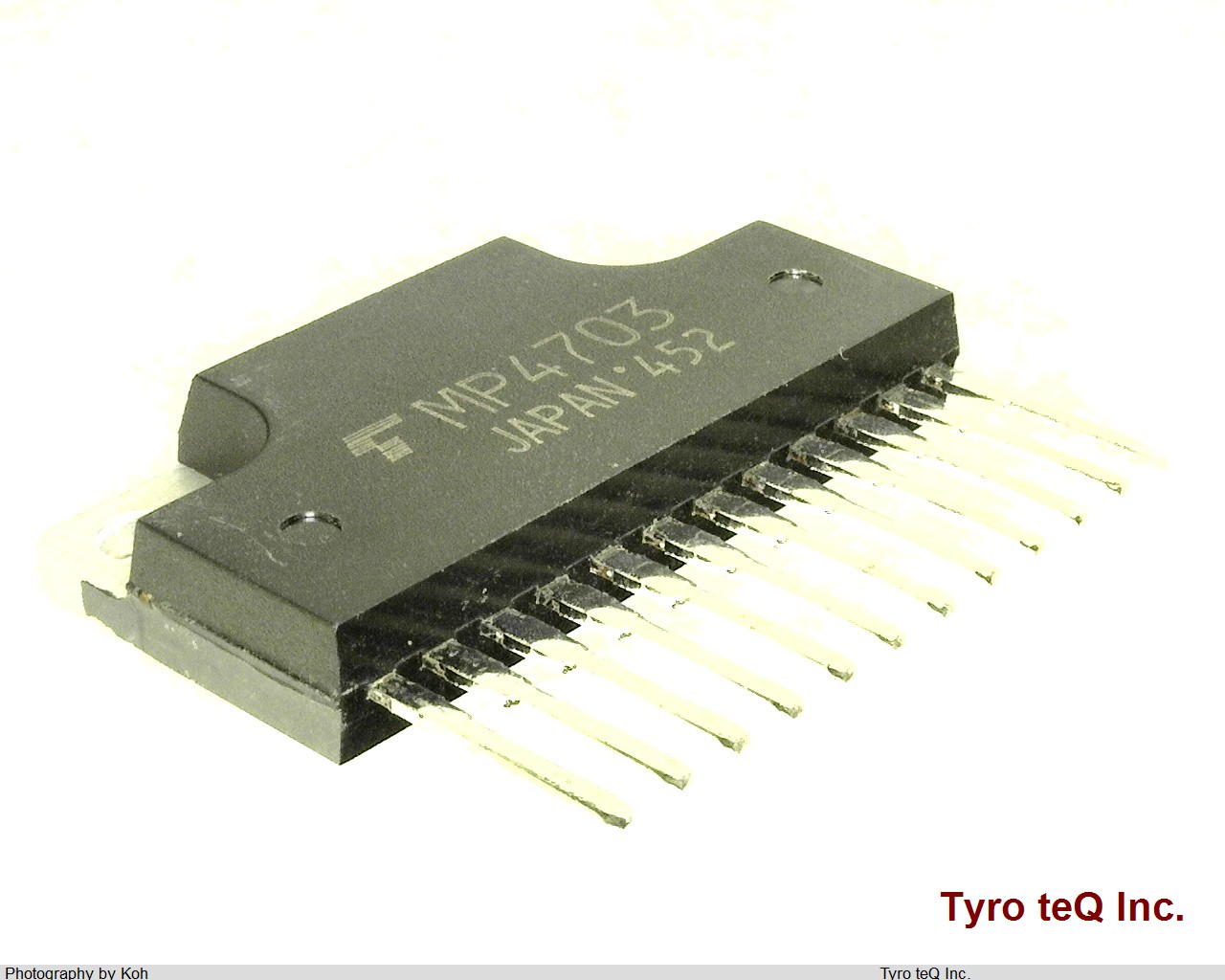

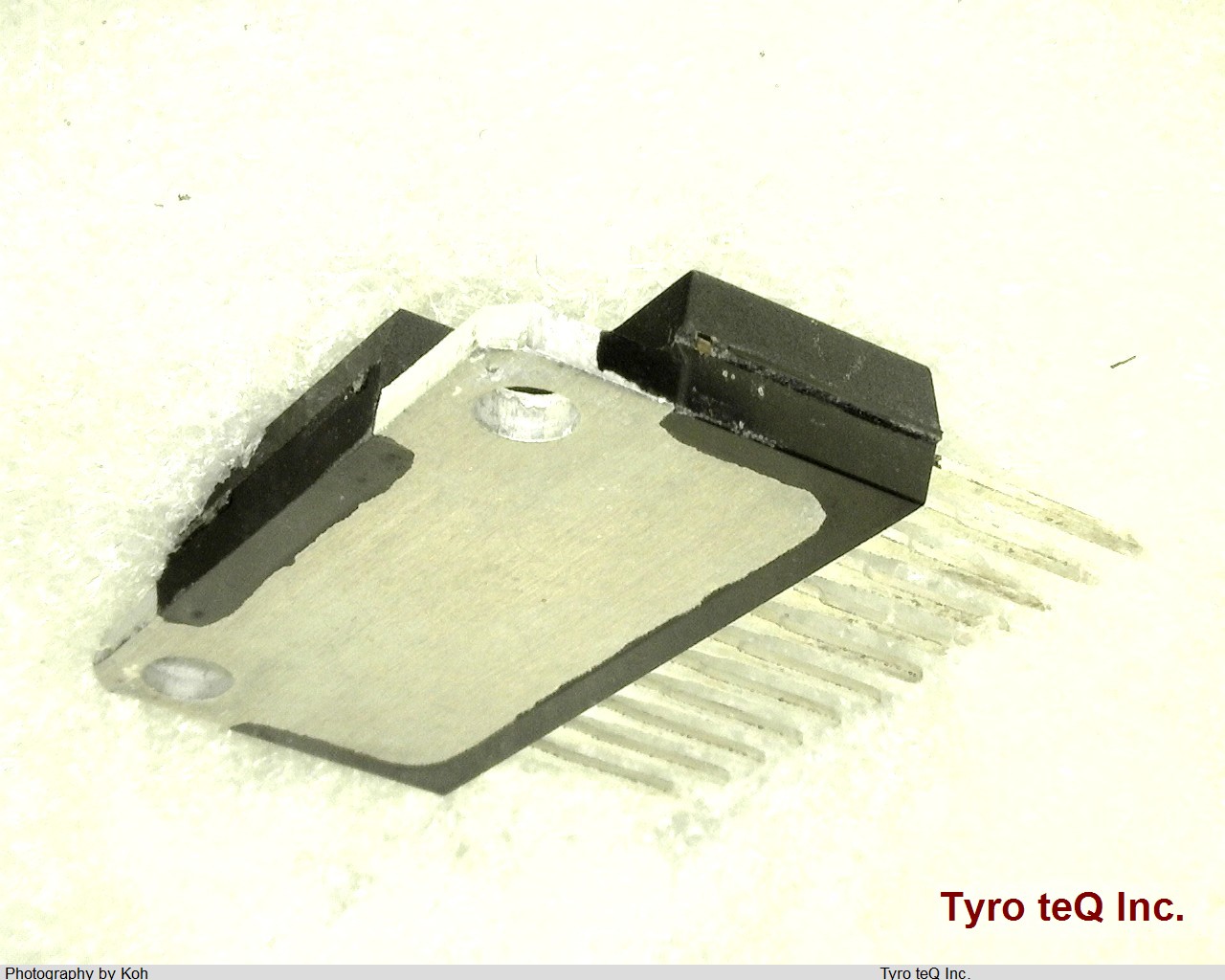

Name: MP4703
Brand: TOSHIBA
SKU: 230375866-0000-0000-0000

MP4703 - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

MP4703 の詳細情報

型番	MP4703
メーカー	TOSHIBA
種別	バイポーラトランジスタ
データシート
Case Connection	ISOLATED
Configuration	2 BANKS, COMMON SOURCE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	120 V
Drain Current-Max (Abs) (ID)	5 A
Drain Current-Max (ID)	5 A
Drain-source On Resistance-Max	0.44 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSFM-T12
JESD-609 Code	e0
Number of Elements	4
Number of Terminals	12
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	36 W
Power Dissipation-Max (Abs)	5 W
Pulsed Drain Current-Max (IDM)	10 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
