MG15G1AL3 データシート

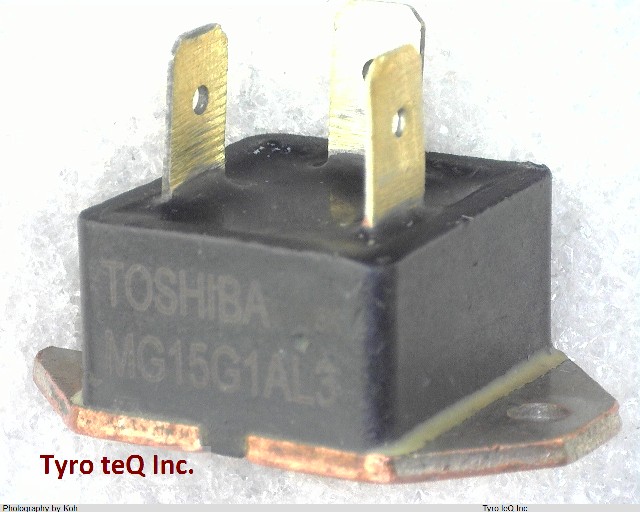

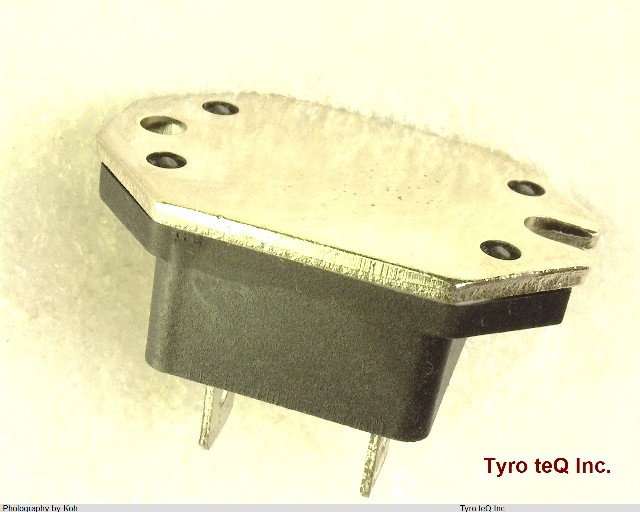

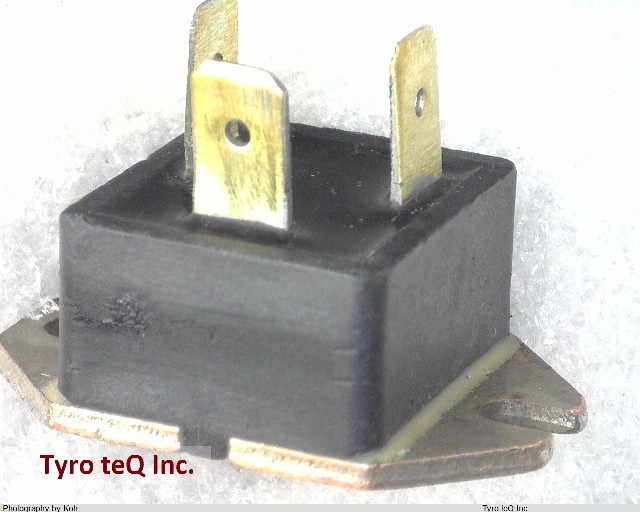

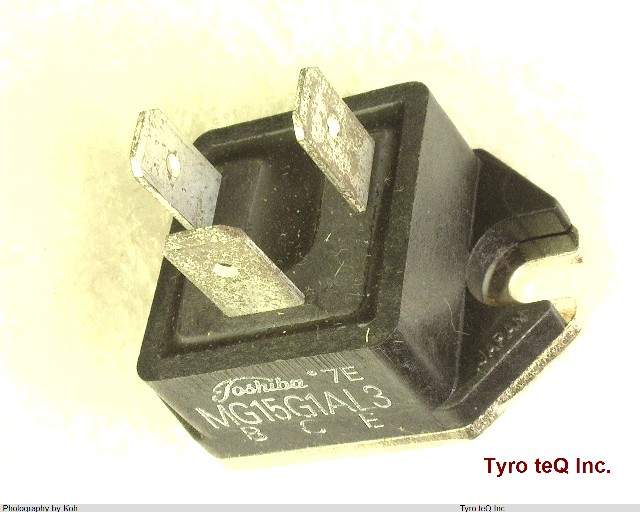

Name: MG15G1AL3
Brand: TOSHIBA
SKU: 230356273-0000-0000-0000

MG15G1AL3 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

MG15G1AL3 の詳細情報

型番	MG15G1AL3
メーカー	TOSHIBA
データシート
Case Connection	ISOLATED
Collector Current-Max (IC)	15 A
Collector-emitter Voltage-Max	450 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
DC Current Gain-Min (hFE)	100
JESD-30 Code	R-PUFM-D3
Number of Elements	1
Number of Terminals	3
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	NPN
Qualification Status	Not Qualified
Surface Mount	NO
Terminal Form	SOLDER LUG
Terminal Position	UPPER
Transistor Application	SWITCHING
Transistor Element Material	SILICON
