GT25J101 データシート

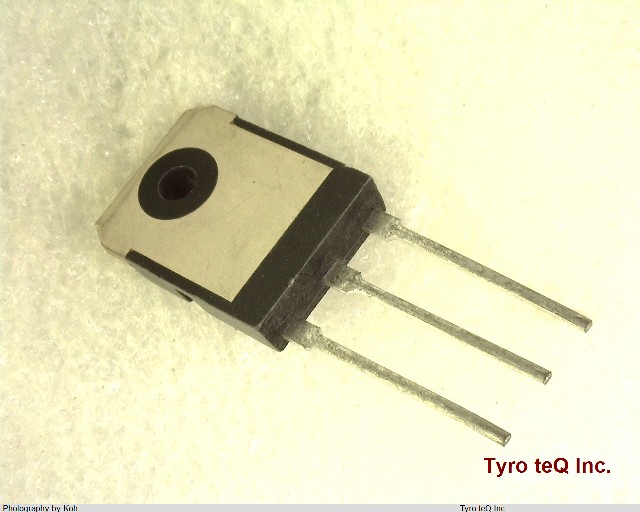

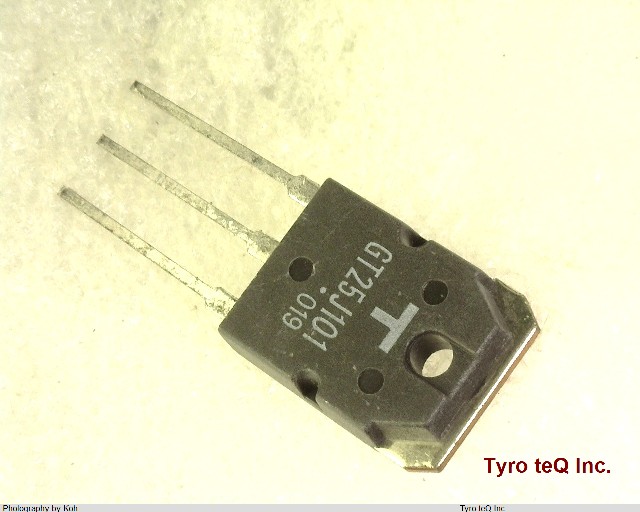

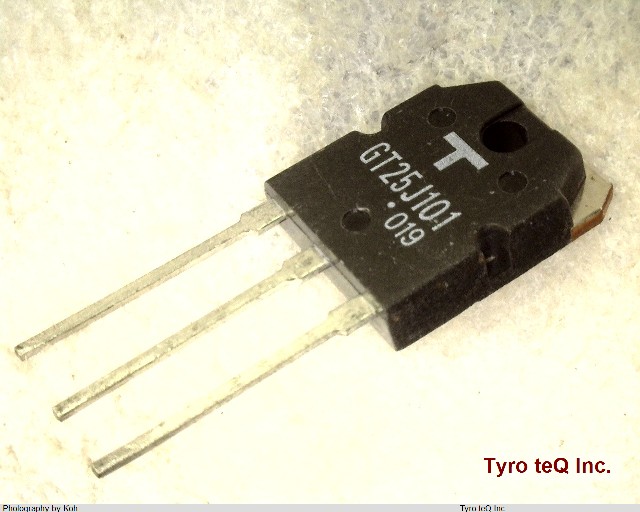

Name: GT25J101
Brand: TOSHIBA
SKU: 170003676-0000-0000-0000

GT25J101 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

GT25J101 の詳細情報

型番	GT25J101
メーカー	TOSHIBA
種別	バイポーラトランジスタ
データシート
Additional Feature	HIGH SPEED
Case Connection	COLLECTOR
Collector Current-Max (IC)	25 A
Collector-emitter Voltage-Max	600 V
Configuration	SINGLE
Fall Time-Max (tf)	350 ns
Gate-emitter Thr Voltage-Max	6 V
Gate-emitter Voltage-Max	20 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	150 W
Power Dissipation-Max (Abs)	150 W
Qualification Status	Not Qualified
Rise Time-Max (tr)	600 ns
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	MOTOR CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	500 ns
Turn-on Time-Nom (ton)	400 ns
VCEsat-Max	4 V
