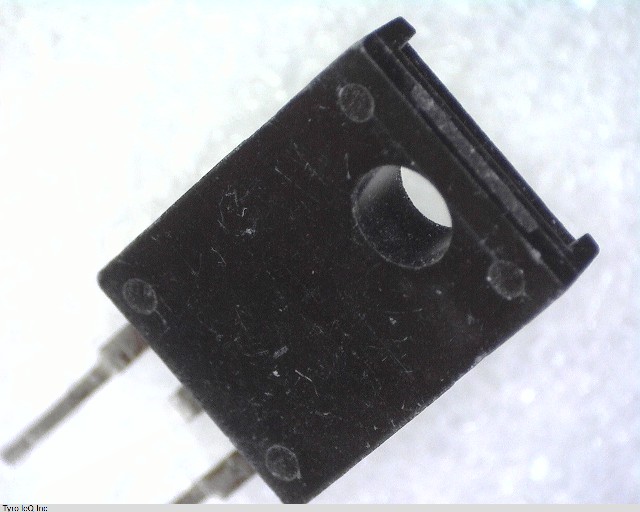

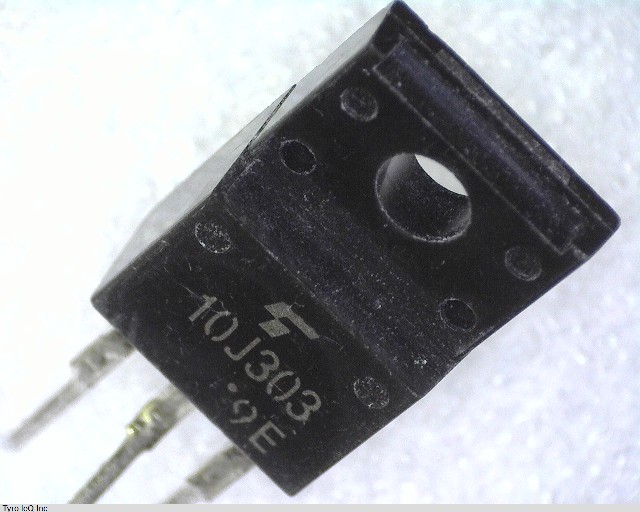

GT10J303 データシート

Name: GT10J303
Brand: TOSHIBA
SKU: 170048440-0000-0000-0000

GT10J303 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

バイポーラトランジスタ | ストロボフラッシュ用IGBT|パッケージ : TO-220SIS

GT10J303 の詳細情報

型番	GT10J303
メーカー	TOSHIBA
種別	バイポーラトランジスタ
データシート
Additional Feature	HIGH SPEED
Case Connection	ISOLATED
Collector Current-Max (IC)	10 A
Collector-emitter Voltage-Max	600 V
Configuration	SINGLE WITH BUILT-IN DIODE
Fall Time-Max (tf)	300 ns
Gate-emitter Voltage-Max	20 V
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	30 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	500 ns
Turn-on Time-Nom (ton)	400 ns
