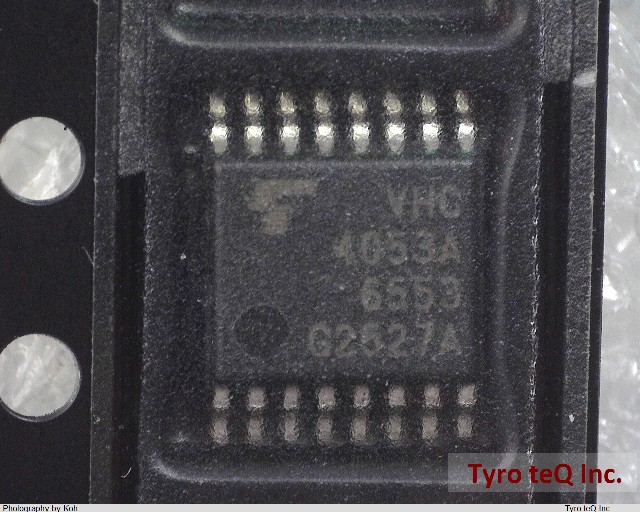

74VHC4053AFT

Name: 74VHC4053AFT
Brand: TOSHIBA
SKU: 80168474-0000-0000-0000

74VHC4053AFT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

74VHC4053AFT の詳細情報

型番	74VHC4053AFT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
IBIS	IBIS
IO (Min)(mA)
JESD-30 Code	R-PDSO-G16
Length	5 mm
Number of Channels	2
Number of Functions	3
Number of Terminals	16
Off-state Isolation-Nom	45 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	86 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	1.2 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Switch-off Time-Max	25 ns
Switch-on Time-Max	25 ns
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	4.4 mm
tpd_tpz (Typ.)(nsec)	1.6
グループ	TC74VHC
ピン数	16
回路数	3
機能1	Multiplexer
機能2	2-Channel Analog Multiplexer
面実装区分	Y
