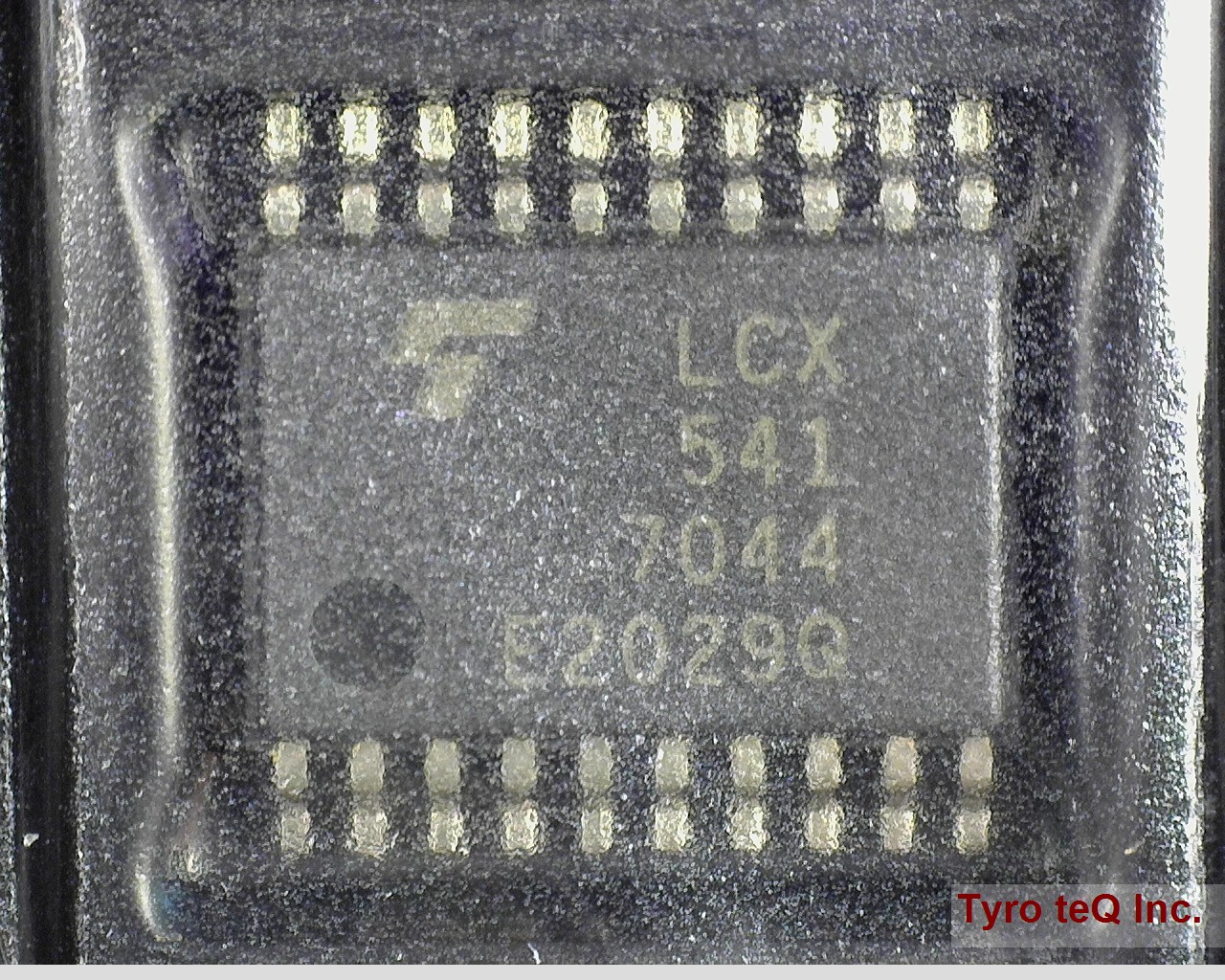

74LCX541FT

Name: 74LCX541FT
Brand: TOSHIBA
SKU: 80167987-0000-0000-0000

74LCX541FT - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

74LCX541FT の詳細情報

型番	74LCX541FT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
Additional Feature	WITH DUAL OUTPUT ENABLE
Family	LVC/LCX/Z
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G20
Length	6.5 mm
Logic IC Type	BUS DRIVER
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	25 ns
Seated Height-Max	1.2 mm
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	3.6
VCC (Min)(V)	1.65
Width	4.4 mm
tpd_tpz (Typ.)(nsec)
グループ	TC74LCX
ピン数	20
回路数	8
機能1	Gate
機能2	Bus Buffer
面実装区分	Y
