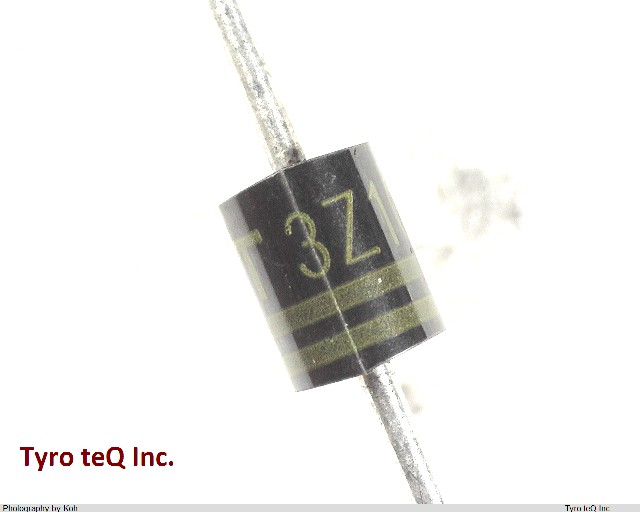

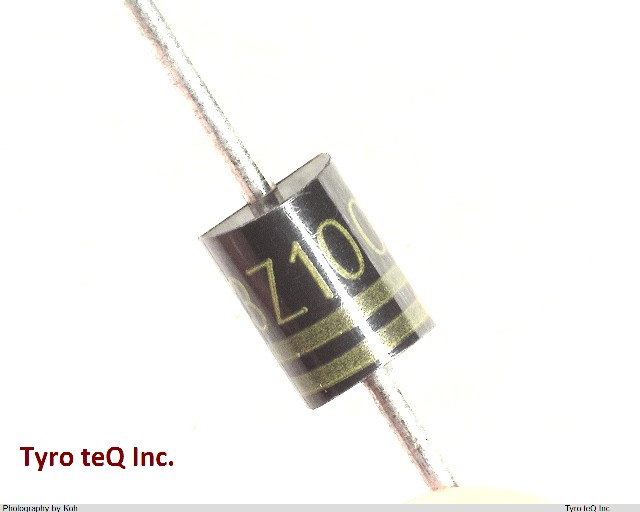

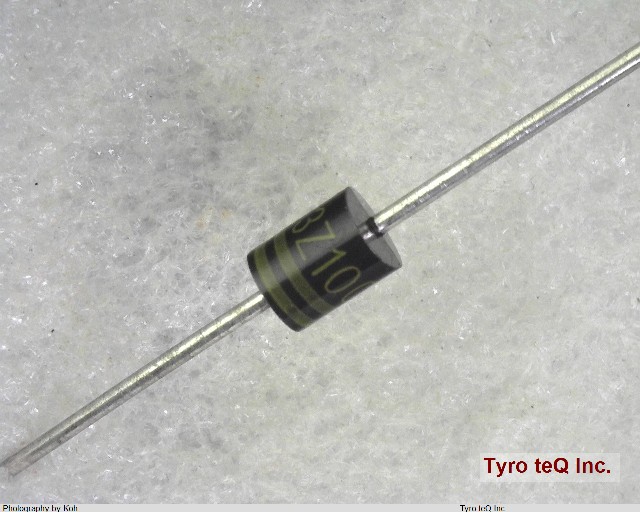

3Z100 データシート

Name: 3Z100
Brand: TOSHIBA
SKU: 40186669-0000-0000-0000

3Z100 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

3Z100 の詳細情報

型番	3Z100
メーカー	TOSHIBA
データシート
Breakdown Voltage-Max	110 V
Breakdown Voltage-Min	90 V
Breakdown Voltage-Nom	100 V
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
Dynamic Impedance-Max	300 ohm
JEDEC-95 Code	DO-201AD
JESD-30 Code	O-PALF-W2
JESD-609 Code	e0
Non-rep Peak Rev Power Dis-Max	1500 W
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	3 W
Qualification Status	Not Qualified
Reference Voltage-Nom	100 V
Reverse Current-Max	10 uA
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	AVALANCHE
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tol-Max	10 %
Working Test Current	3 mA
