2SK246 データシート

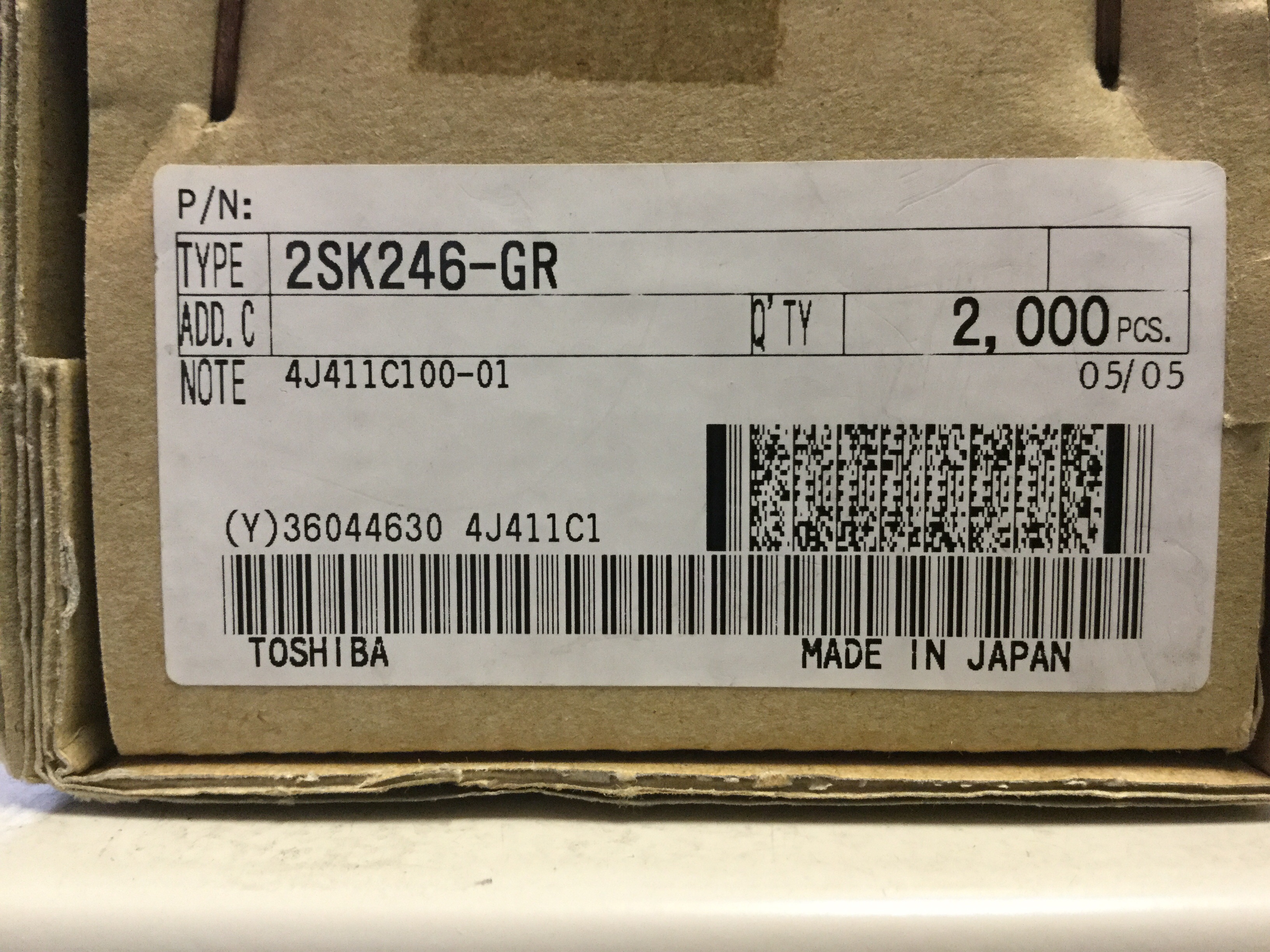

Name: 2SK246
Brand: TOSHIBA
SKU: 30252045-0000-0000-0000

2SK246 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

MOSFET,接合形FET

2SK246 の詳細情報

型番	2SK246
メーカー	TOSHIBA
種別	MOSFET,接合形FET
データシート
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	22.5 mJ
Case Connection	DRAIN
Configuration	SINGLE
DS Breakdown Voltage-Min	30 V
Drain Current-Max (Abs) (ID)	2 A
Drain Current-Max (ID)	2 A
Drain-source On Resistance-Max	0.012 ohm
FET Technology	JUNCTION
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	DEPLETION MODE
Operating Temperature-Max	125 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	30 W
Power Dissipation-Max (Abs)	0.3 W
Pulsed Drain Current-Max (IDM)	20 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	FLAT
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	70 ns
Turn-on Time-Max (ton)	45 ns
