2SK241-Y データシート

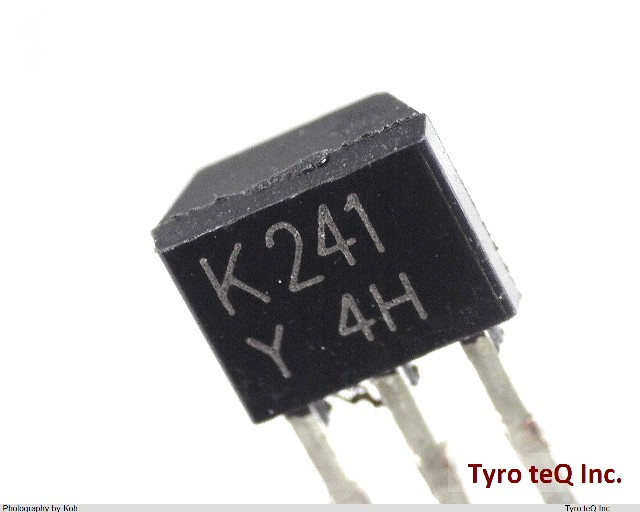

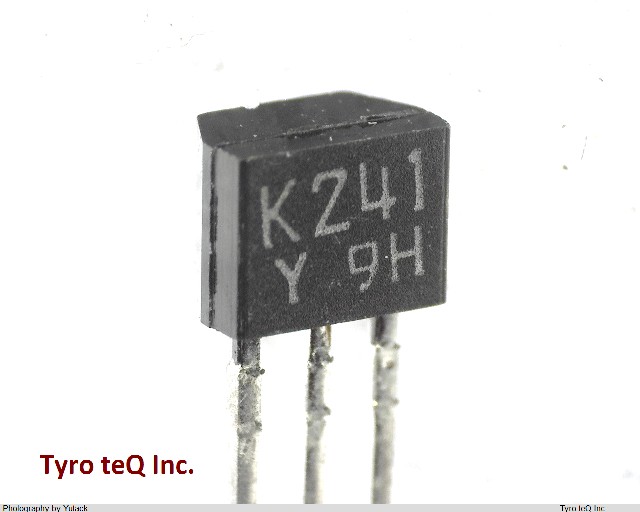

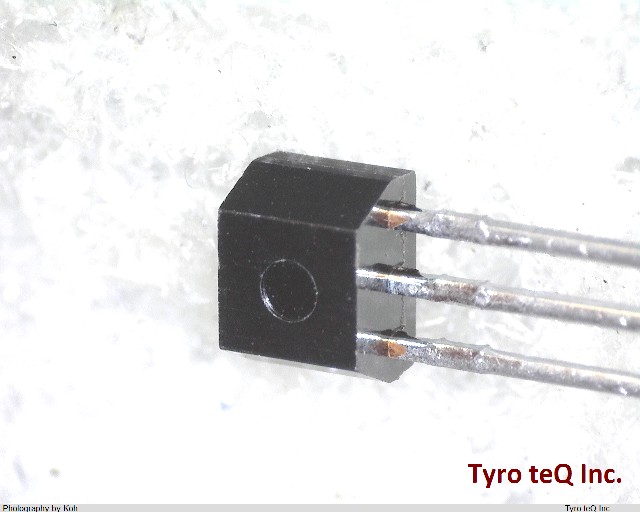

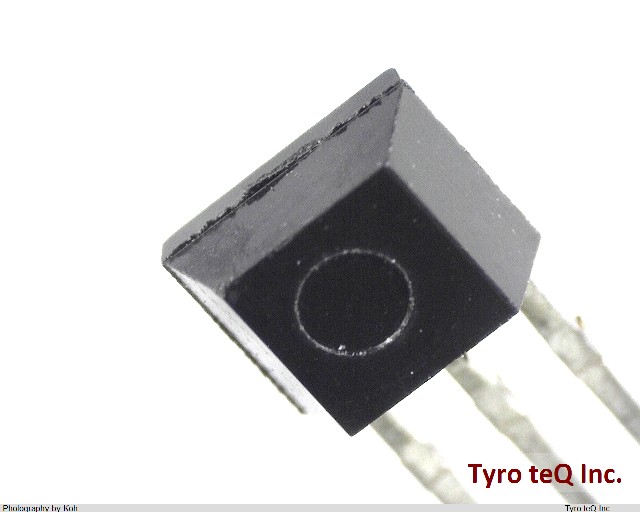

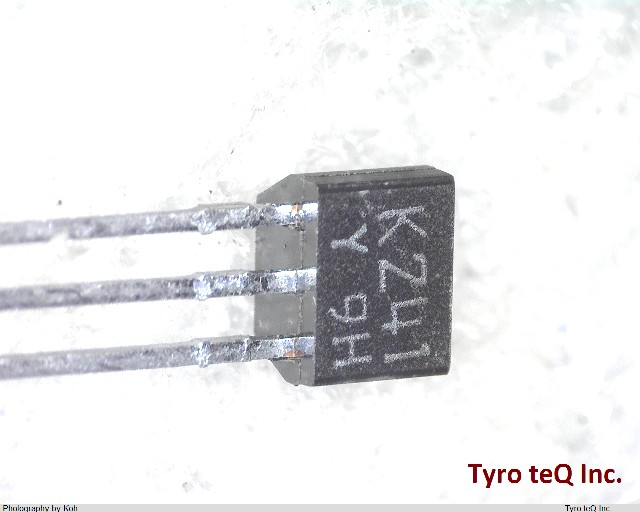

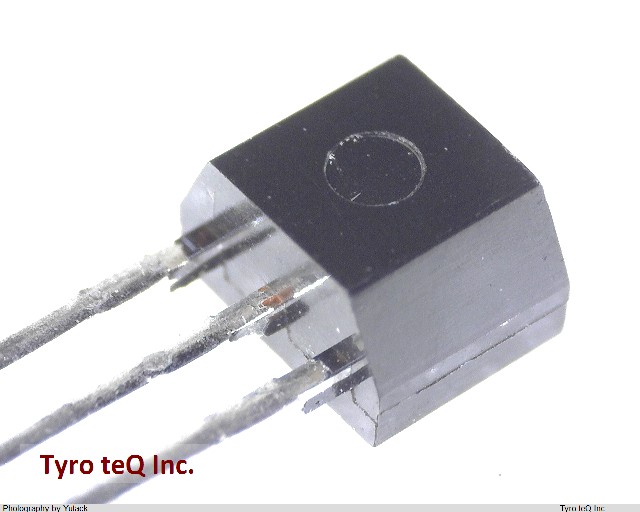

Name: 2SK241-Y
Brand: TOSHIBA
SKU: 30083194-0000-0000-0000

2SK241-Y - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

MOSFET,接合形FET

2SK241-Y の詳細情報

型番	2SK241-Y
メーカー	TOSHIBA
種別	MOSFET,接合形FET
データシート
Additional Feature	CASCODE MOS
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	20 V
Drain Current-Max (Abs) (ID)	0.03 A
Drain Current-Max (ID)	0.03 A
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	0.05 pF
Highest Frequency Band	VERY HIGH FREQUENCY BAND
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Mode	DEPLETION MODE
Operating Temperature-Max	125 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	0.2 W
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
