2SK2376 データシート

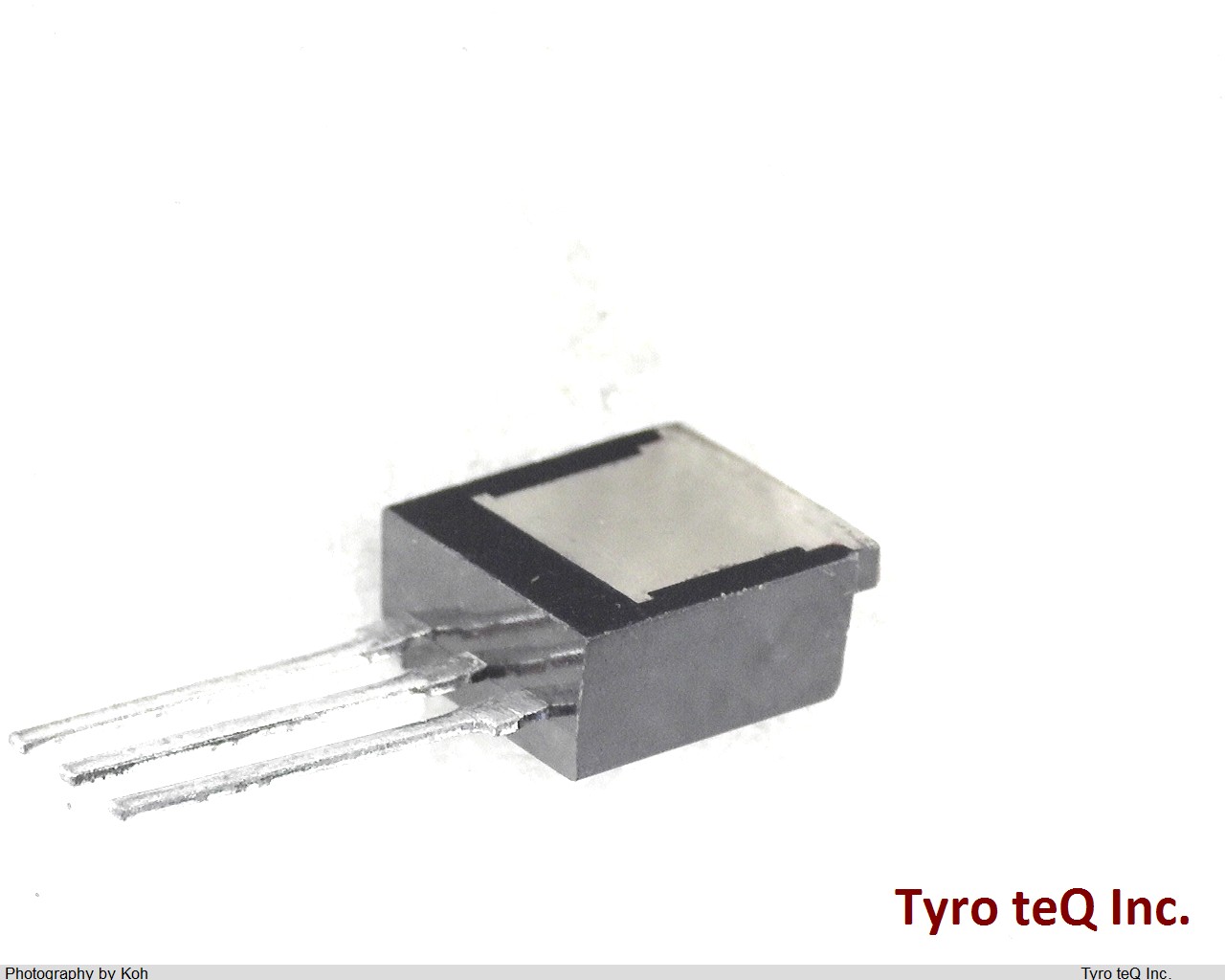

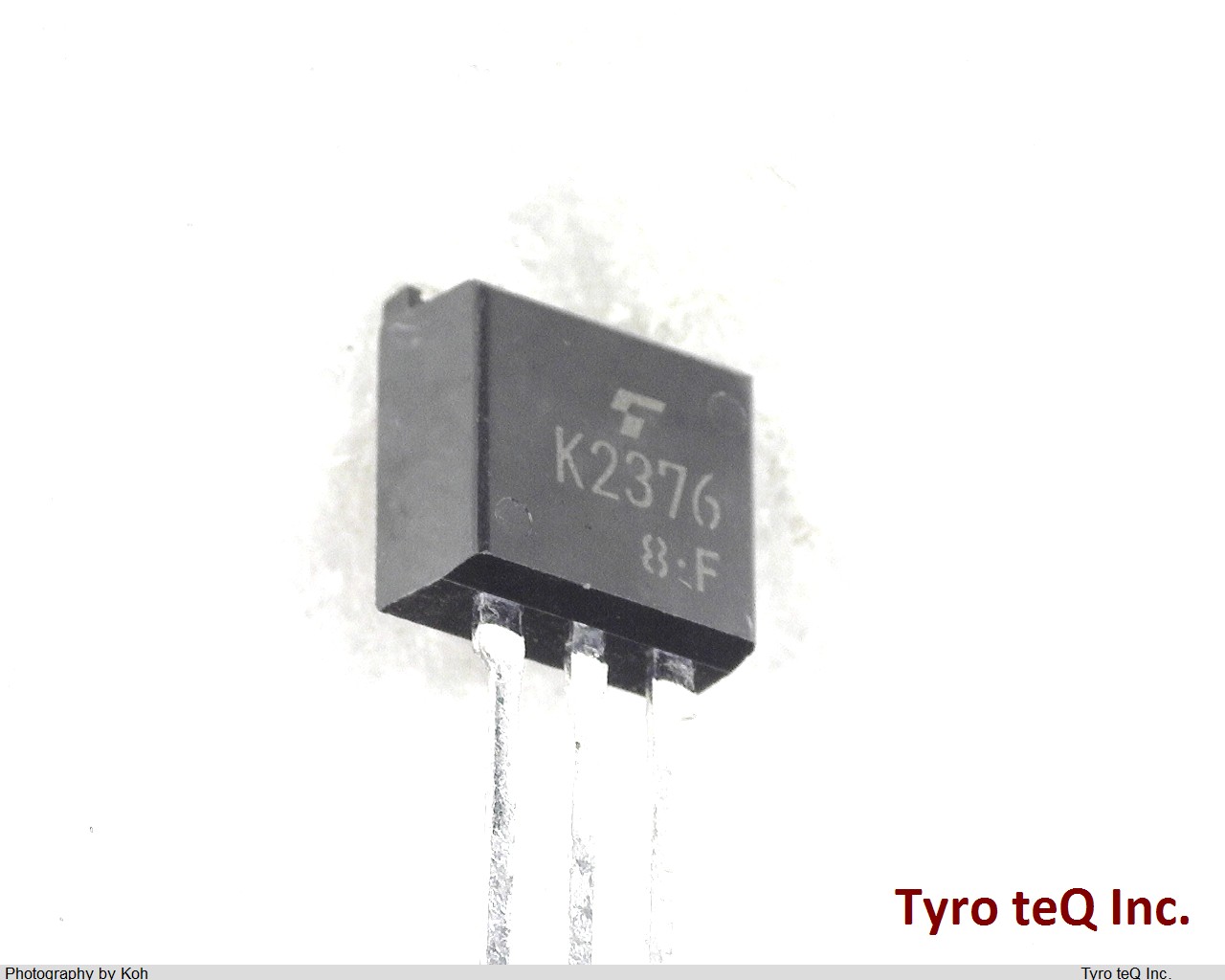

Name: 2SK2376
Brand: TOSHIBA
SKU: 30003098-0000-0000-0000

2SK2376 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

MOSFET,接合形FET

2SK2376 の詳細情報

型番	2SK2376
メーカー	TOSHIBA
種別	MOSFET,接合形FET
データシート
Avalanche Energy Rating (Eas)	701 mJ
Case Connection	DRAIN
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	45 A
Drain Current-Max (ID)	45 A
Drain-source On Resistance-Max	0.025 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSIP-T3
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	100 W
Pulsed Drain Current-Max (IDM)	180 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
