2SK1771 データシート

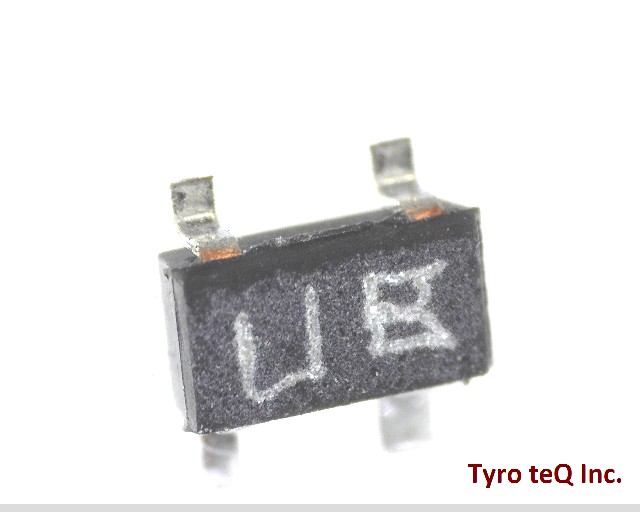

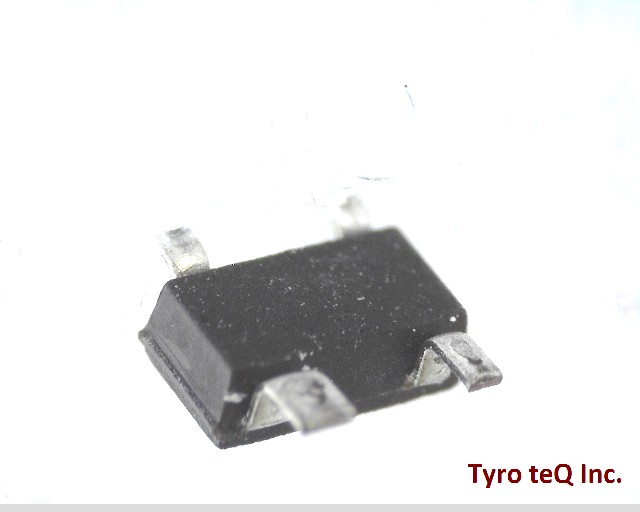

Name: 2SK1771
Brand: TOSHIBA
SKU: 30115360-0000-0000-0000

2SK1771 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

MOSFET,接合形FET

2SK1771 の詳細情報

型番	2SK1771
メーカー	TOSHIBA
種別	MOSFET,接合形FET
データシート
Additional Feature	LOW NOISE
Case Connection	SOURCE
Configuration	SINGLE
DS Breakdown Voltage-Min	12.5 V
Drain Current-Max (Abs) (ID)	0.03 A
Drain Current-Max (ID)	0.03 A
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	0.8 pF
Highest Frequency Band	VERY HIGH FREQUENCY BAND
JESD-30 Code	R-PDSO-G4
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	4
Operating Mode	DEPLETION MODE
Operating Temperature-Max	125 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	0.15 W
Power Gain-Min (Gp)	18 dB
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
