2SC510 データシート

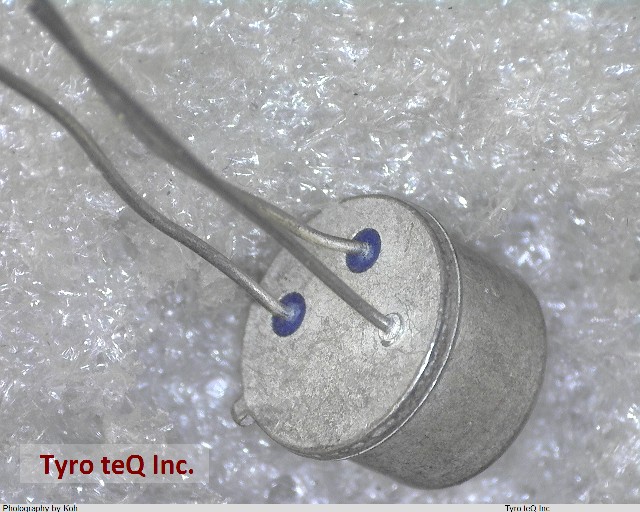

Name: 2SC510
Brand: TOSHIBA
SKU: 30123981-0000-0000-0000

2SC510 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SC510 の詳細情報

型番	2SC510
メーカー	TOSHIBA
種別	トランジスタ
データシート
Case Connection	COLLECTOR
Collector Current-Max (IC)	0.03 A
Collector-base Capacitance-Max	0.9 pF
Collector-emitter Voltage-Max	10 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	15
Highest Frequency Band	ULTRA HIGH FREQUENCY BAND
JESD-30 Code	R-PDSO-F3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	0.1 W
Power Dissipation-Max (Abs)	0.1 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	FLAT
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	10 MHz
Turn-off Time-Max (toff)	1800 ns
Turn-on Time-Max (ton)	300 ns
VCEsat-Max	0.5 V
