2SC497 データシート

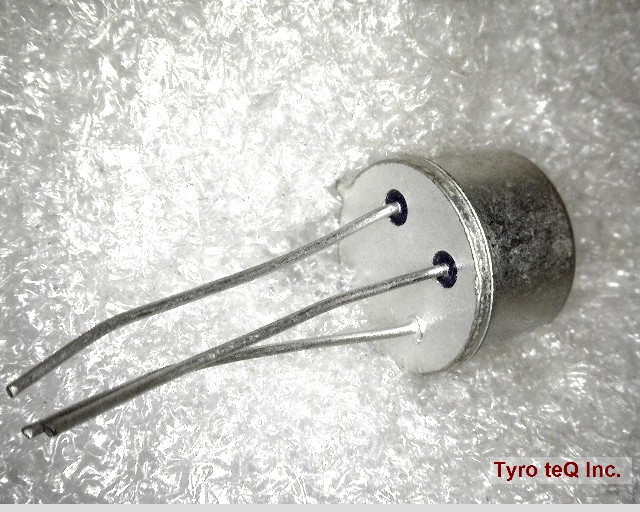

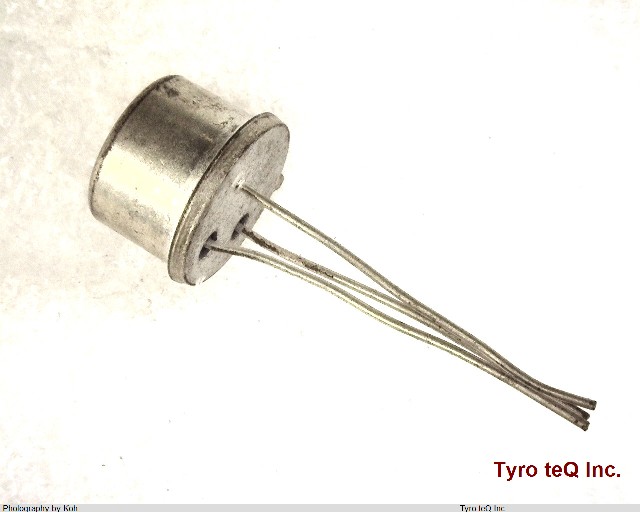

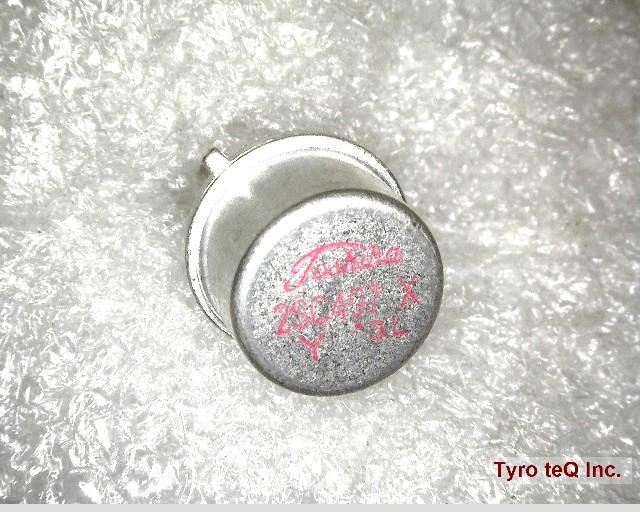

Name: 2SC497
Brand: TOSHIBA
SKU: 400054135-0000-0000-0000

2SC497 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

2SC497 の詳細情報

型番	2SC497
メーカー	TOSHIBA
種別	トランジスタ
データシート
Additional Feature	HIGH RELIABILITY
Case Connection	COLLECTOR
Collector Current-Max (IC)	0.015 A
Collector-emitter Voltage-Max	20 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	10
Highest Frequency Band	ULTRA HIGH FREQUENCY BAND
JEDEC-95 Code	TO-39
JESD-30 Code	O-MBCY-W3
JESD-609 Code	e0
Moisture Sensitivity Level	2
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Package Body Material	METAL
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	10 W
Power Dissipation-Max (Abs)	0.6 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	FLAT
Terminal Position	BOTTOM
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	50 MHz
Turn-off Time-Max (toff)	1700 ns
Turn-on Time-Max (ton)	300 ns
VCEsat-Max	0.3 V
