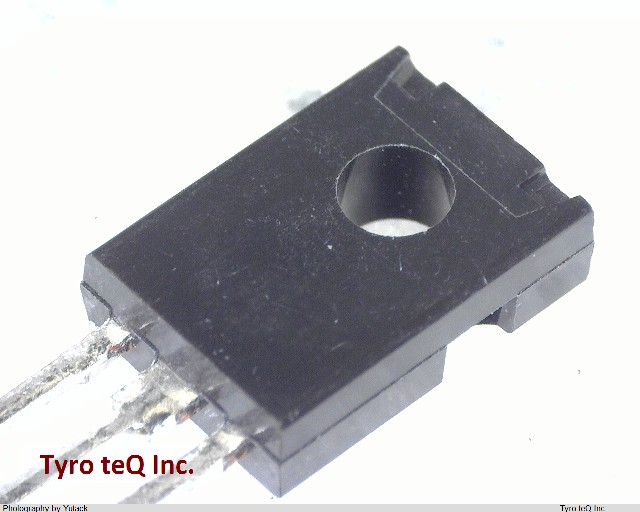

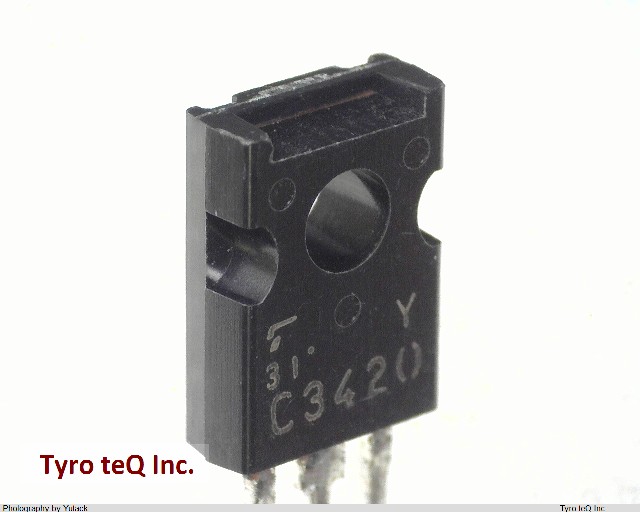

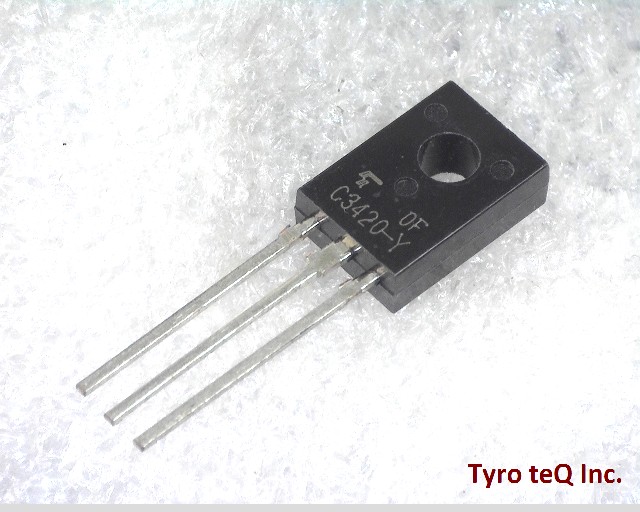

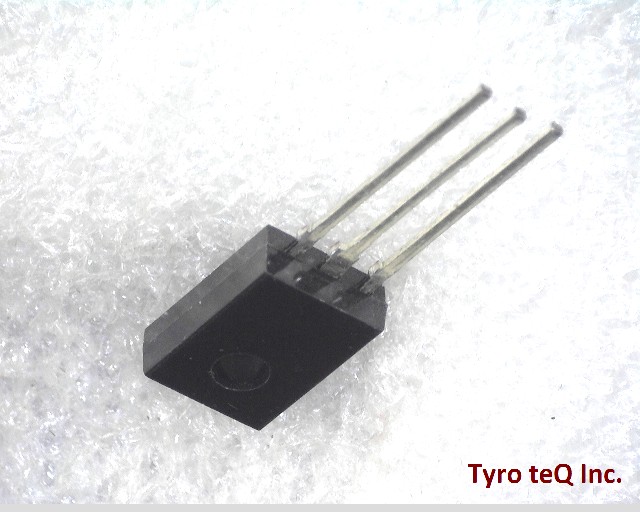

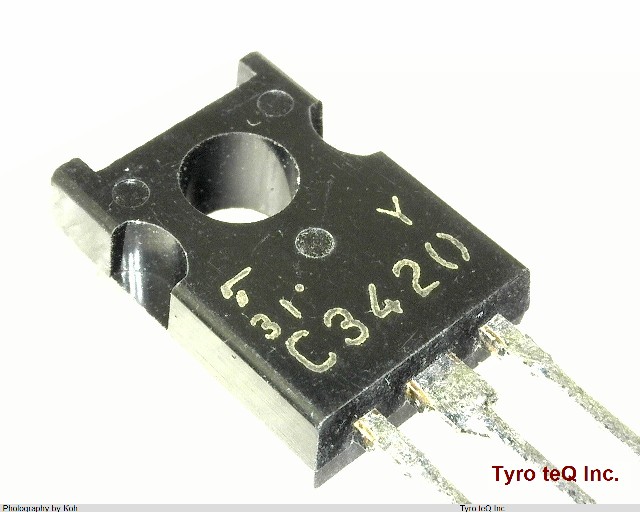

2SC3420-Y データシート

Name: 2SC3420-Y
Brand: TOSHIBA
SKU: 30084565-0000-0000-0000

2SC3420-Y - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SC3420-Y の詳細情報

型番	2SC3420-Y
メーカー	TOSHIBA
種別	トランジスタ
データシート
Case Connection	COLLECTOR
Collector Current-Max (IC)	5 A
Collector-base Capacitance-Max	40 pF
Collector-emitter Voltage-Max	20 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	140
JEDEC-95 Code	TO-126
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	1.5 W
Power Dissipation-Max (Abs)	1.5 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	100 MHz
VCEsat-Max	1 V
