2SC3303-O データシート

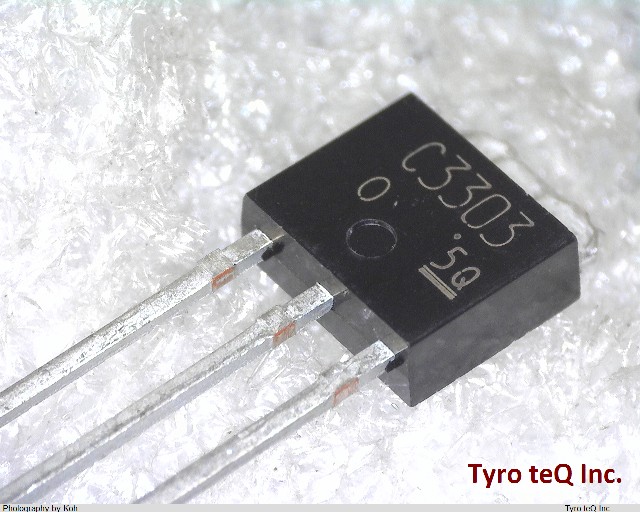

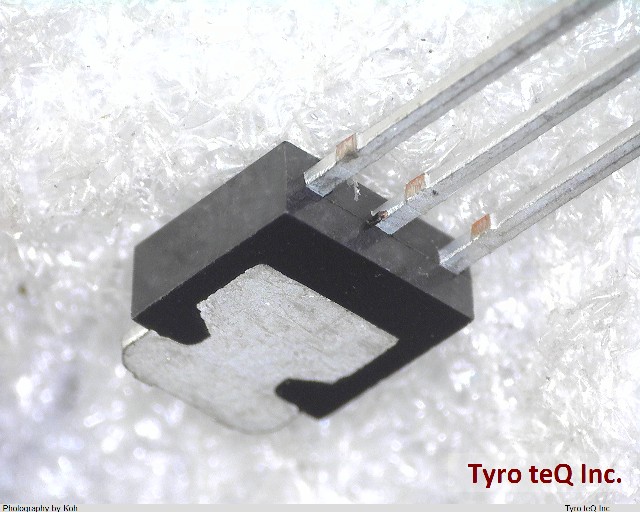

Name: 2SC3303-O
Brand: TOSHIBA
SKU: 30114318-0000-0000-0000

2SC3303-O - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SC3303-O の詳細情報

型番	2SC3303-O
メーカー	TOSHIBA
種別	トランジスタ
データシート
Case Connection	COLLECTOR
Collector Current-Max (IC)	5 A
Collector-base Capacitance-Max	80 pF
Collector-emitter Voltage-Max	80 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	70
JEDEC-95 Code	TO-251
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	1 W
Power Dissipation-Max (Abs)	1 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	20 MHz
VCEsat-Max	0.4 V
