2SC2883 データシート

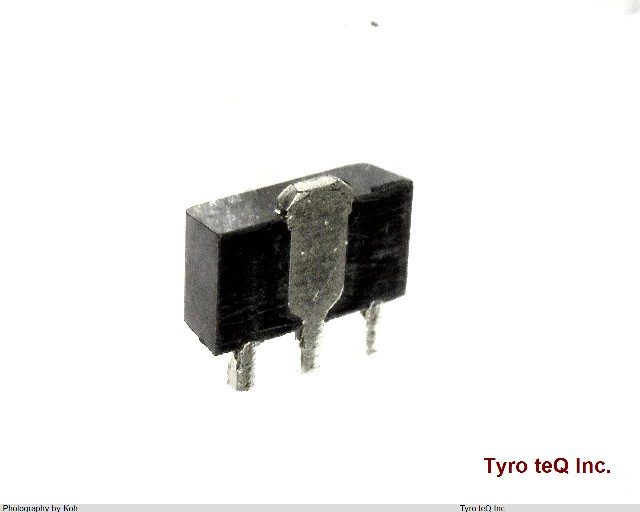

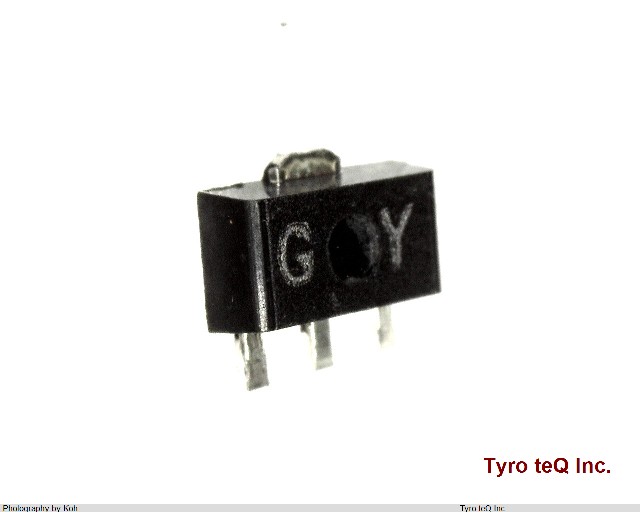

Name: 2SC2883
Brand: TOSHIBA
SKU: 400040636-0000-0000-0000

2SC2883 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

2SC2883 の詳細情報

型番	2SC2883
メーカー	TOSHIBA
種別	トランジスタ
データシート
Case Connection	COLLECTOR
Collector Current-Max (IC)	1.5 A
Collector-base Capacitance-Max	40 pF
Collector-emitter Voltage-Max	30 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	100
JESD-30 Code	R-PSSO-F3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	1 W
Power Dissipation-Max (Abs)	0.5 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	Matte Tin (Sn)
Terminal Form	FLAT
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	120 MHz
VCEsat-Max	2 V
