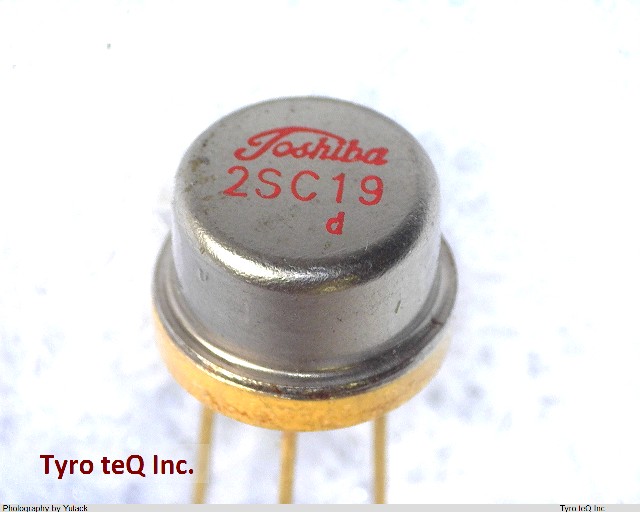

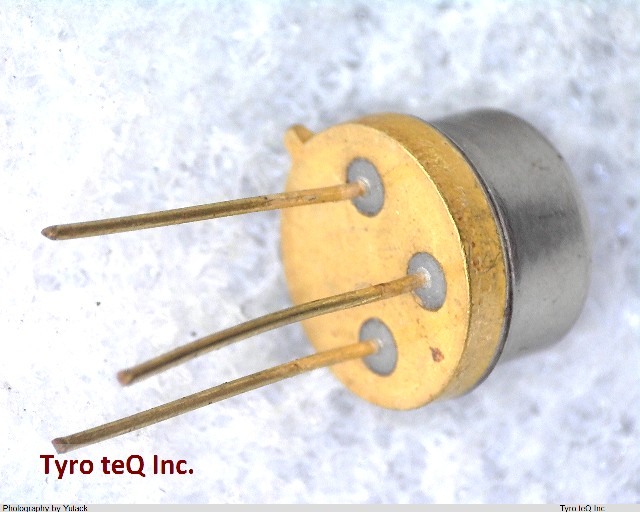

2SC19

Name: 2SC19
Brand: TOSHIBA
SKU: 30000346-0000-0000-0000

2SC19 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SC19 の詳細情報

型番	2SC19
メーカー	TOSHIBA
種別	トランジスタ
Additional Feature	HIGH RELIABILITY
Case Connection	COLLECTOR
Collector Current-Max (IC)	0.02 A
Collector-base Capacitance-Max	1 pF
Collector-emitter Voltage-Max	12 V
Configuration	COMMON EMITTER, 2 ELEMENTS
DC Current Gain-Min (hFE)	8
Highest Frequency Band	L BAND
JEDEC-95 Code	TO-3
JESD-30 Code	O-MBCY-W3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	225
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	0.3 W
Power Dissipation-Max (Abs)	0.1 W
Power Gain-Min (Gp)	3.7 dB
Qualification Status	Not Qualified
Sub Category	BIP RF Small Signal
Surface Mount	NO
Terminal Finish	Matte Tin (Sn)
Terminal Form	FLAT
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	4.5 MHz
VCEsat-Max	0.25 V
