2SC1815-GR データシート

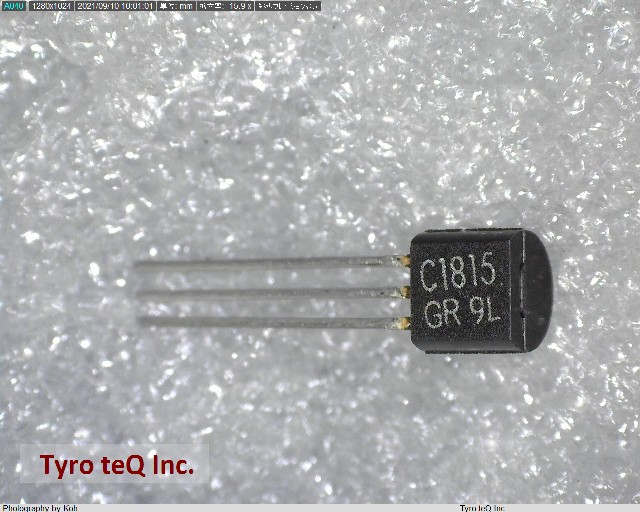

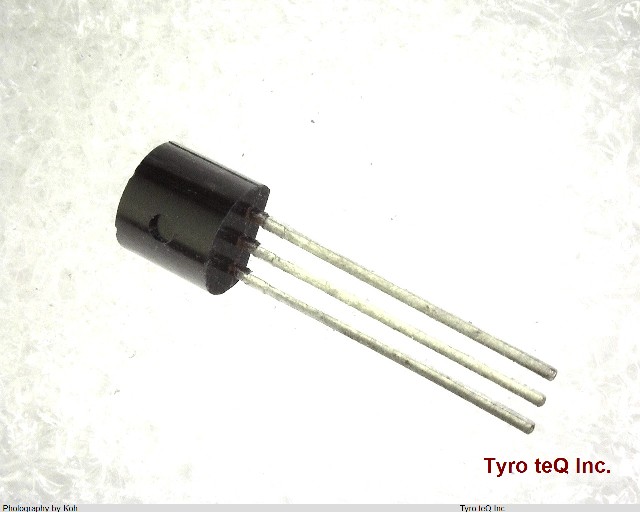

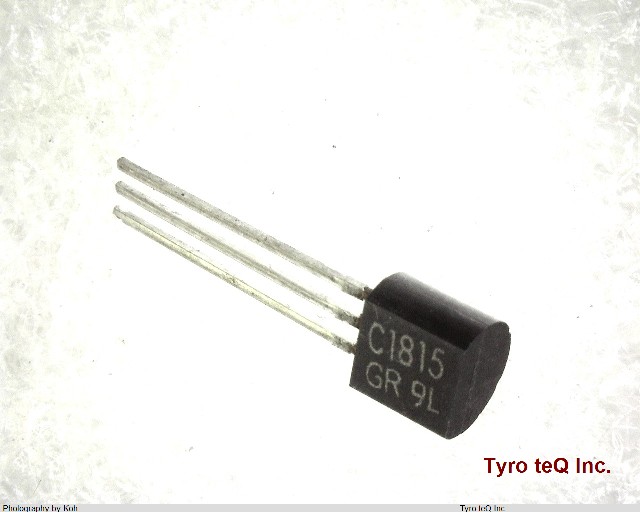

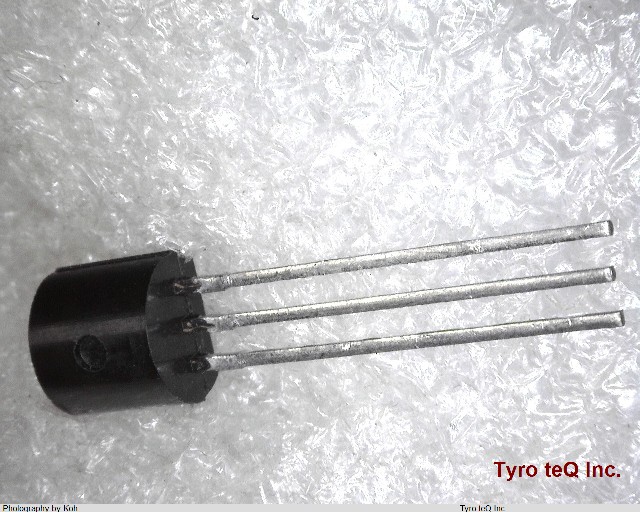

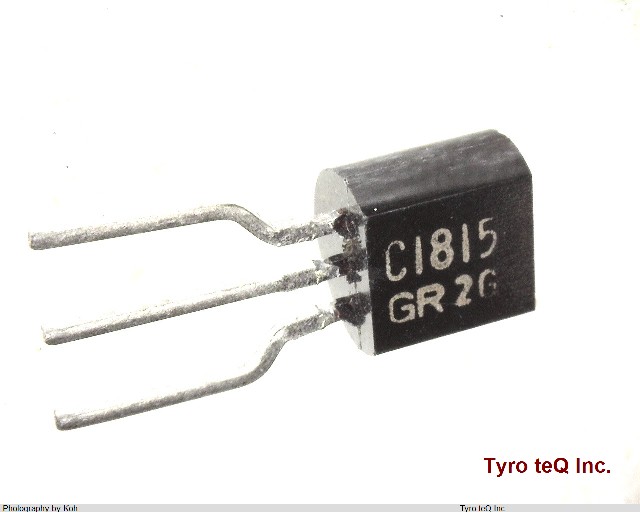

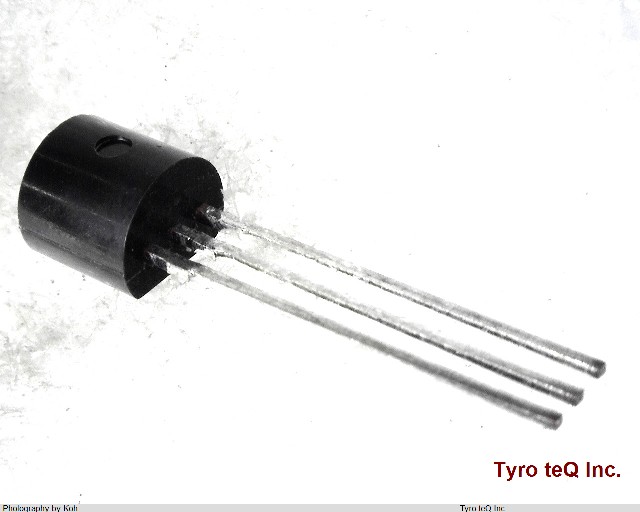

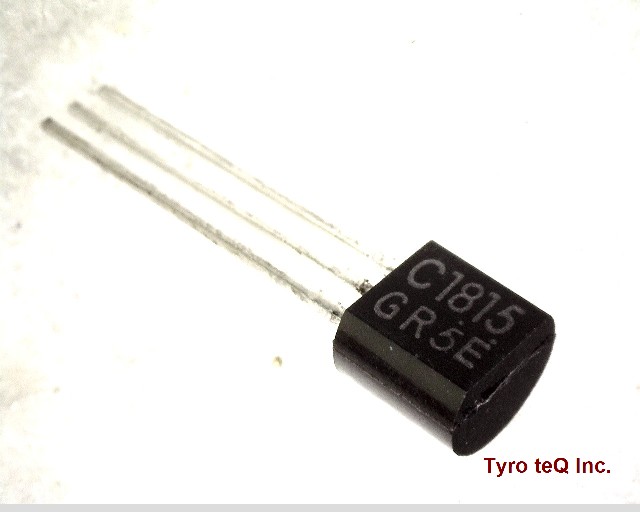

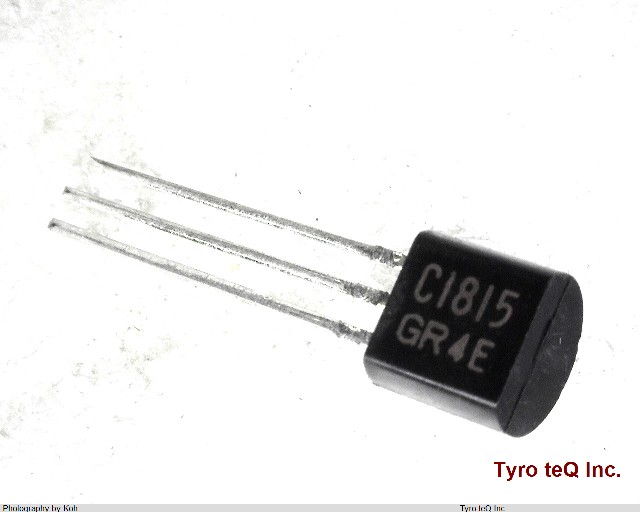

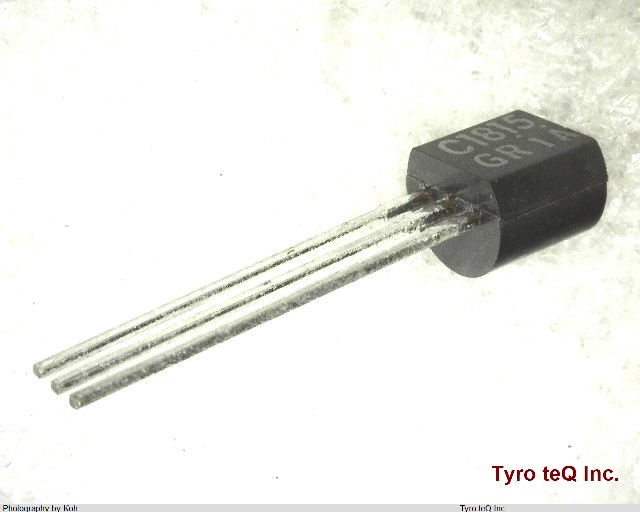

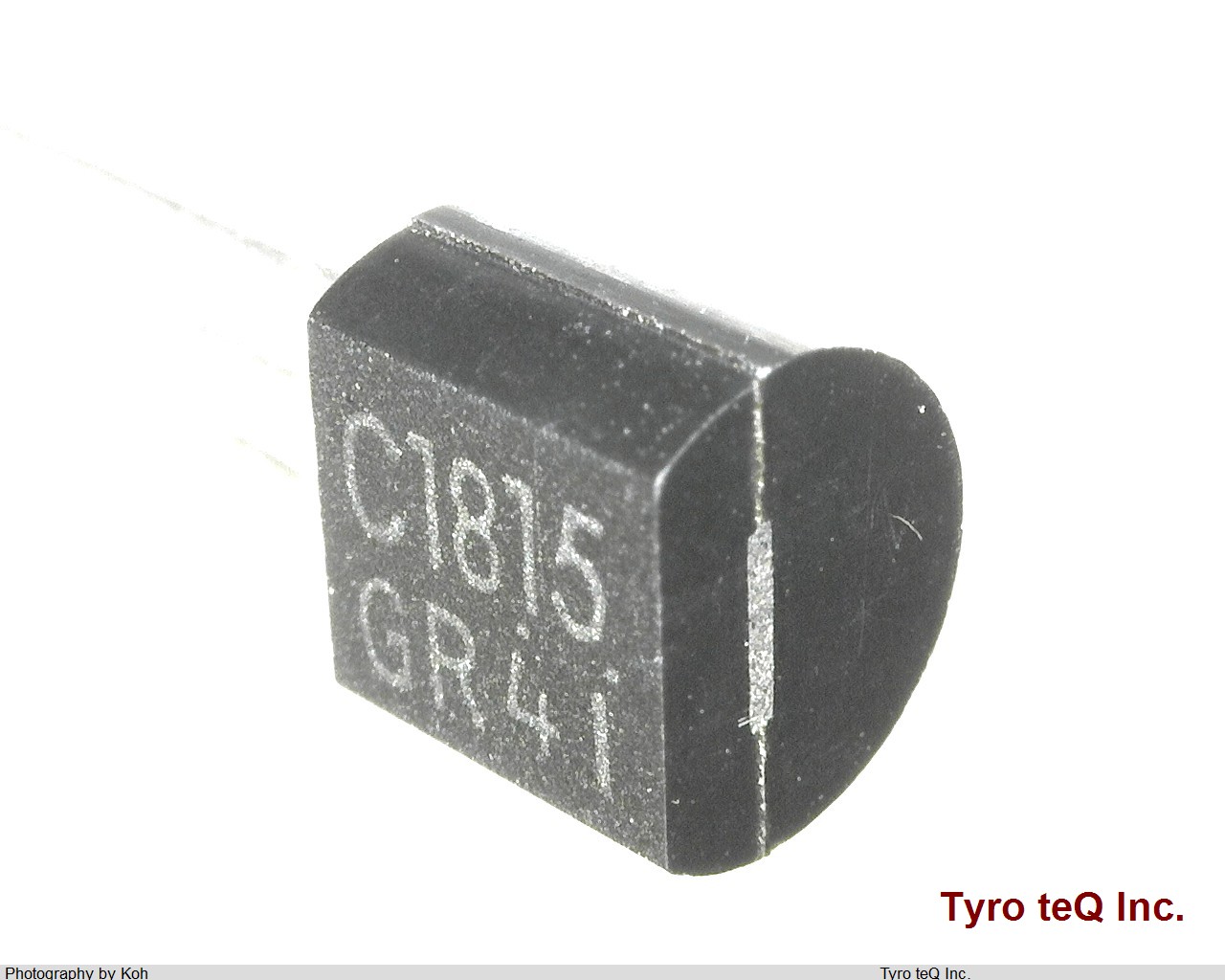

Name: 2SC1815-GR
Brand: TOSHIBA
SKU: 30000334-0000-0000-0000

2SC1815-GR - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SC1815-GR の詳細情報

型番	2SC1815-GR
メーカー	TOSHIBA
種別	トランジスタ
データシート
Additional Feature	LOW NOISE
Collector Current-Max (IC)	0.1 A
Collector-base Capacitance-Max	3 pF
Collector-emitter Voltage-Max	40 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	25
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	0.4 W
Power Dissipation-Max (Abs)	0.3 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	50 MHz
VCEsat-Max	0.25 V
